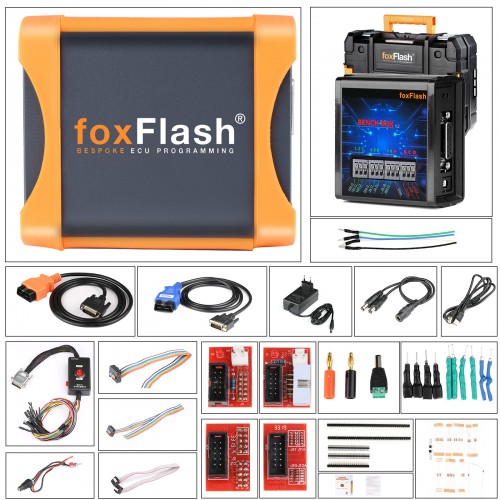

FoxFlash ECU Tool updates its functions on VAG TCU, Toyota Gen1, BMW MSV90, etc. in January.
*Connect to the Internet, everything will synchronize automatically

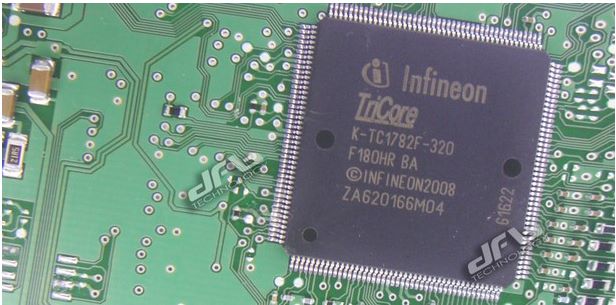

1.Bench Mode TRICORE TC1782
With this update you will be able to fully read and write:
- VAG GROUP VW-AUDI-SEAT-SKODA: MED17.5.21, MED17.5.25
- FORD: MED17.0.7
- NISSAN: EDC17 C84
- RENAULT: ME17.9.20, EDC17 C84
- TOYOTA: MED17.9.52, EDC17 C47
2.VAG TCU DQ250C/E/F OBD Virtual Read/Write-BENCH Read/Write
Supported TCUs:
- Temic DQ250C
- Temic DQ250E
- Temic DQ250F
Vehicles concerned:
- AUDI/SKODA/VAG 2.0 TSI/TFSI
- AUDI/SKODA/VAG 2.0 TDI CR
3.Toyota Denso Gen1 (76F00xx) OBD Read/Write
Hino 4.0 VVT-i 147ch
Lexus/Toyota 2.5 205ch
Lexus 200H (1.8 E-CVT) 99ch
Lexus 220d 177ch
Lexus 250 (GSE20) 200ch
Lexus 300 (3.0 V6) 204ch
Lexus 330 (3.3 V6) 230ch
Lexus 350 (3.5i V6) 275/300ch
Lexus 400h (3.3i V6) 272ch
Lexus 430 290ch
Lexus 450h (3.5i V6) 292/299ch
Lexus 460h (4.6 V8) 247ch
Lexus 600h (5.0 V8) 394ch
Toyota 1.0 (1KR-DE) 64ch
Toyota 1.3 VVT-i 87/100ch
Toyota 1.6 VVT-i 132ch
Toyota 1.8 VVT-i HSD/TS 99/129/133ch
Toyota 2.0 (1AZFE) 145ch
Toyota 2.0 D4-D 116/126ch
Toyota 2.0 DOHC 16v 156ch
Toyota 2.0i 150ch
Toyota 2.2 D4-D 136/150/177ch
Toyota 2.4 (2AZFE) 160ch
Toyota 2.5 205ch
Toyota 2.5 D4-D 101/125/144/150ch
Toyota 2.7i 161/188ch
Toyota 3.0 D4-D 172ch
Toyota 3.5 (2GRFE) 270ch
Toyota 3.5i V6 266ch
Toyota 4.0 V6 239/249/260/273ch
Toyota 4.3 VVT-i 300ch
Toyota 4.5 D4-D 272ch
Toyota 4.5 V8 D4-D 198ch
Toyota 4.6i VVT-i D-45 314ch
Toyota 4.7 V8 280/288ch
Toyota 5.0 VVT-i 295ch
Toyota 5.7i VVT-i D-45 286ch
Lexus GS 300
Lexus GS 350
Lexus IS-F
Toyota Prius
Toyota RAV 4
Toyota Sequoia
Toyota Tacoma
Toyota Tundra
Toyota Verso
Toyota Auris
Toyota Auris
Toyota Avensis
Toyota Camry
Toyota Corolla (Verso)
Toyota Crown
Toyota Dyna
Toyota Estima
Toyota FJ Cruiser
Toyota Fortuner
Toyota Hilux
Toyota Land Cruiser
Toyota Mark X
Toyota Optimo
* Please connect the battery charger during operation via OBD
4.ECU Update New Protocols for Bentley Skoda (BOSCH)
BENCH /BOOT/OBD
- BAIC Bosch ME17.8.8 TC1728: Senova x25 1.5 VTI (2016), Senova X35 1.5 VTI (2016), BJ20 1.5 VTI (2016)(BOOT)
- Honda Bosch ME17.9.55 TC1724: City/Jazz/BRIO/FIT 1.2L i-VTEC (2014)(BOOT)
- Mahindra Bosch EDC17C53 TC1767: XUV500 2.2 CRD (2014)(BENCH BOOT)
- Bentley Bosch MG1CS163 TC298: Continental GT W12 6.0 (2018)(BENCH)
- Volvo Bosch EDC16C34 MPC562: V70/S80 1.6D (2010)(OBD BENCH JTAG)
- Skoda Bosch MED17.1.27: Fabia 1.0 TSI (2017)(OBD BENCH BOOT)
- Bentley Bosch MED17.1.62: Bentayga W12 6.0 (2016)(BENCH BOOT)
5.BMW MSV90 Protocols BOOT Mode
BOOT
SIEMENS
MSV90 TC1796
Cars:
- BMW 5 Series F10 – 530i N53B30A/N52B30B
- BMW 5 Series F11 – 530i N53B30A/N52B30B
- BMW 7 Series F01 – 730Li N52B30A/N52B30B
- BMW 7 Series F02 – 730Li N52B30A/N52B30B
- BMW X3 Series F25 – 28i xDrive N52B30A/N52B30B
6.Delphi DCM6.2AP DCM6.2A DCM6.2C DCM6.2V
DCM6.2A/C
OBD Read
OBD Write
JTAG_BOOT
DCM6.2APJTAG_BOOT
Hyundai
Audi
Citroen
Fiat
Kia
MAN
Peugeot
VW
Toyota
Ssangyong
