OBDSTAR P50 Add Steering Angle Sensor Repair

Steering Angle Sensor Repair Software is available in OBDSTAR P50 on Mar.7, 2024.

More 12 steering angle support crash data clear now.

Here we are going to show you how to use this new function.

Module: Toyota Rika 89245-12040

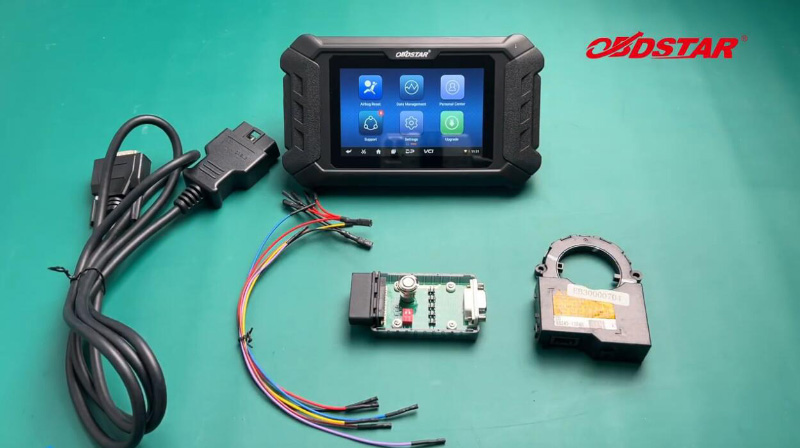

Tools:

OBDSTAR P50 Airbag Tool

P004 Cable

Instructions:

Turn on P50,

Go to

Airbag Reset>> 89245-12040 (Toyota Rika)

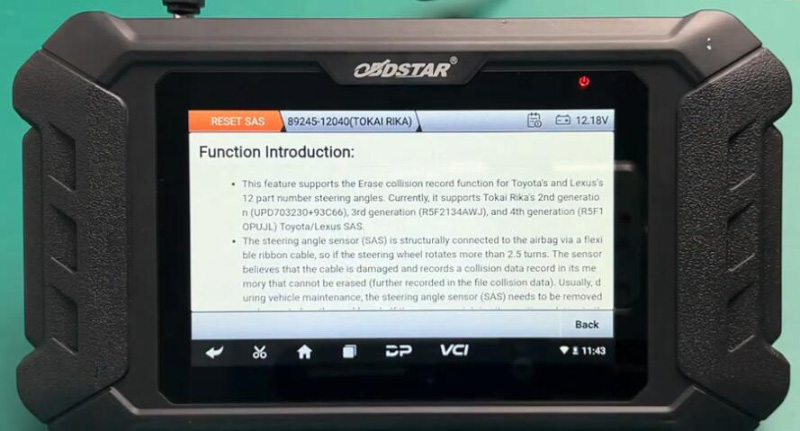

Select Guide to check out steps.

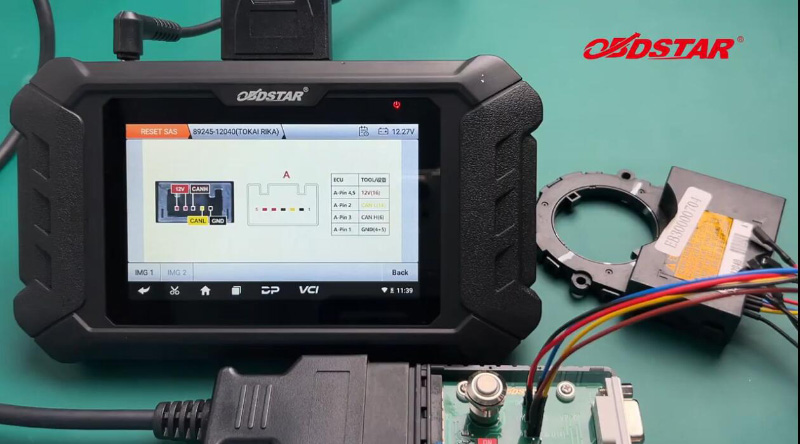

Select Pinout to check out wiring diagrams.

Connect P50 to module.

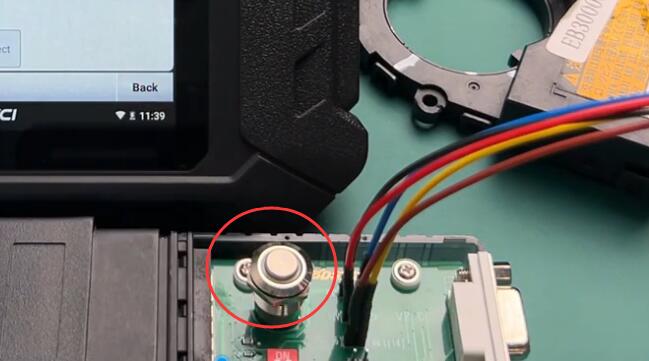

Turn on P004 adapter power button.

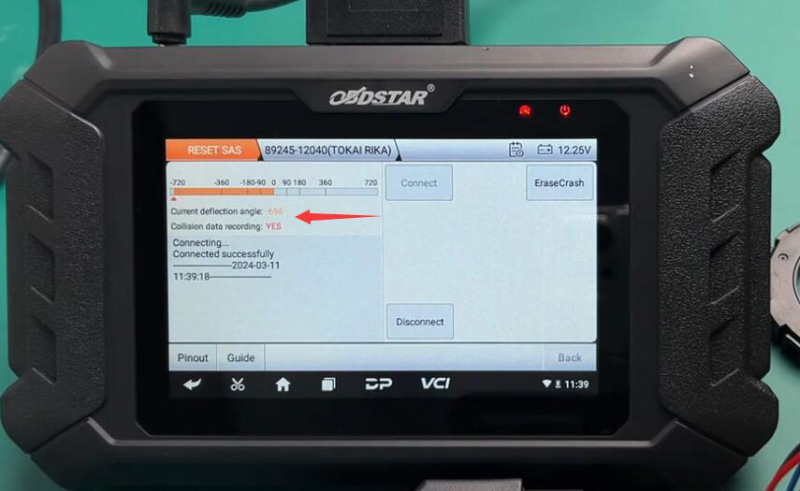

Connect ECU, and it will show crash data.

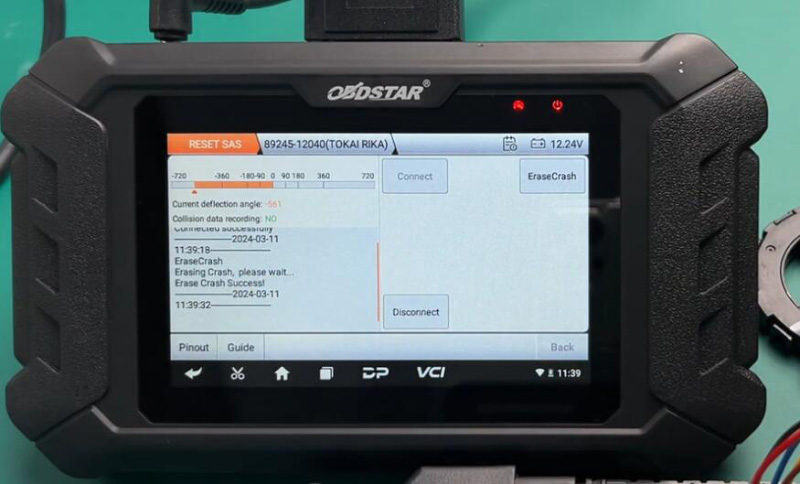

Select EraseCrash to clear data.

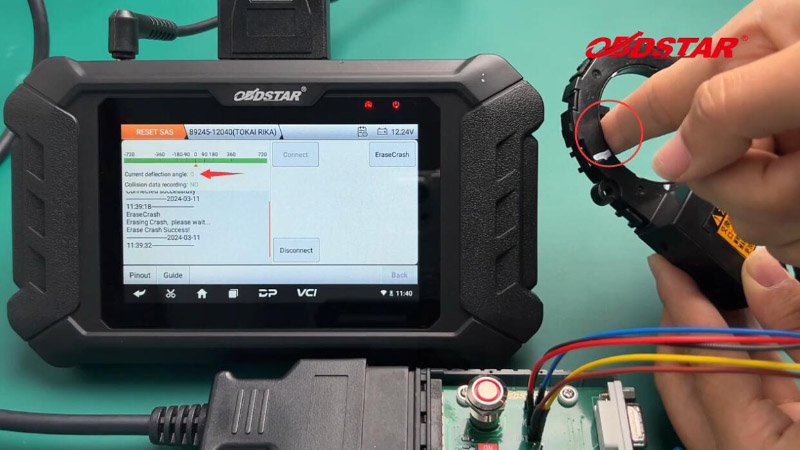

Calibrate angle.

Done! That’s how to repair SAS on bench using OBDSTAR P50 Airbag Reset Tool.
