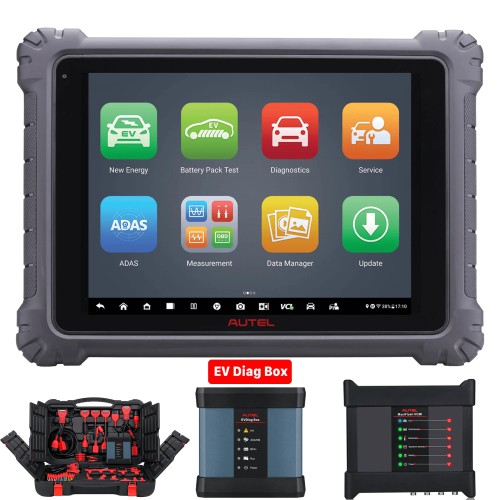

Autel has released their latest diagnostic solution for Electric Vehicles — Autel Ultra EV Tablet. It is equipped with EV DIAG BOX and EV DIAG Kit. And we can also update items including Ultra, MS909… to this new Ultra EV.
Part 1. Comparison

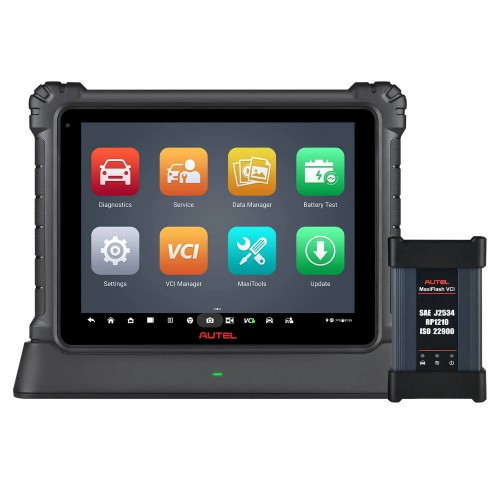

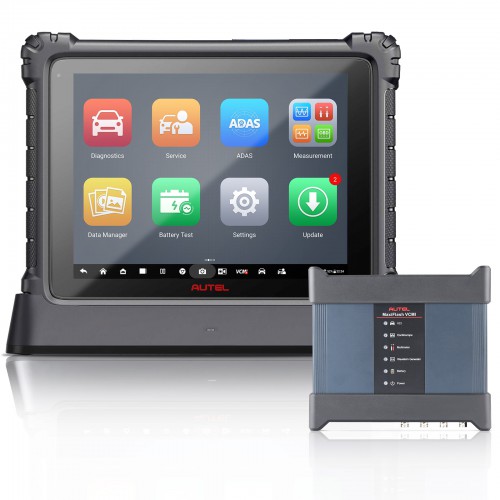

Autel Ultra EV vs. Ultra vs. Ultra Lite:
Autel Ultra EV | Autel Ultra | Autel Ultra Lite | |
Image | |||
Firmware | |||
OS | Android 7.0 | Android 7.0 | Android 7.0 |
Connection | Bluetooth MaxiFlash VCMI | Bluetooth MaxiFlash VCMI | Bluetooth MaxiFlash VCI |
Screen | 12.9inch touchscreen | 12.9inch touchscreen | 12.9inch touchscreen |
Battery | 18,000mAh | 18,000mAh | 18,000mAh |
Processor | 2.2GHz+1.8GHz octa-core |
2.2GHz+1.8GHz octa-core |
2.3GHz+1.7GHz octa-core |
Memory | 256GB SSD/ 4GB RAM | 256GB SSD/ 4GB RAM | 256GB SSD/ 4GB RAM |
Camera | 16MP rear/5MP front | 16MP rear/5MP front | 16MP rear/5MP front |
Docking Station | Included | Included | Included |
EVDiag Box | Included | × | × |
Software | |||
Automatic Detection | Auto-VIN/Auto-Scan Scan VIN/Plate Scan |
Auto-VIN/Auto-Scan Scan VIN/Plate Scan |
Auto-VIN/Auto-Scan Scan VIN/Plate Scan |
Secure Gateway Access | Authorized FCA Access With AutoAuth account |
Authorized FCA Access With AutoAuth account |
Authorized FCA Access With AutoAuth account |
License Plate Reader | Available on select vehicles | Available on select vehicles | Available on select vehicles |
Vehicle Coverage | U.S., European and Asian electric, gas and diesel, and hybrid vehicles | U.S., European and Asian electric, gas and diesel, and hybrid vehicles | U.S., European and Asian electric, gas and diesel, and hybrid vehicles |
OBDII Test Modes | All 10 test modes | All 10 test modes | All 10 test modes |
Service Resets | 36 | 36 | 36 |
Diesel PM | Reset diesel emissions Light&medium duty |
Reset diesel emissions Light&medium duty |
Reset diesel emissions Light&medium duty |
System Diagnostics | Access all modules in all systems | Access all modules in all systems | Access all modules in all systems |
High-voltage System Diagnostics | Diagrams of high-voltage system block | × | × |
Battery Pack Diagnostics | SOC and SOH analysis | × | × |
Component Activations | Bi-directional control | Bi-directional control | Bi-directional control |
Enhanced Functions | Coding& adaptations | Coding& adaptations | Coding& adaptations |
ADAS Calibration | ADAS Upgrade & Frame Kit Purchase required |
ADAS Upgrade & Frame Kit Purchase required |
× |
Cloud Services | Remote programming & Report storage | Remote programming & Report storage | Remote programming & Report storage |
Repair Assist | Guided procedures with DTC analysis & fault code solutions | Guided procedures with DTC analysis & fault code solutions | Guided procedures with DTC analysis & fault code solutions |
Topology Module Mapping | Color coded all system status screen on supported vehicles | Color coded all system status screen on supported vehicles | Color coded all system status screen on supported vehicles |
Relevant Cases | DTC troubleshooting | DTC troubleshooting | DTC troubleshooting |
Technical Service Bulletins | Available on select vehicles | Available on select vehicles | Available on select vehicles |
Oscilloscope | VCMI 5-in-one device, VCI multimeter, waveform generator, CAN Bus tester | VCMI 5-in-one device, VCI multimeter, waveform generator, CAN Bus tester | × |
Split ScreenDisplay | × | View multiple functions at once | View multiple functions at once |
Part 2.Can we update other Ultra models to Ultra EV?
Yes.
Ultra/ MS919/ MS909 users could update ultra software and buy upgrade kit (EV DiagBox, Adapter for EVs) for access to cables and adapters
Part 3.Ultra EV Using Tips

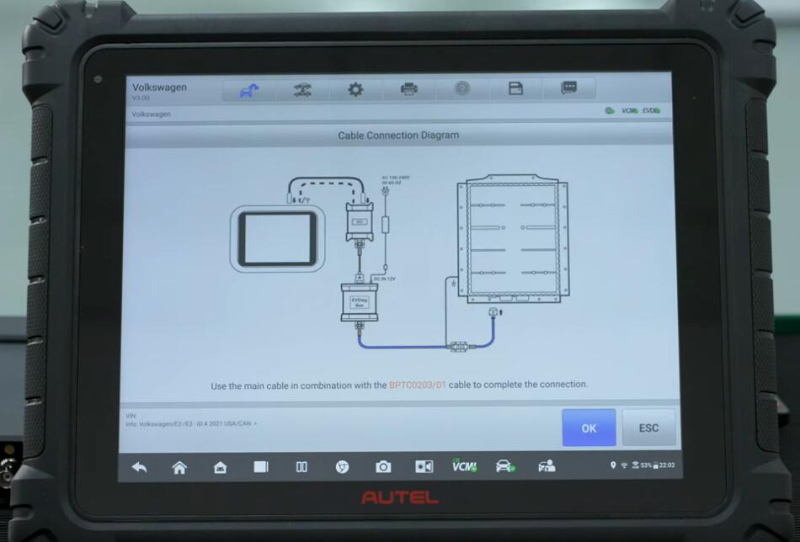

1)Connection
VCMI, Ultra EV, EV Diag Box, and EV Cables (Battery Pack on off-vehicle tests) are required
2)Power and Network
EV Diag Box has no built-in power supply, so remember to power it externally
Make sure Ultra EV is connected to network

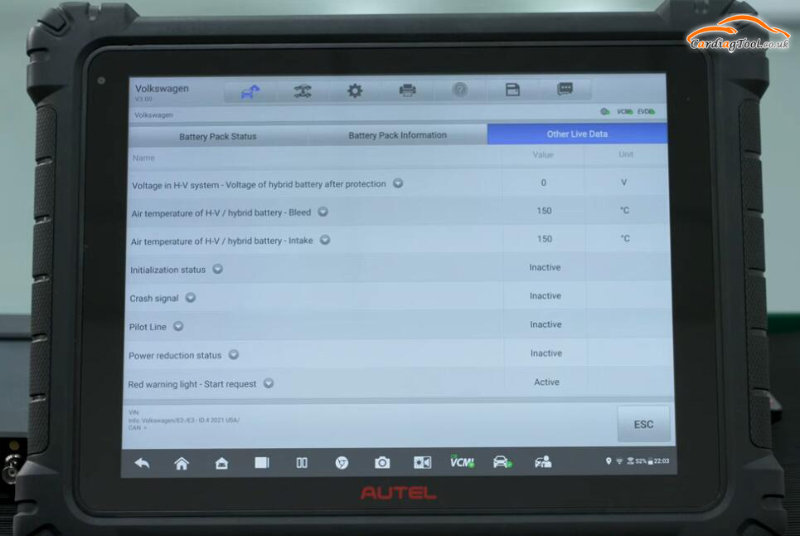

Part 4.Software Display
