THINKCAR Thinkdiag Review: Cost-effective and Pocket-Friendly OBD2 Diagnostic Tool

This post looks into and reviews Thinkcar Thinkdiag, was released early this year, and it is an all-system OBD2 diagnostic tool. Read on for a detailed look into the features, prices, and functions of this powerful device. We will look into the newest additions it has as well.

I. Overview

THINKCAR Thinkdiag is an automotive diagnostic device that is more powerful than the EasyDiag. It supports full vehicle diagnostics, special function, and actuation tests. In addition to that, it supports 16 maintenance functions in a wide variety of cars. Apart from being powerful, this tool is cost-friendly and can be purchased in several outlets worldwide. After the purchase of the device, you get a one-year free update online for all car brands. After that, you can purchase the unique software you need only in the app. You can as well pay for the Thinkdiag All Car Brands two-year license.

The device has multilanguage features and supports several major languages, including Japanese, English, Russian, German, French, Italian, and Spanish. It also covers up to 115 major vehicle manufacturers in the market. The device connects to your car through Bluetooth, and it appears on your smartphone as Thinking.

II. THINKCAR Thinkdiag vs. ThinkCar Pro Thinkdiag Mini

  THINKCAR Thinkdiag ThinkCar Pro Thinkdiag Mini
Product Dimensions 4.6 x 3 x 1.5 inches 2.3 x 1.97 x 0.98 inches
Item Weight 0.1 Kg 92 g
OBDII Diagnostics Full



Full



System Diagnostics All systems



All systems
Advanced service functions 16 reset functions 15 reset functions
Coding/ Programming Support ECU coding Support ECU coding and IMMO Key programming
Vehicle coverage Covering Up to Over 115 Major Vehicle Manufacturers from America, Europe, and Asia after 1996 with OBD2 connector All OBD2 vehicles made in 1996 and later
Software All Car Brands License Activated and 1 Year Free Update Online  Five Car Brands Free for One Year

III. Detailed Review

  1. Professional design and Hardware

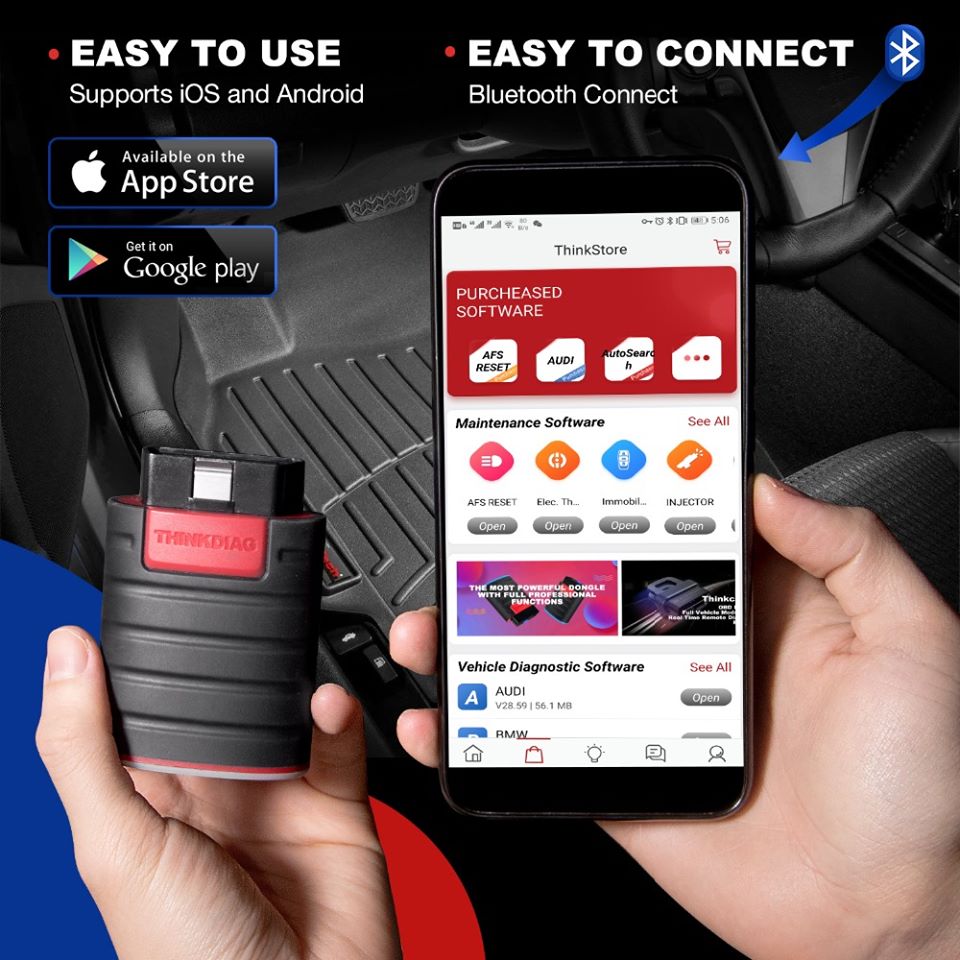

This product comes in a dimension of 4.6 x 3 x 1.5 inches and weighs 0.1 Kgs. It is slick and rectangular in shape and can be carried in the pocket. In addition to that, it has a firm and stable build. The device is Bluetooth enabled, supports both Android and IOS and has a multilingual user interface that supports over seven languages. It works with its own application that can be installed in all smartphones which are either Android 5.0 and above or IOS 9.0 and above. Thinkdiag is powered directly by the vehicle’s OBD2 port thus it does not need charging.

  1. Full system Diagnostics

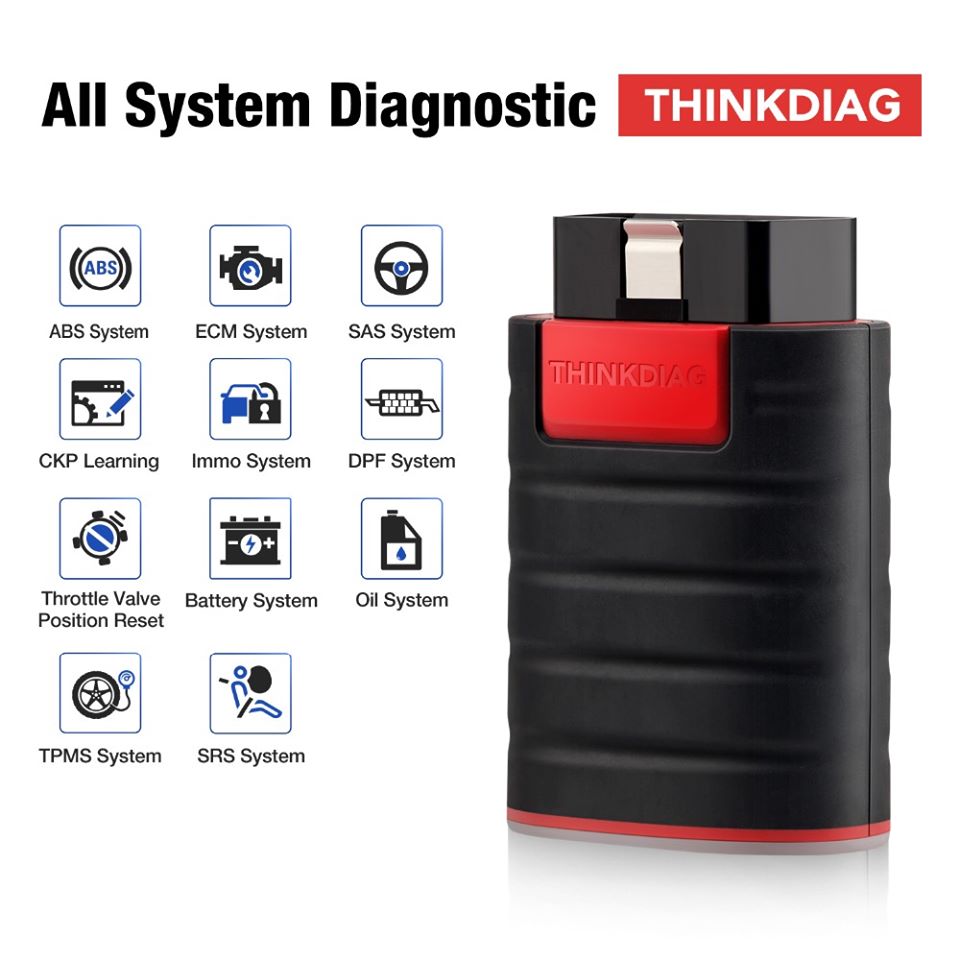

This device works as a professional-grade scanner that you can use for a quick scan of your car before taking it to a shop. Users can perform this scan either remotely or physically. Also, it reads system fault codes and clears them. The above function is facilitated by its ability to read the vehicle’s information automatically. It also has unrestricted full EOBD and OBD2 functions that facilitate users to perform scans and make informed maintenance decisions. Besides that, it can view data streams for all car systems, and some of them are mentioned below:

  • EPB System
  • TPMS
  • Engine System
  • SAS System
  • ABS System
  • CKP Learning
  • IMO SYSTEM
  • PDF System
  • SRS System
  • Throttle Value Position Reset
  • Battery System
  • HVAC/EVAP System

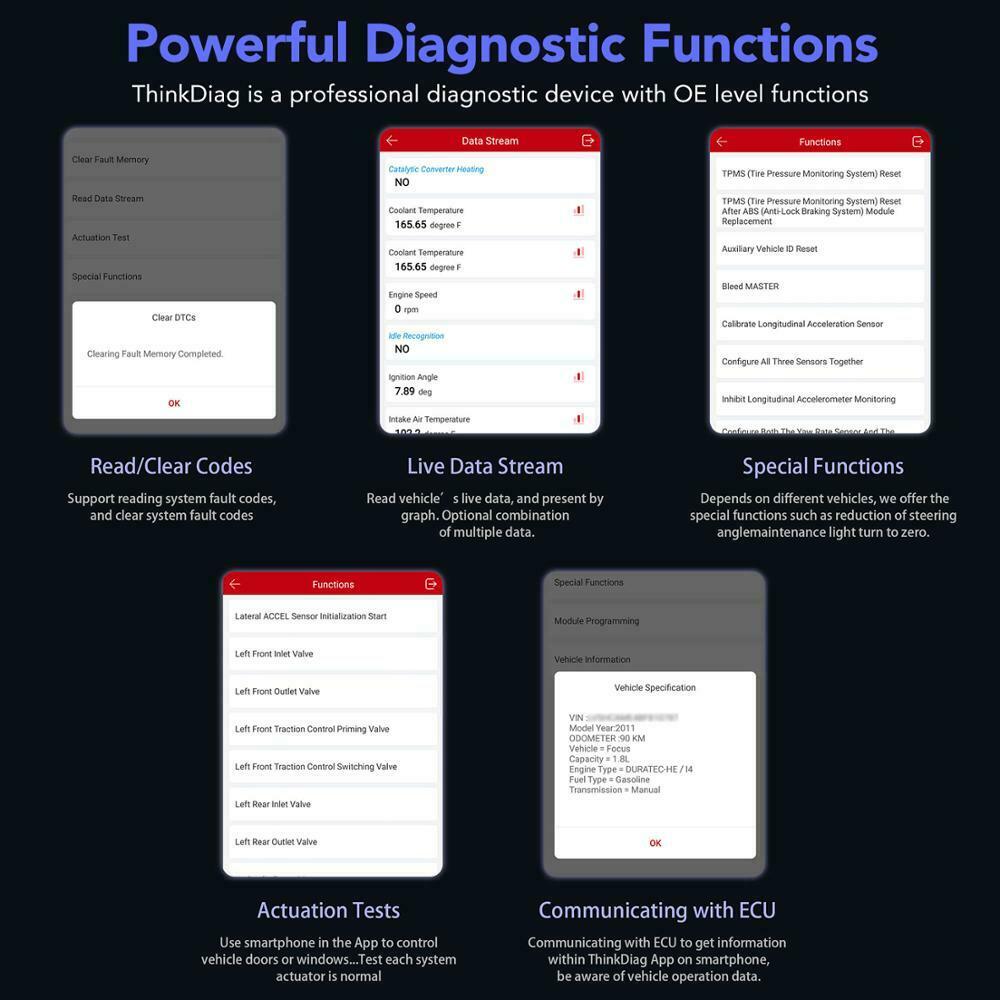

The full diagnostic feature is complimented by Diagnostic Data Management. The Live Data Stream Graphing capability provides visual comparisons of several real time data so as to give a better analysis. With just one click, you can analyze the abnormal parameters of your car through the intuitive diagnostics monitoring the vehicle.

In addition to performing scans, it provides automatically generated and professional diagnostic reports. These reports will help both you and your dealer in knowing where the real problem is. It can be printed or shared digitally.

  1. Advanced Service Options

Other than performing the function of an ordinary scanner, this product has more to it. The above includes Bi-Directional Control, ECU Coding and16 kinds of reset functions. The Bi-Directional Control feature is also known as Actuation tests. It tests all execution components in order to identify malfunctions. The ECU coding feature is used to customize the adaptive data for vehicle control modules, after repairs or to replace components of car parts.

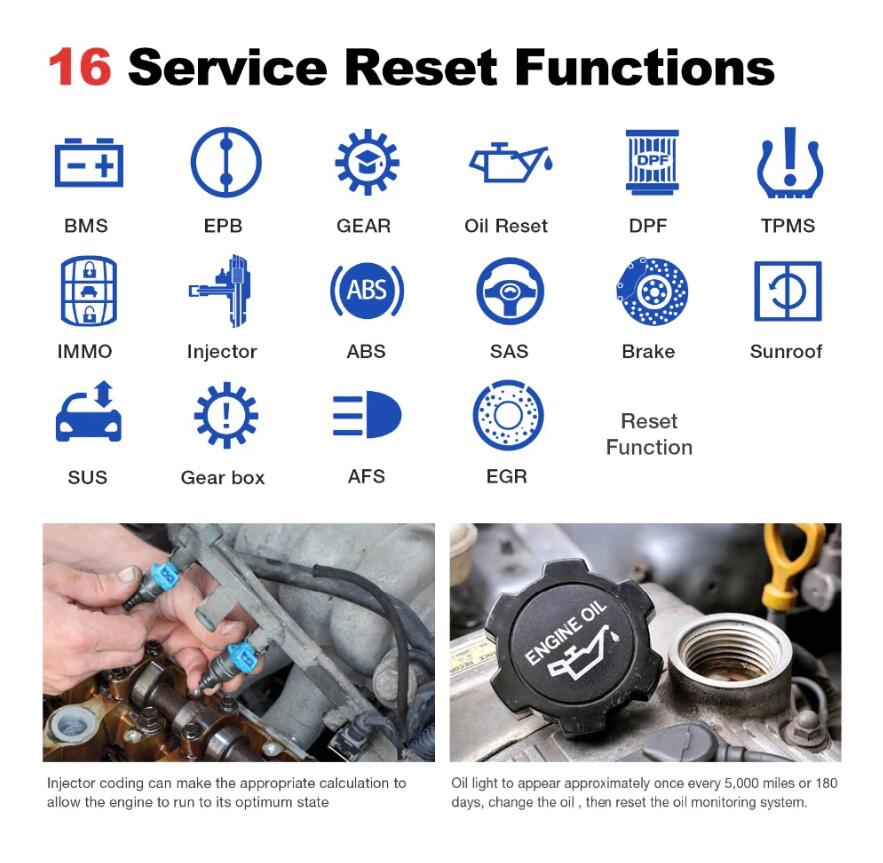

These reset functions help the user when they encounter problems with their cars. With this, you can start the reset service of affected systems. It is simply done by resetting some data in the normal area. Some of the reset functions include:

  • EGR Reset
  • Electronic Throttle Position Reset & Learn
  • Diesel Particulate Filter (PDF) Regeneration
  • Tire Pressure Monitor System Reset
  • Tooth Learning
  • Gearbox reset
  • Oil reset service
  • Air suspension reset
  • Sunroof reset
  • Injector matching MaEET
  • Diesel Particulate Filter (PDF) Regeneration
  • ABS bleeding
  • AFS reset
  • Steering Angle Calibration
  • Batter Register and Maintenance
  • Electronic Parking Brake Reset

The above special functions are not for all car models, though. To find out if your car is among the supported, send your car release year, model, and brand to your seller.

  1. Supported Protocols and Vehicle Coverage

Thinkdiag supports the following OBD2 protocols:

  • SAEJ1850(VPW & PWM)
  • ISO 14230-4(KWP2000)
  • ISO14229(uds)
  • ISO9141-2(iso)
  • ISO 15765-4(CAN)

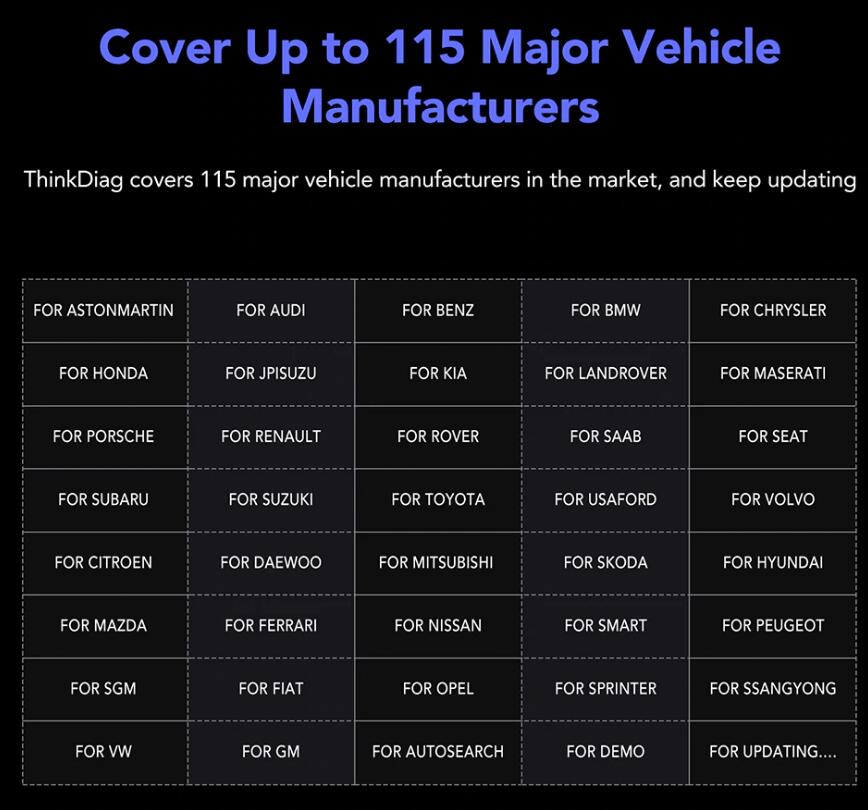

The device also covers up to 115 major vehicle manufacturers in the market such as BMW, Audi, Benz, Chrysler and it keeps updating.

  1. Warranty, Software Update, and Price

Thinkdiag goes for around $99. It comes with a free 1-year subscription for software updates. After that, you can purchase the unique software you need only in the app. You can as well pay for the Thinkdiag All Car Brands two-year license.

In addition to that, it comes with a 1-year manufacturer warranty.

  1. Marketed Users

The tool is perfect for both car owners and professional car experts like mechanics. This OBD2 scanner is perfect for dealership, DIY, garage, auto repair shop, automotive engineers, and individuals alike.

Final thoughts

Hopefully, this article was able to answer all of your questions concerning ThinkCar Thinkdiag. It is a cost-effective and pocket-friendly device that every car owner should have. The device has several functions and tools that are necessary for the proper maintenance of vehicles. All comments and questions will be appreciated. Explore our other articles for more educative content like this.
