V17.04.27 wiTech MicroPod 2 Wifi Settings Procedure

Hello guys, Wifi version MicroPod 2 wiTech V17.04.27 was tested and released in everyone’s expectations. So we can’t help asking” how to set up WIFI?”.

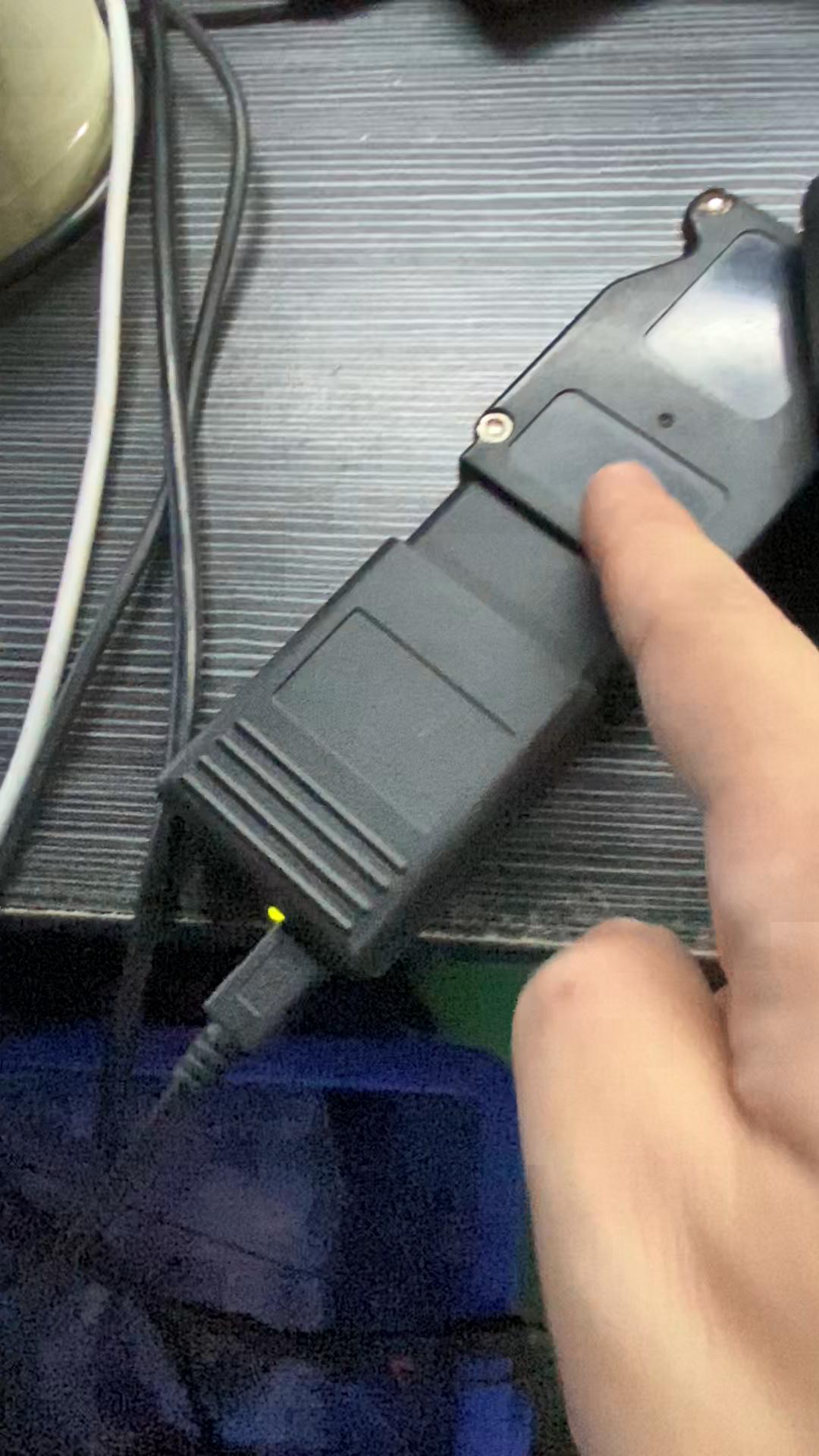

Plug MicroPod 2 into the OBD2 port of one Chrysler / Dodge / Jeep / Fiat. The indicator will turn green, it means it car is charging the device.

Meanwhile use the USB cable to connect one laptop (Dell, Lenovo etc) with installed V17.04.27 wiTech software

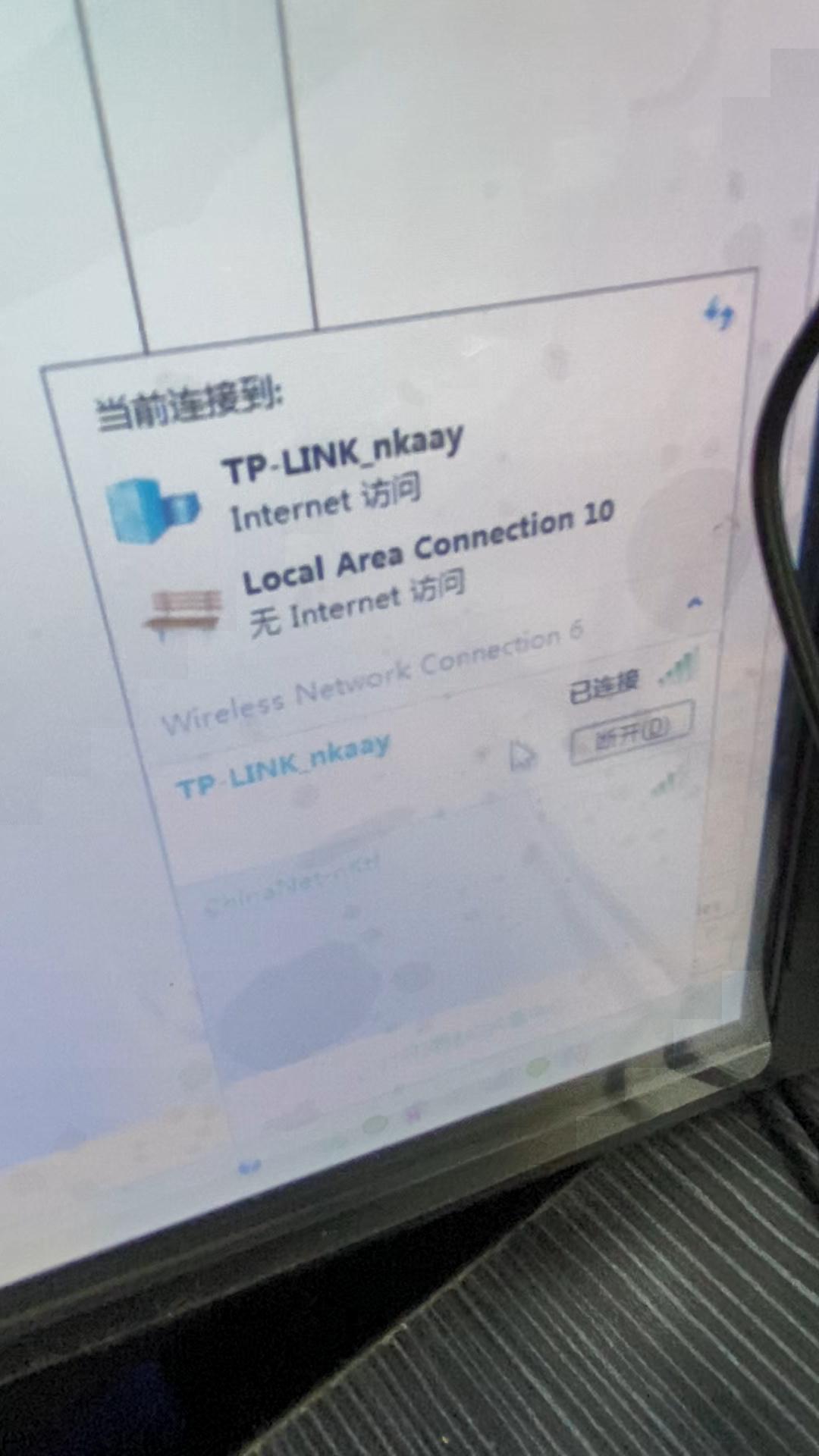

Connect wireless WIFI on the computer.

Open a web browser to open 172.22.22.22.

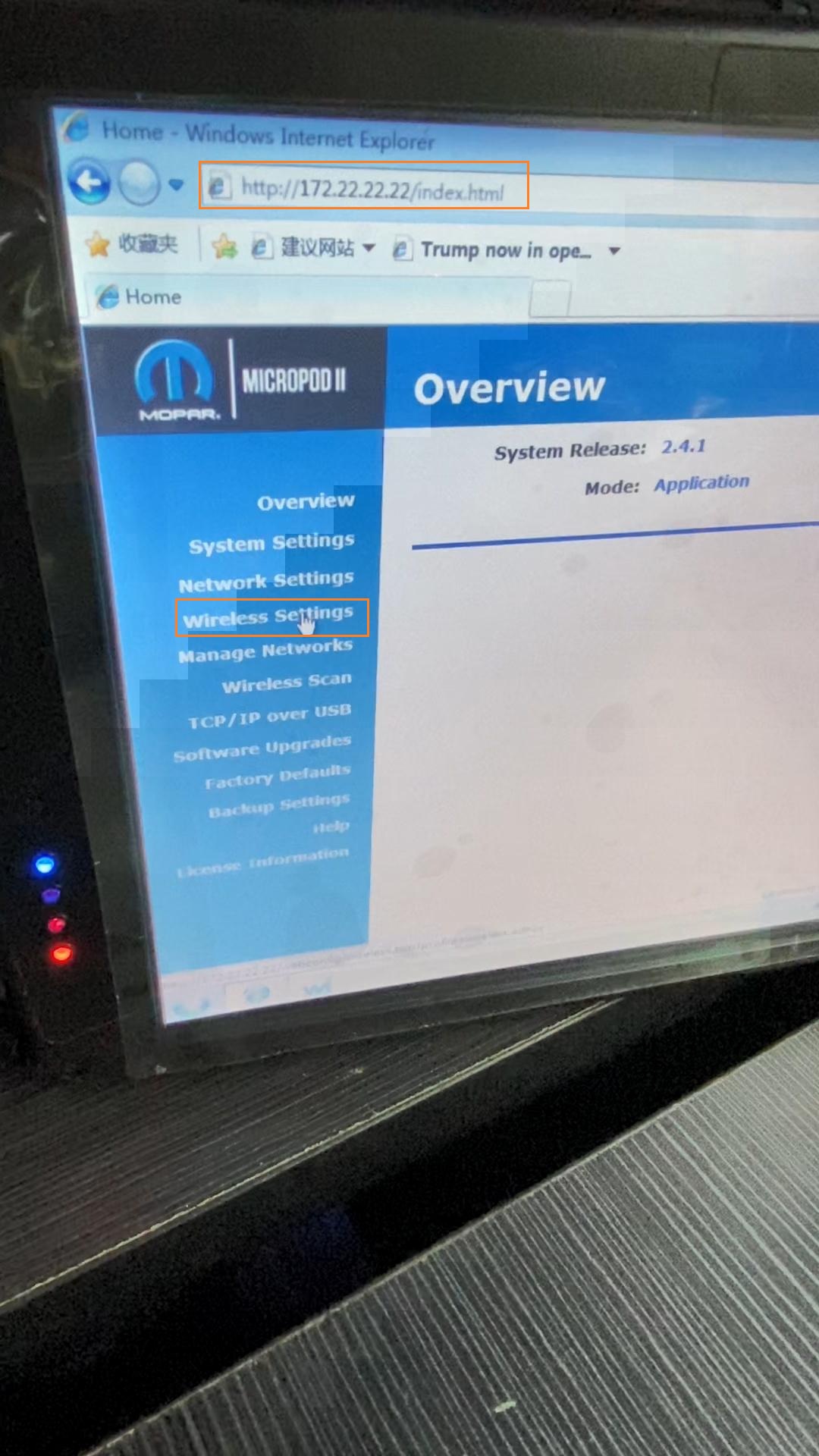

After opening 172.22.22.22, click on “Wireless Settings”.

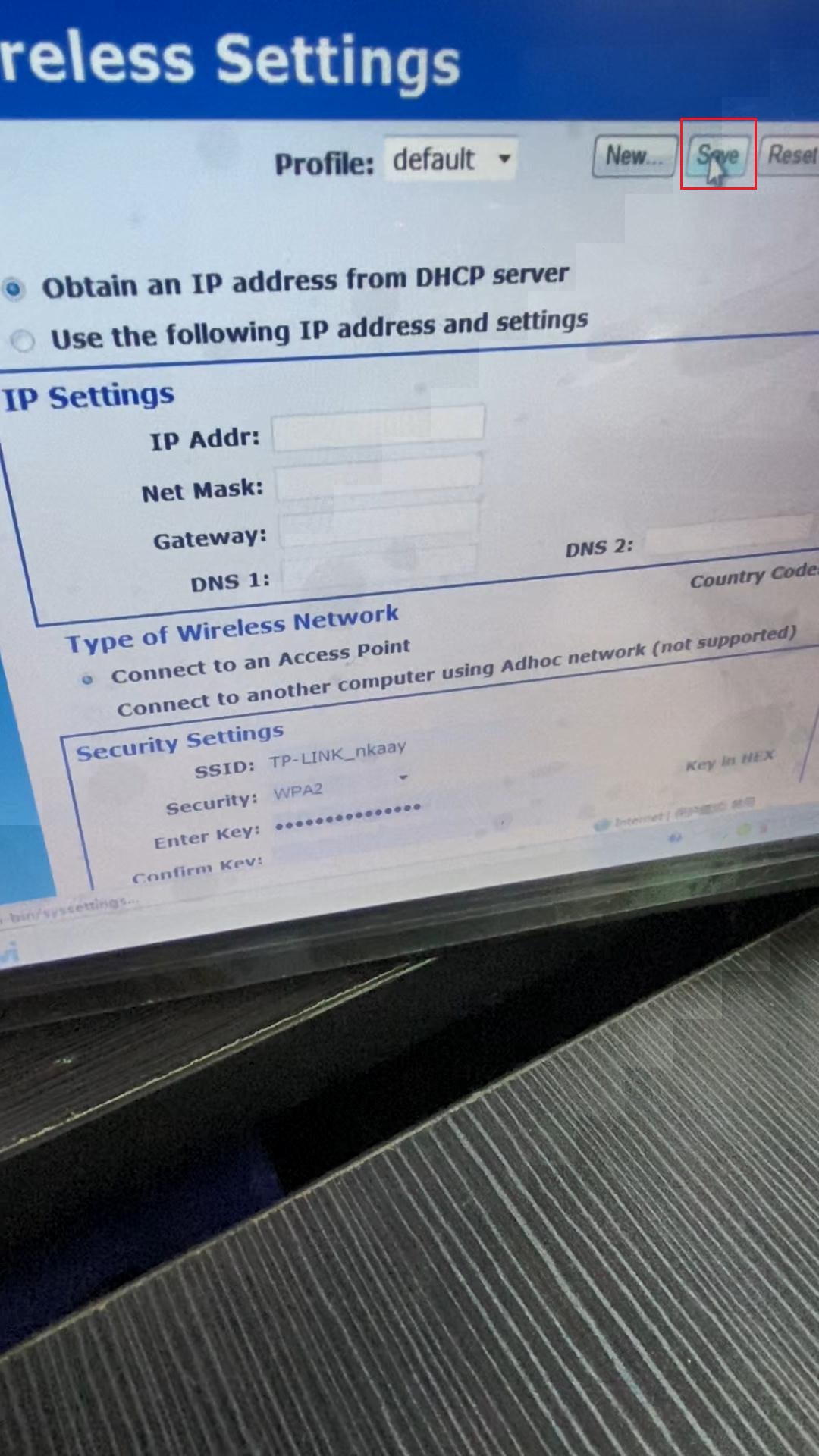

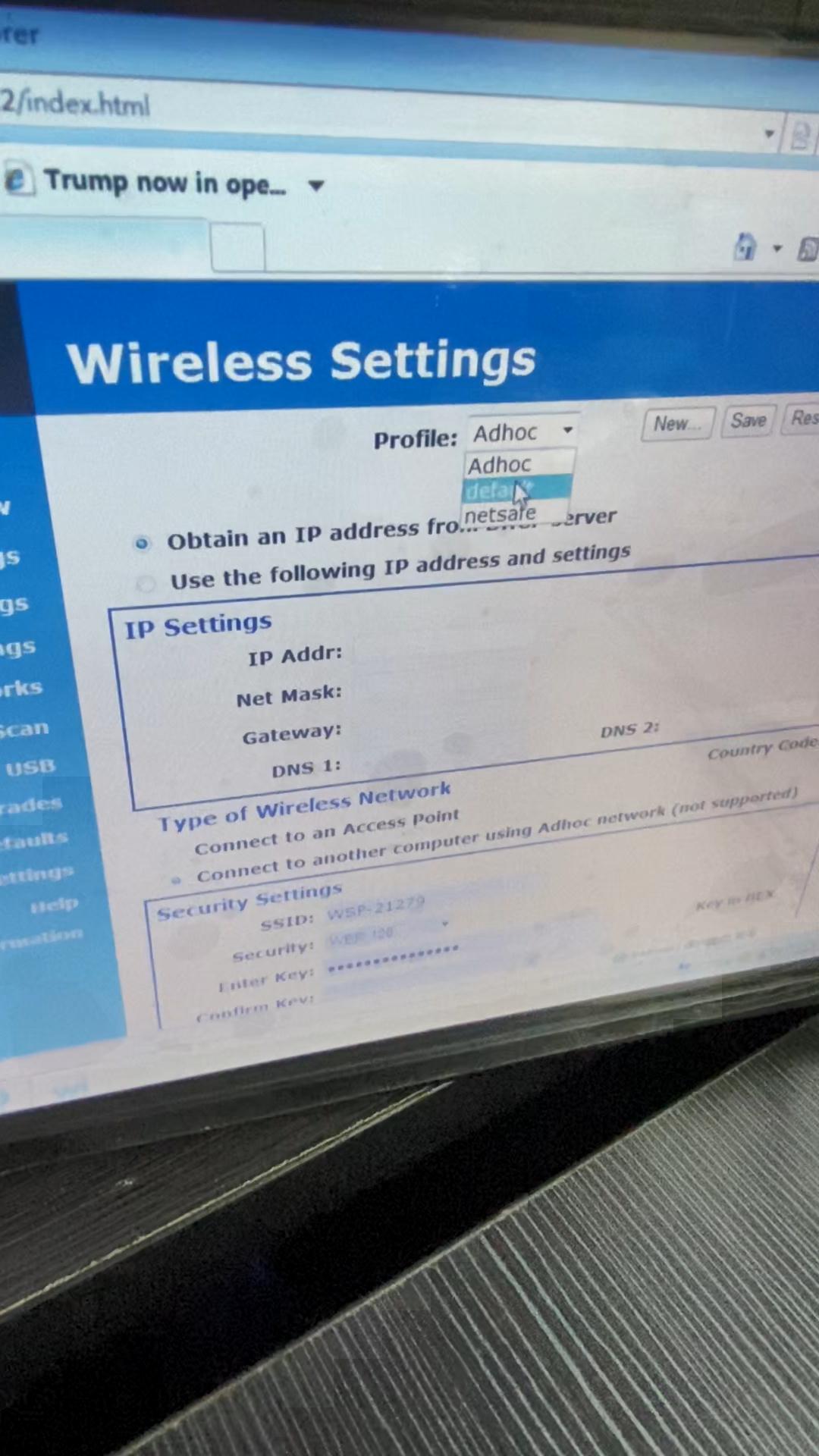

Profile is set to “Default”.

Click on “Save”.

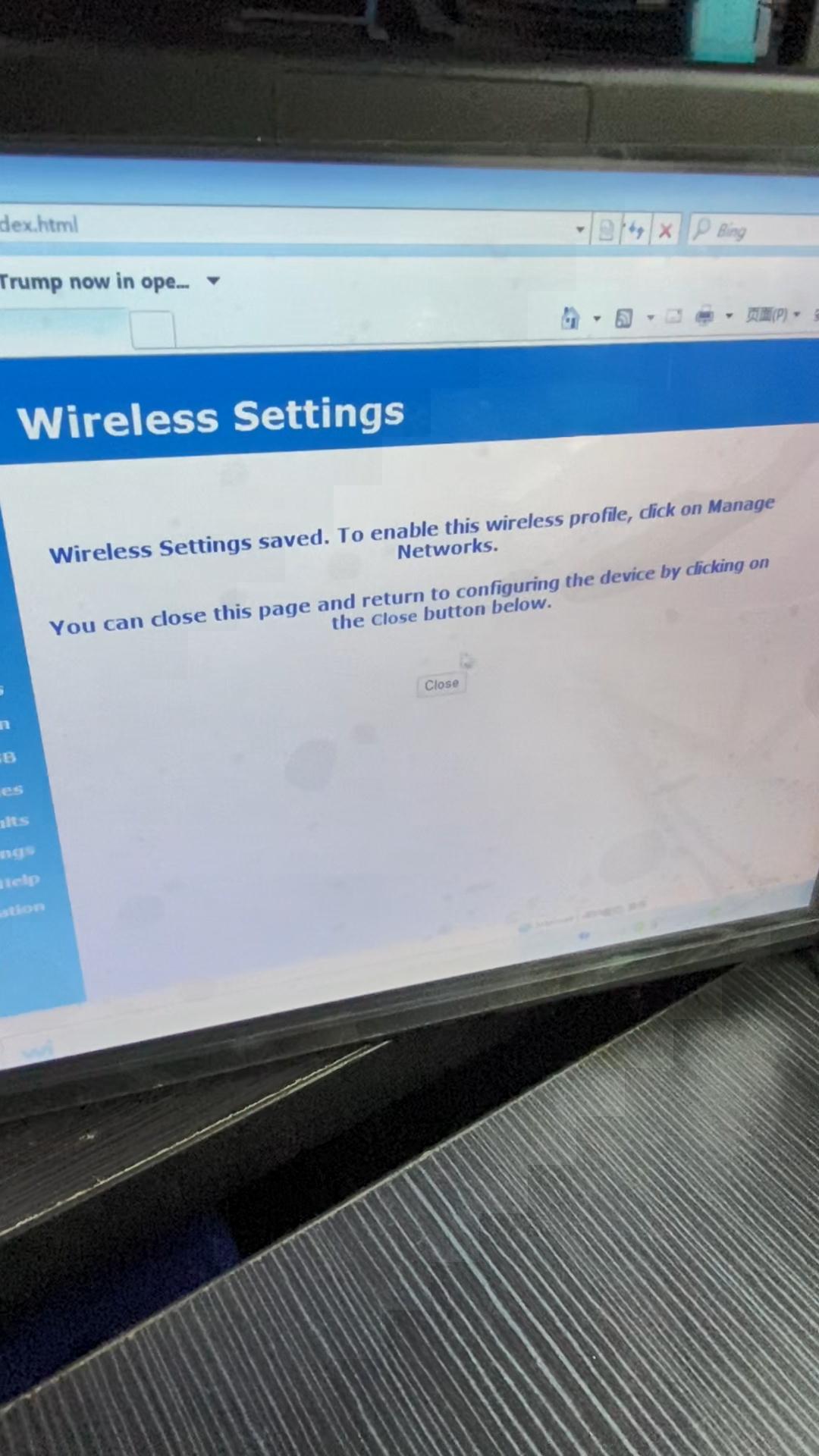

Wireless Settings saved. To enable this wireless profile, click on Manage Networks.

You can close this page and return to configuring the device by clicking on the close button below.

Next operation is to click on “Manage Networks” -> Wireless (tick off it) -> Select & Start.

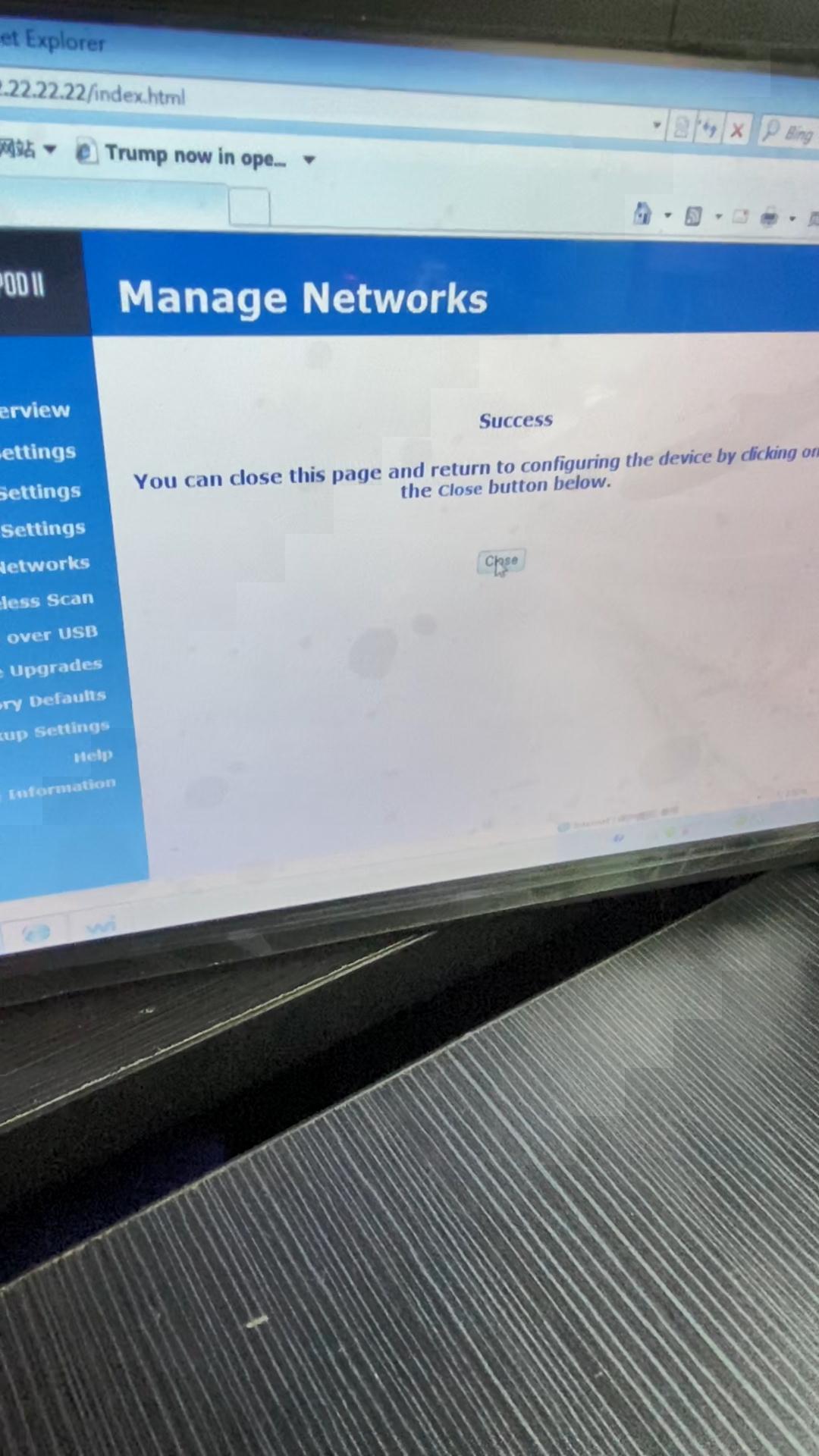

Success, close it.

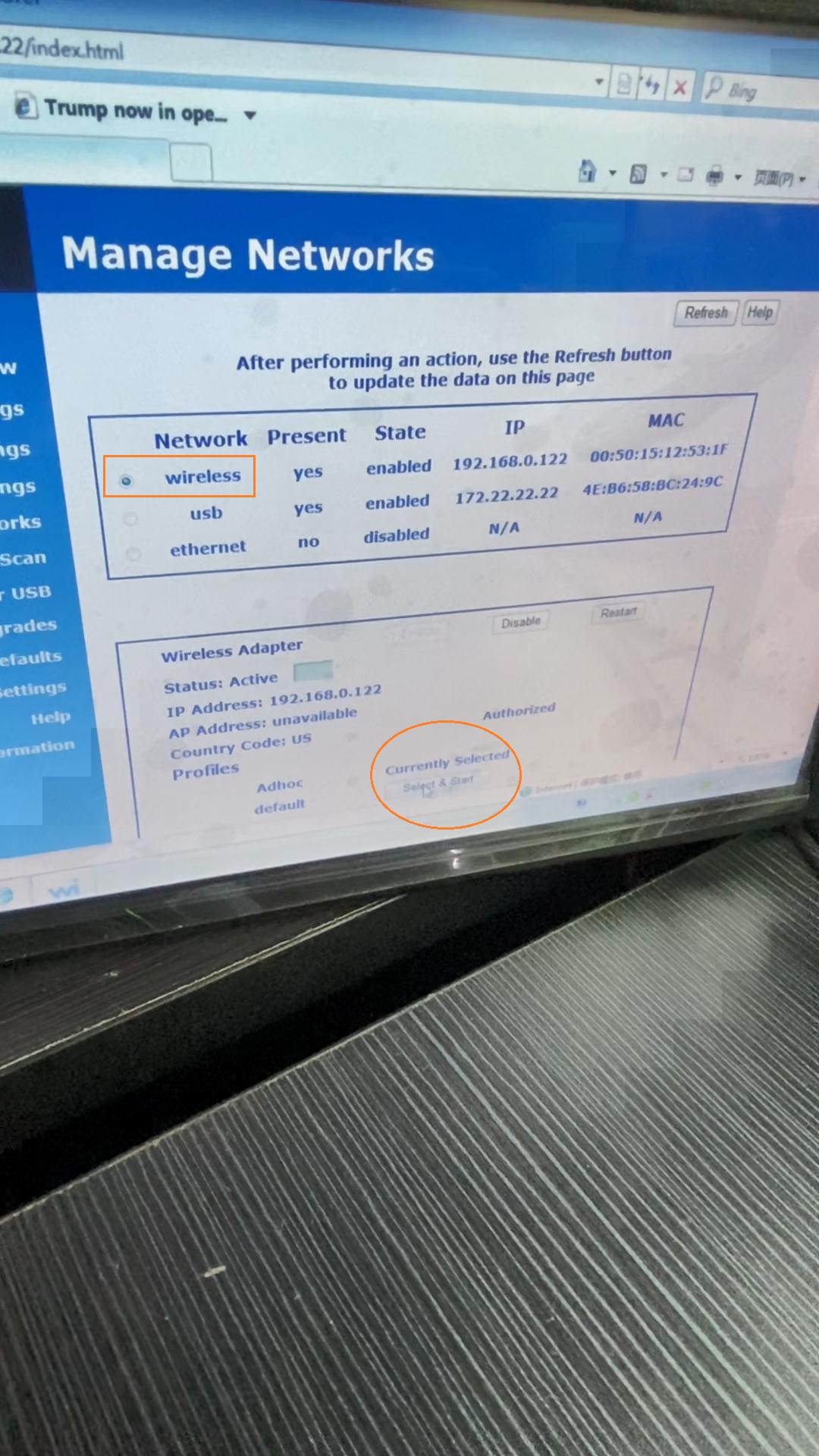

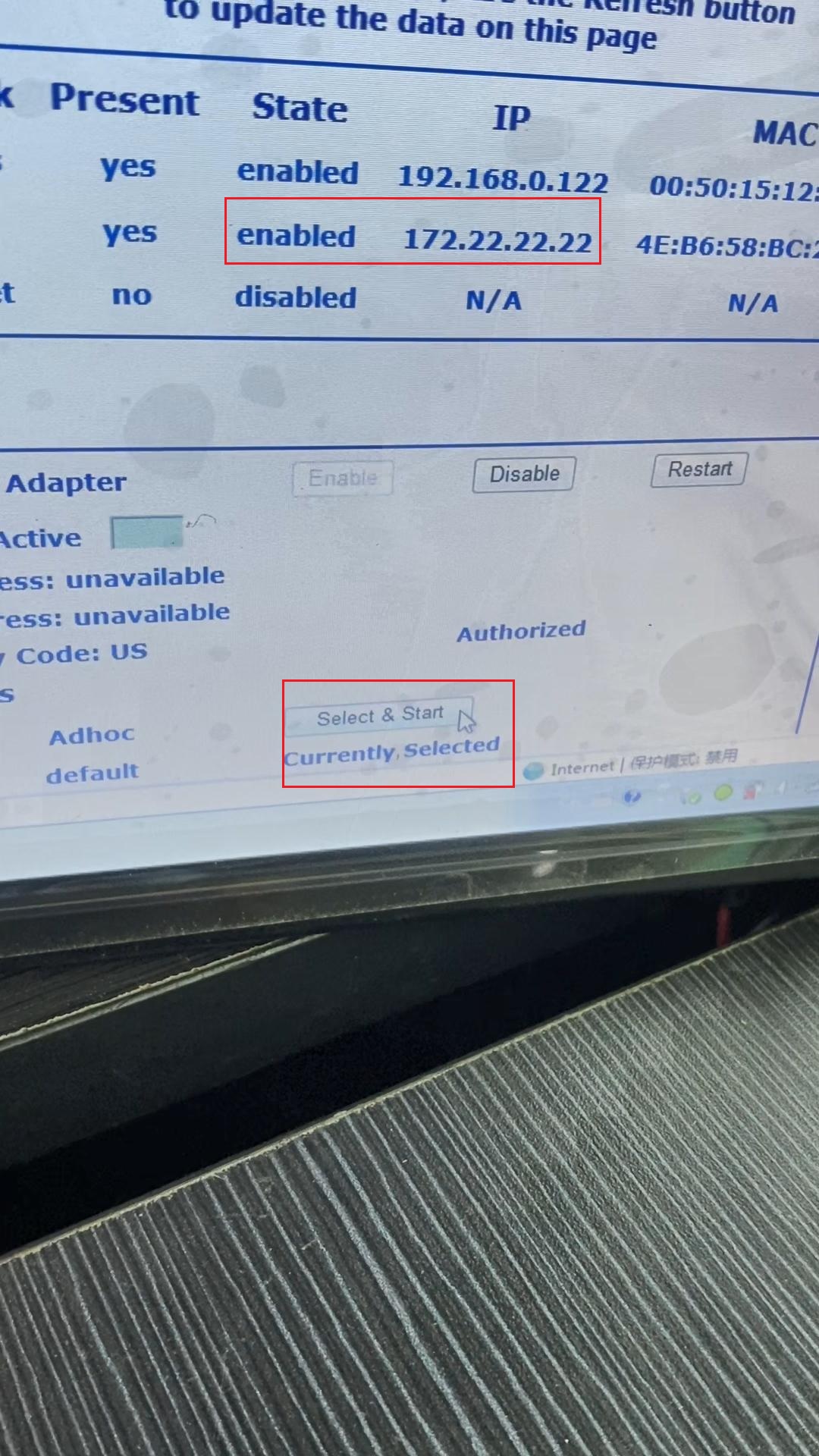

Back to click on “Manage Networks”,  now we can see “Currently Selected”, and 172.22.22.22 is enabled, which means the wireless connection is set successfully.

The job of setting V17.04.27 wiTech MicroPod 2 Wifi is done successfully. You can enjoy it diagnosing Chrysler / Dodge / Jeep / Fiat etc, even online programming.
