FVDI 2018 Change Golf 6 DASH

Here is the step-by-step to change dash to Golf 6 2012 by FVDI 2018

Prepare:

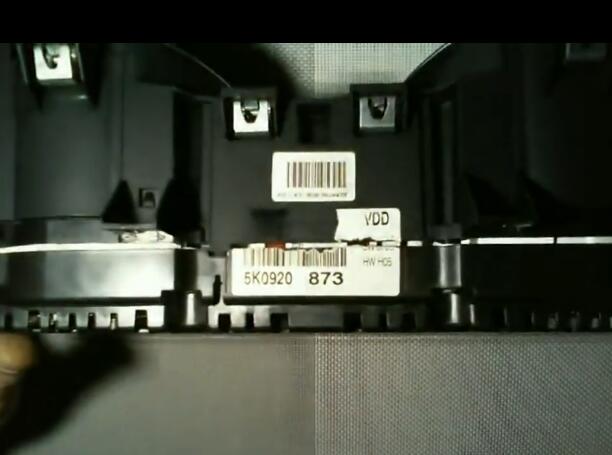

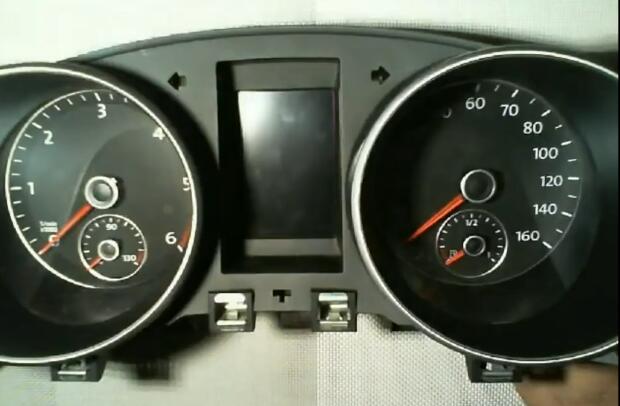

Golf 6 2012 dash

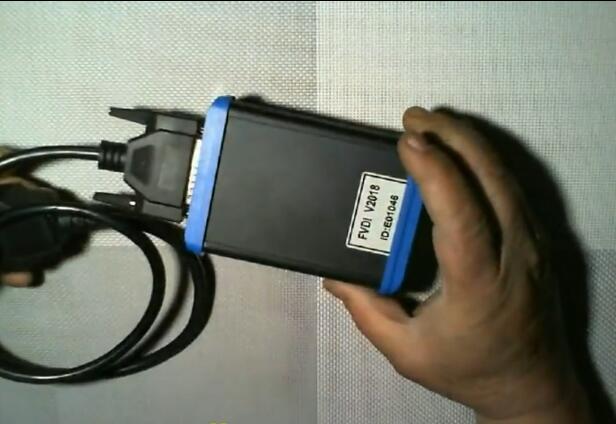

FVDI V2018 ABRITES Commander

Connection adapter

Procedures:

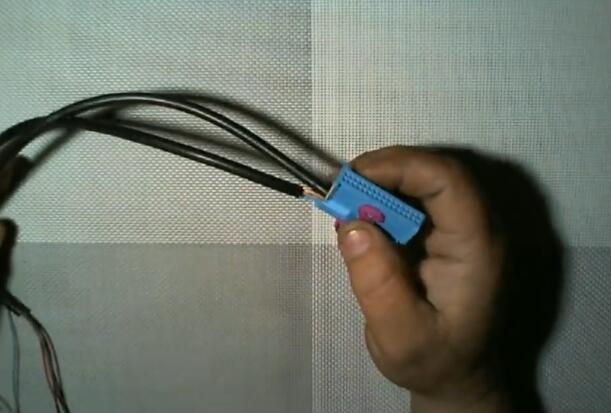

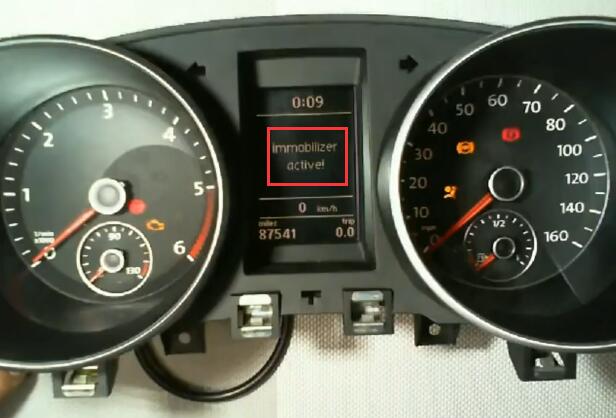

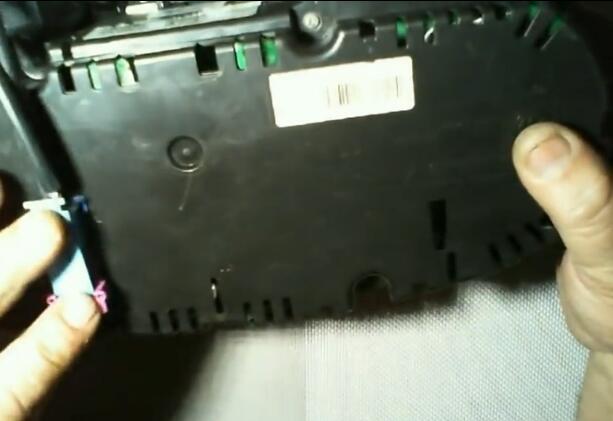

Connect adapter to dash and active Immobilizer

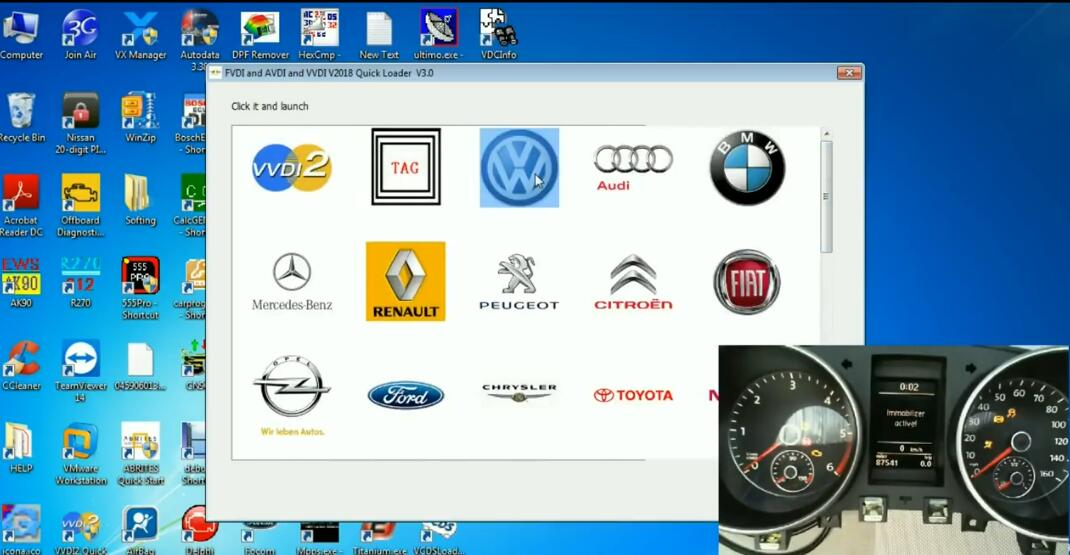

Open “FVDI and AVDI and VVDI V2018 Quick Loader V3.0” software

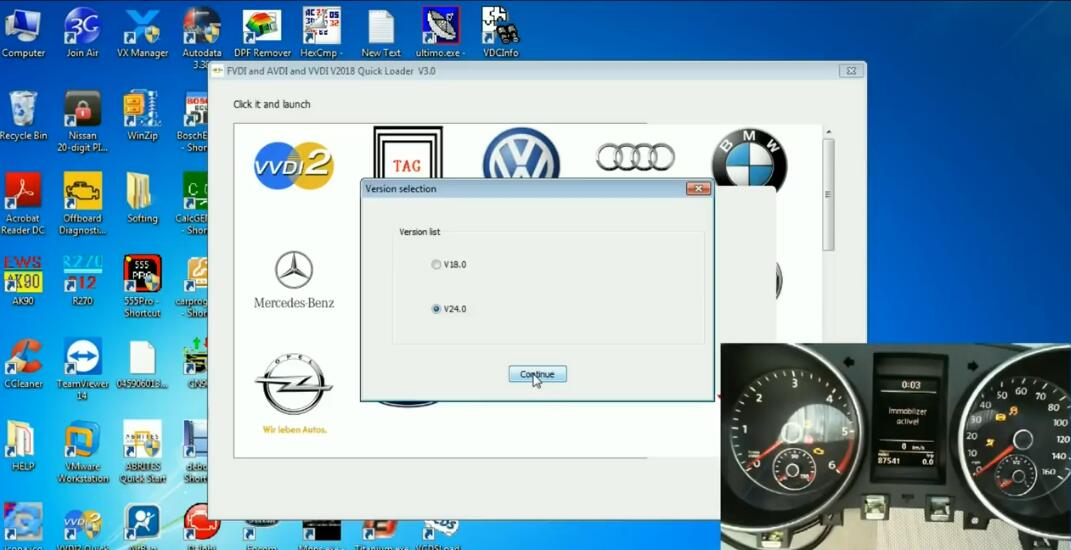

Select V24.0

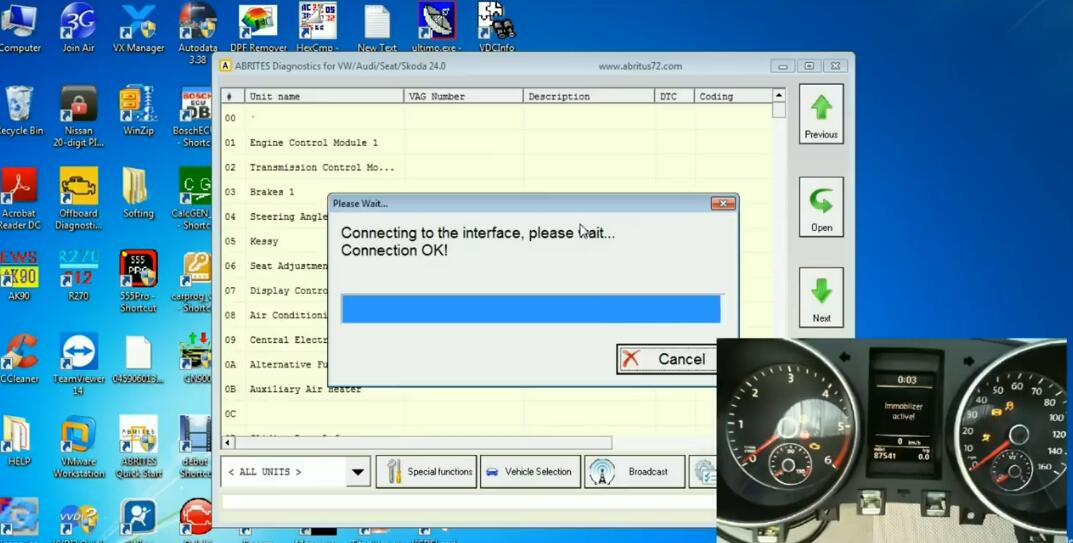

Connect to the interface success

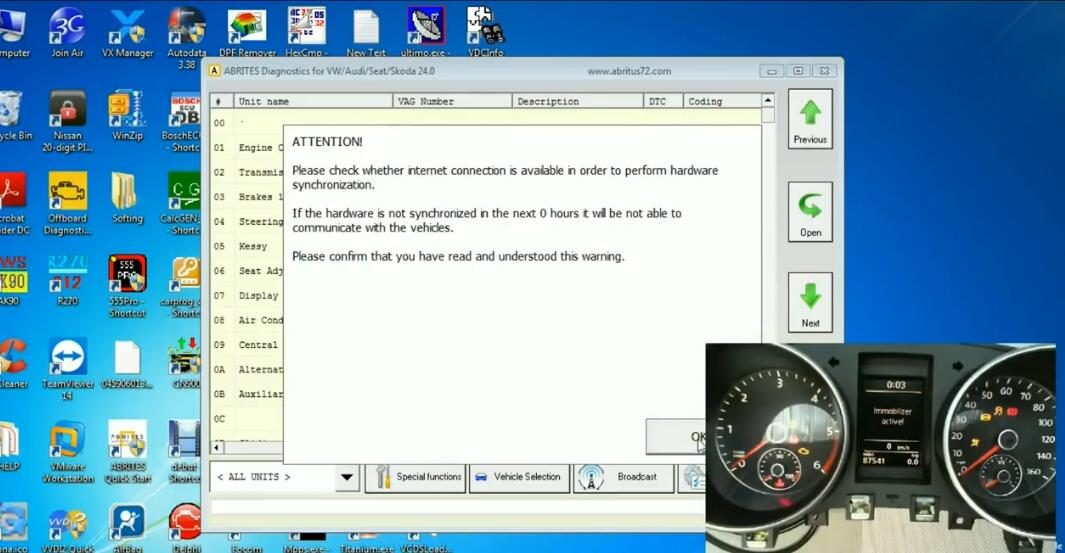

Attention:

Please check whether internet connection is available in order to perform hardware synchronization.

IF the hardware is not synchronized in the next o hours, it will be not able to communicate with the vehicles.

Please confirm that you have read and understood this warning.

Click “OK”

Checking for programmer, please wait…

There is no programmer currently connected

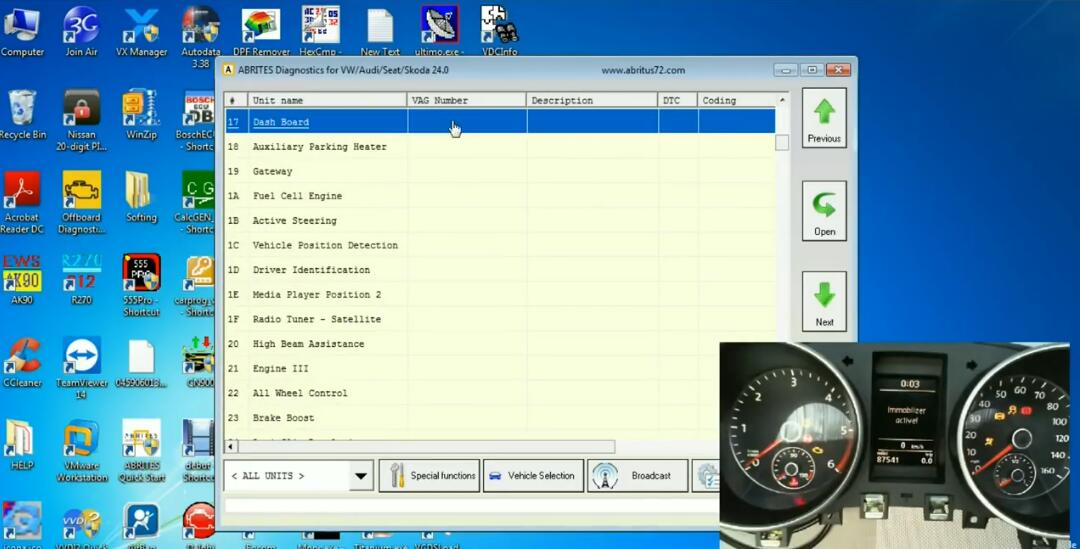

Select “Dash Board”-> “Diagnostic channel is open”

Show the device information below

Return to Dash board page

Click “Special function”-> “CAN Instrument”-> “Enter Service Mode by OBDII”

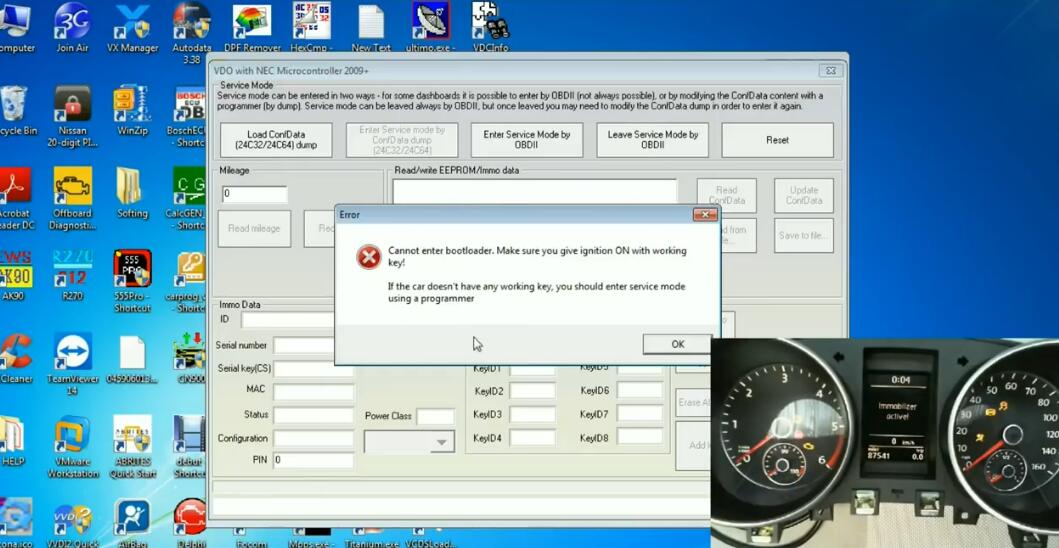

Note: Cannot enter bootloader. Make sure you give ignition ON with working key!

If the car doesn’t have any working key, you should enter service mode using a programmer

And then click “OK”

Exit the software

Take out the adapter

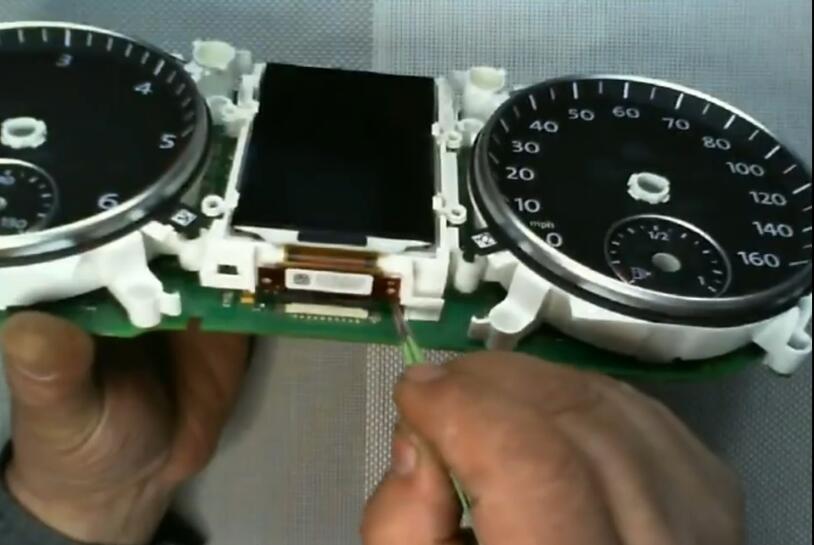

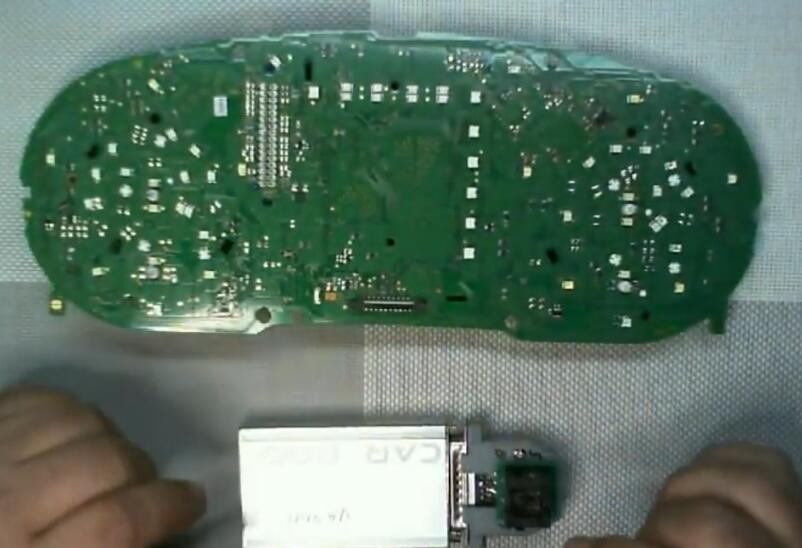

Remove the dash cover

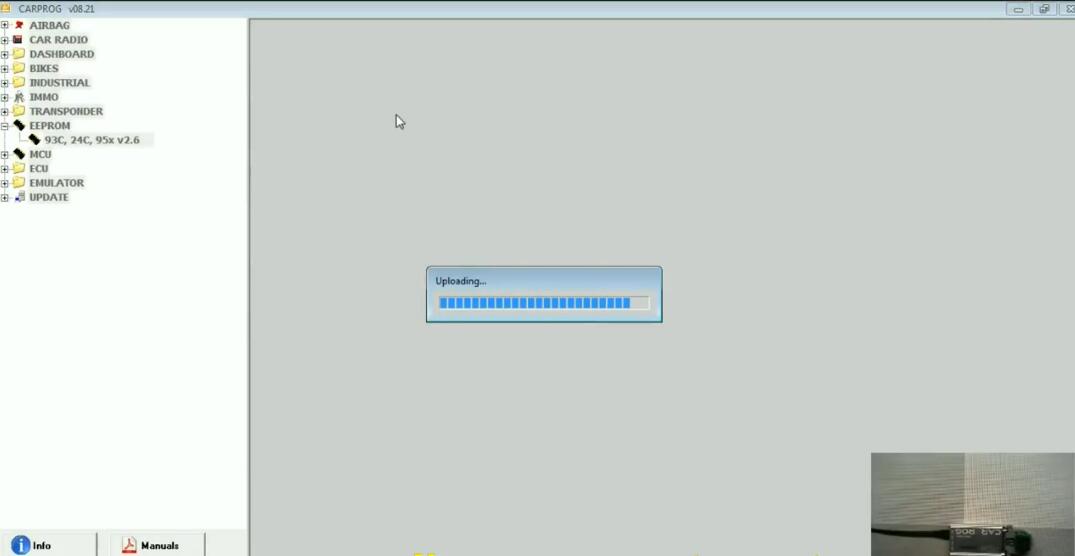

Open “CARPROG v08.21” software

Select “EEPROM”-> “93C, 24C, 95X V2.6”

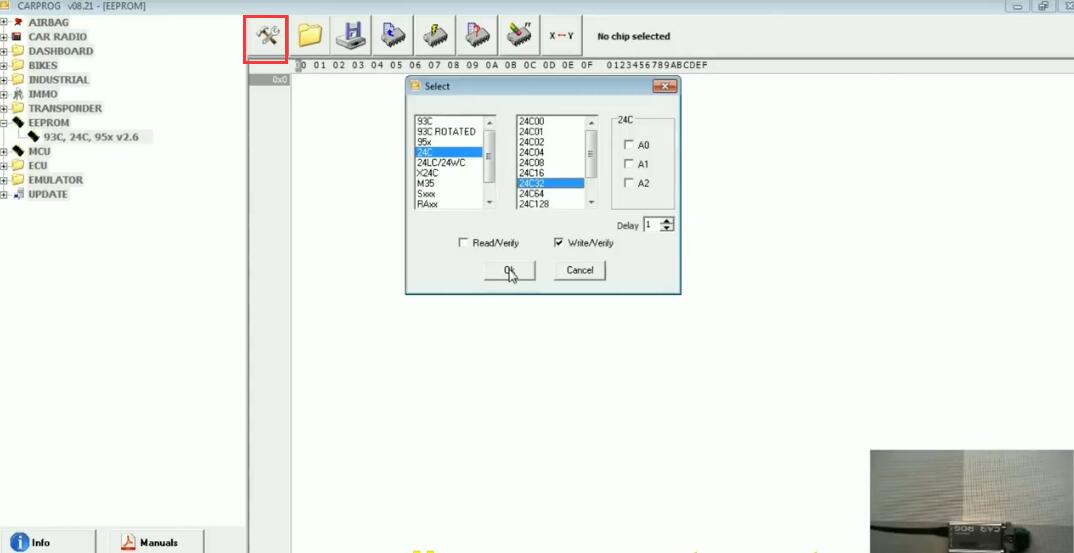

Click tool logo, select “24C”-> “24C32”

And then click “OK”

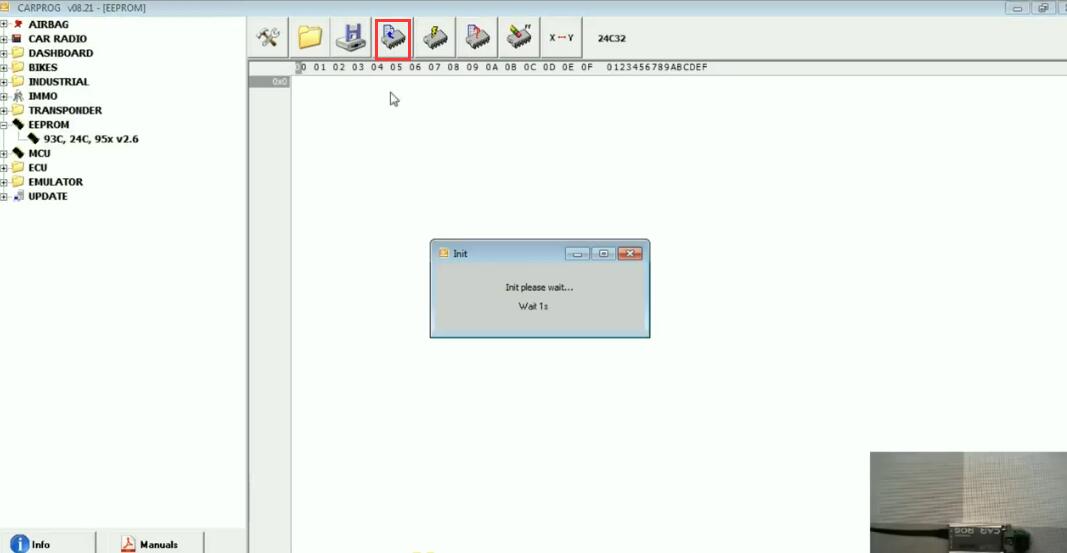

Click the init logo

Select the relevant logo to save “golf6-2012 original.bin” file

Exit the software

Open ABRITES Diagnostics for VW/AUDI/ SEAT/SKODA 24.0 software

Run the software

Select “Load ConfData (24C32/24C64) dump

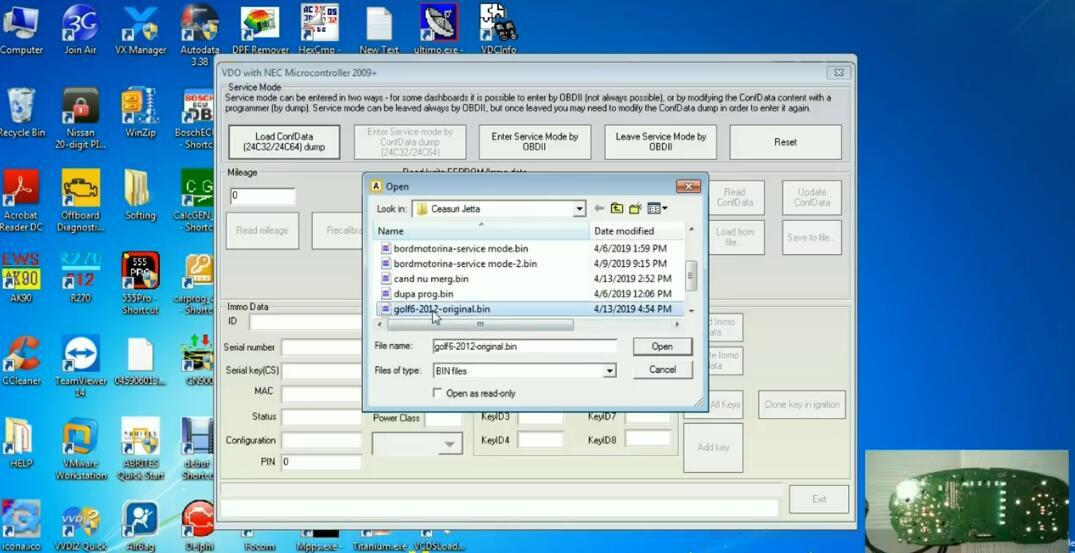

Open “golf6-2012 original.bin” file saved just now

Select “Enter Service mode by ConfData dump (24C32/24C64)

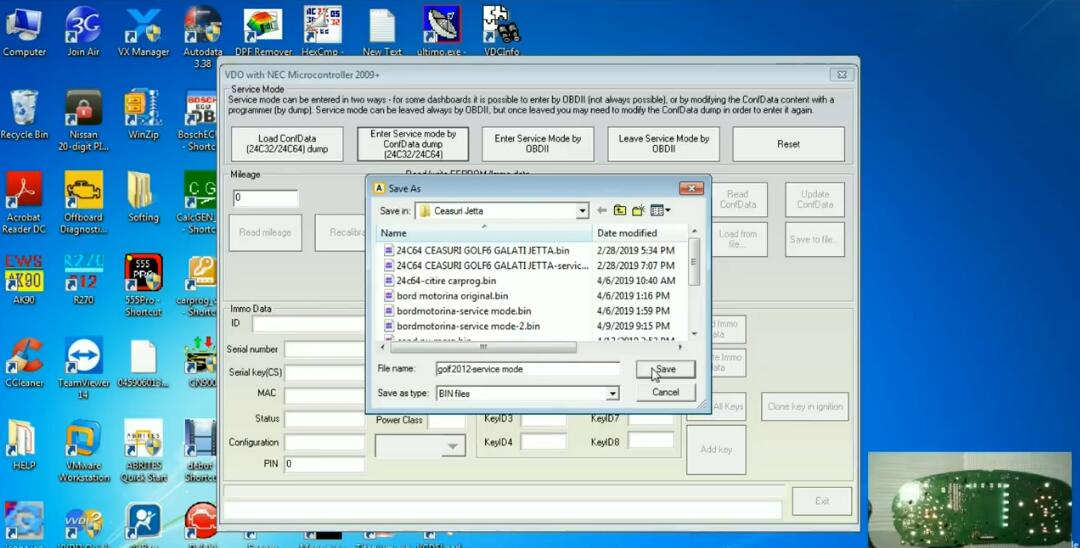

Save file name as “golf 2102 service mode”

Exit…

Go to CARPROG v08.21 software-> “EEPROM”-> “93C, 24C, 95X V2.6”

Click tool logo, select “24C”-> “24C32”, click “OK”

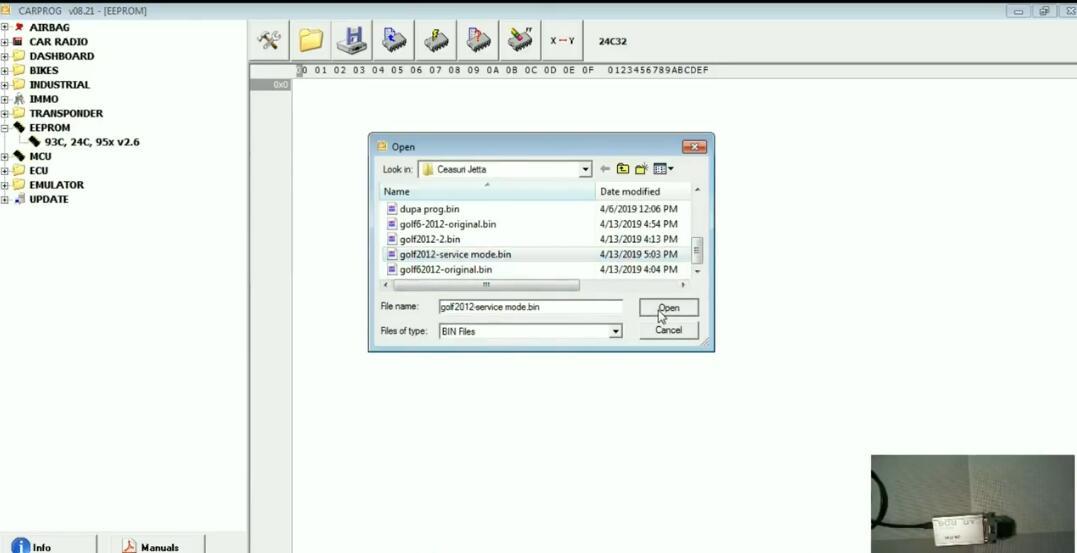

Open the file “golf 2102 service mode” saved above

Click here to write data

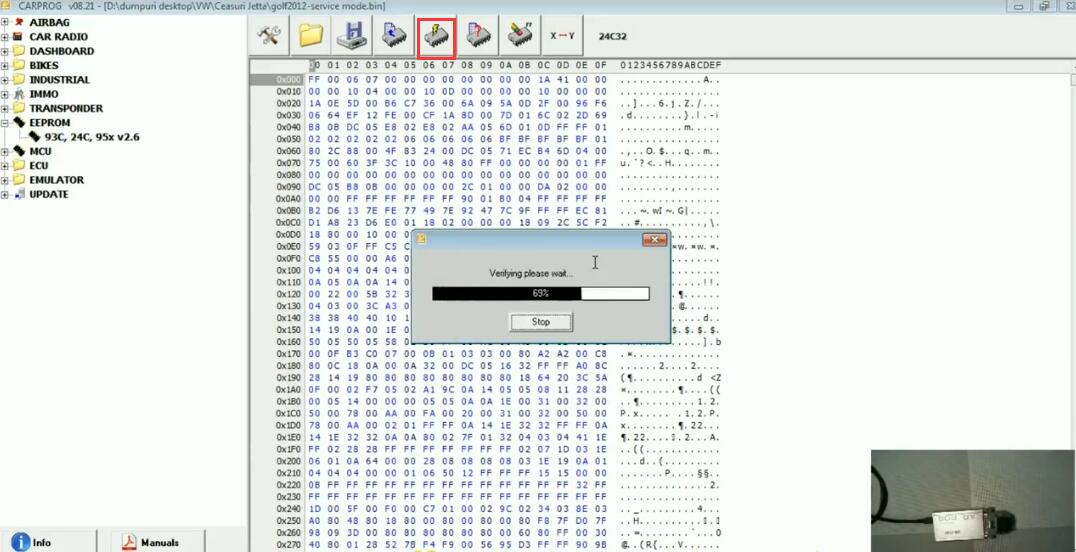

Verify OK

Exit CARPROG v08.21 software

Open “ABRITES Diagnostics for VW/AUDI/ SEAT/SKODA 24.0” software

Select “Enter Service mode by OBD II”

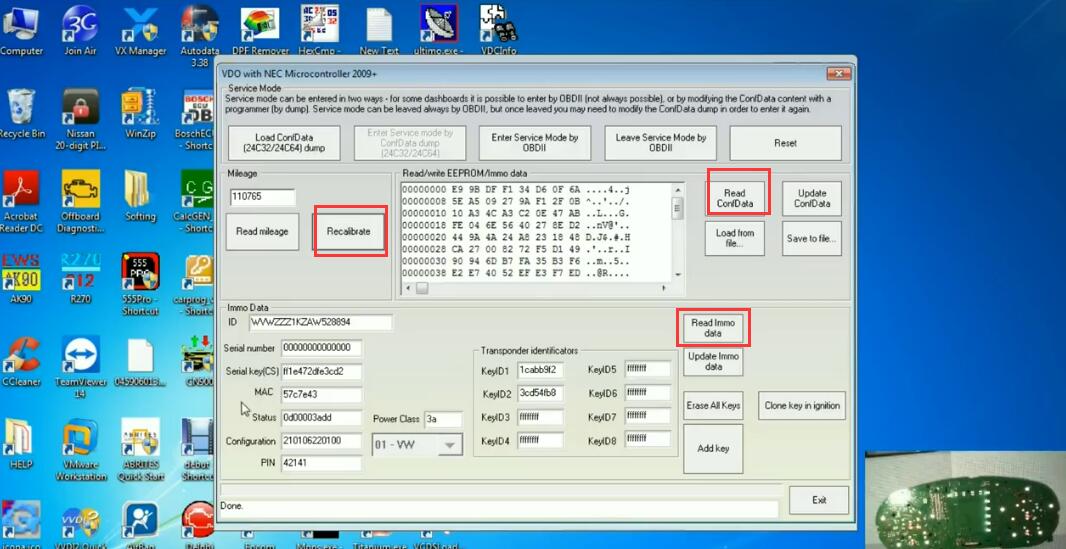

Click “Read mileage”

Change the mileage

Click “Read ConfData”

Then click “Read IMMO data”

Change ID code and click “Update IMMO data”

Click “Erase All Keys” and click “YES”

Click “Add key” to program new key

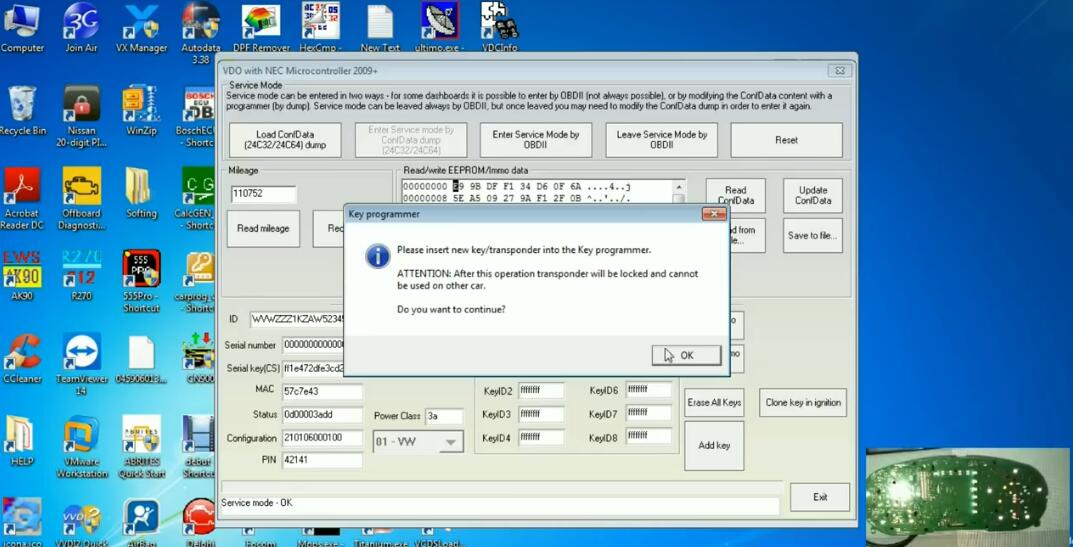

Note: Please insert new key/ transponder into the key programmer.

ATTENTION: After this operation transponder will be locked and cannot be used on other car. Do you want to continue?

Click “OK” to continue

Choose position and click “OK”

Click “Add key” again to repeat all the steps above

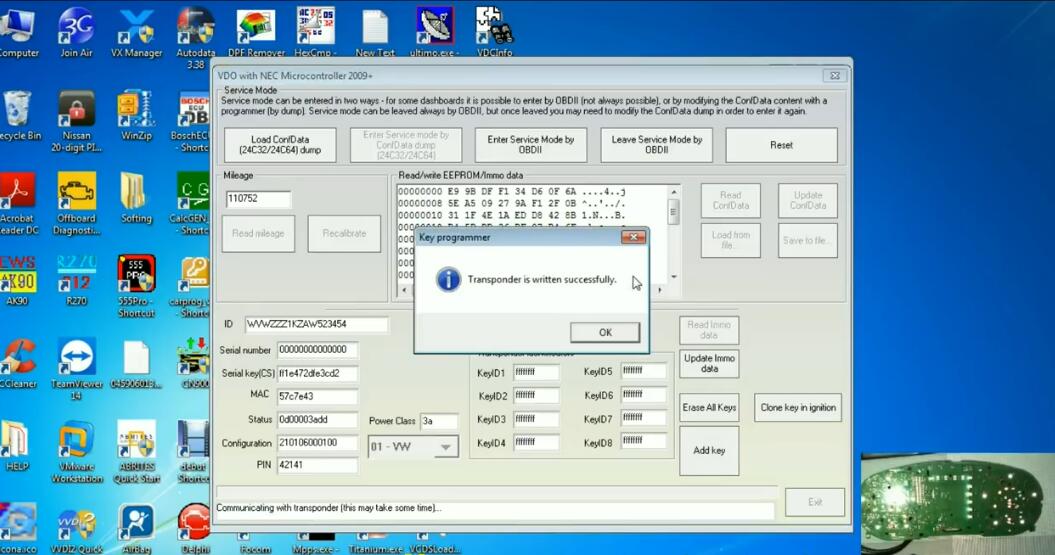

Transponder is written successfully

Click “Update IMMO data” to update

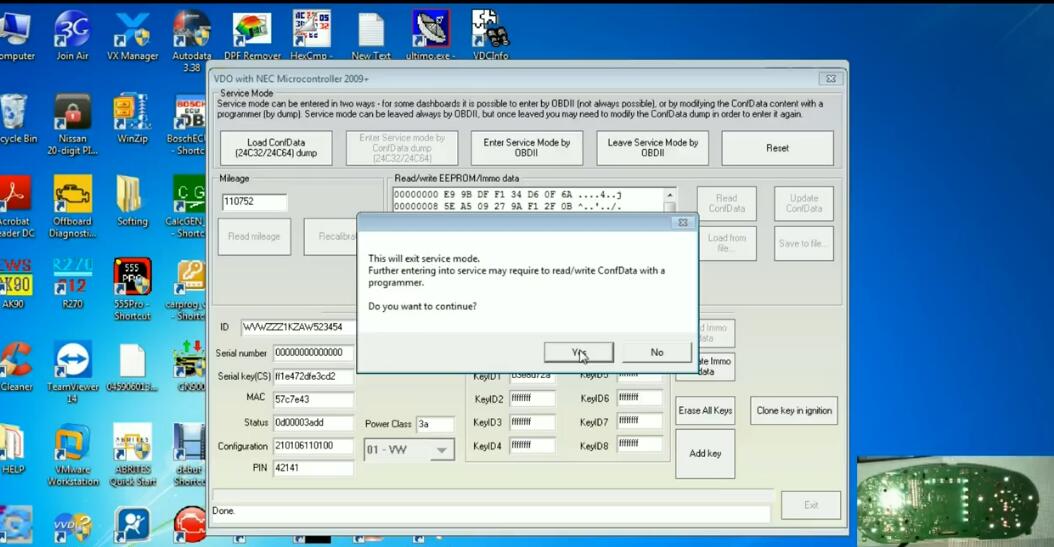

Pay attention to the prompt “This will exit service mode. Further entering into service may require to read/write ConfData with a programmer. Do you want to continue?”

Click “YES”

Exit

Go to “ABRITES Diagnostics for VW/AUDI/ SEAT/SKODA 24.0” software

Click “Guide Functions”-> Instrument Cluster”-> “Change Language”

Click “Next” to choose language you need

Return to “Instrument Cluster”, select “Seatbelt warning activation/deactivation”

Click “Next”

Select “Seatbelt warning inactivation/installed”

Note: This will change instrument cluster’s coding. Do you want to continue?”

Click “OK”

Write new configuration…

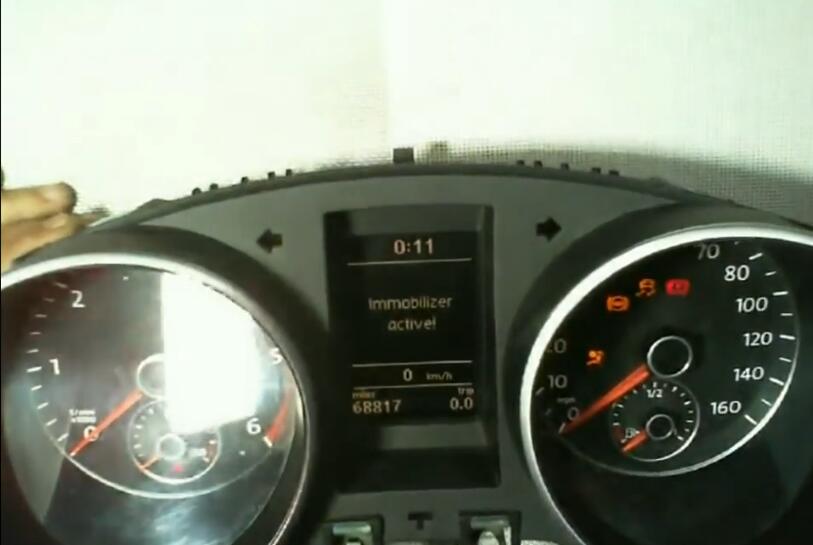

Install odometer and test it successfully

FVDI V2018 change Golf 6 2012 dash success!

Done!
