Launch X431 7, 8, 10 Inch Diagnostic Tablet Differences

Launch X431 will release 4 tablets with 7/8/10 inch screen soon, here we are going to compare them with competitions from XTOOL and Autel.

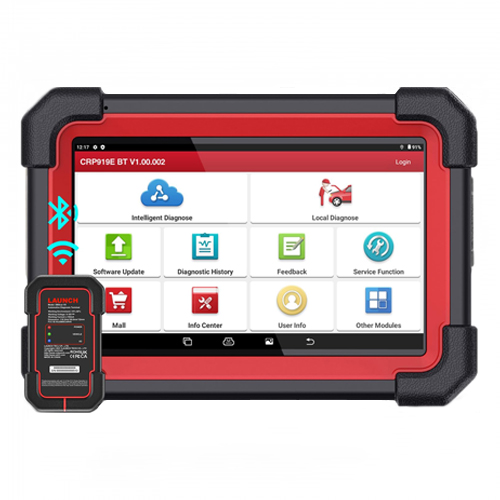

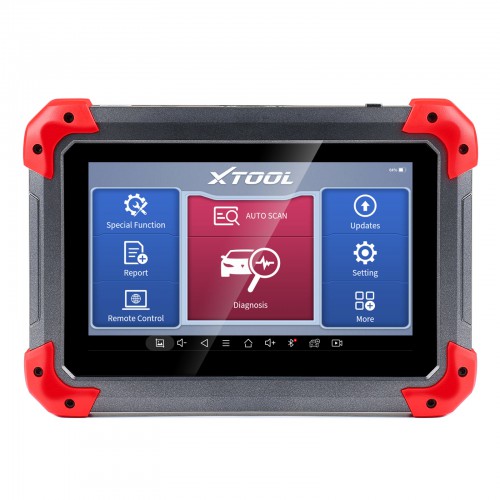

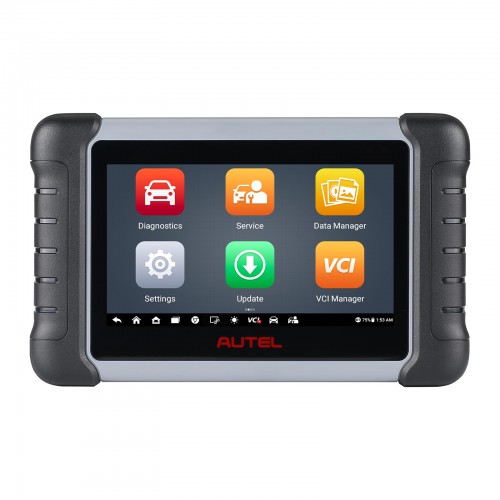

I.7-inch Wireless Tablets (XTOOL D7 vs. Autel MK808BT PRO vs. X431 CRP919BT):

ITEM	XTOOL D7	Autel MK808BT PRO	X431 CRP919 BT
Firmware
VCI	–	MaxiVCI Mini	DBSCar VII
CPU	1.6GHz 4-core	1.8GHz 4-core	2.0GHz 4-core
OS	Android 10.0	Android 11.0	Android 10.0
RAM	2GB	4GB	4GB
Memory	32GB	64GB	64GB
Screen	7-inch	7-inch	7-inch
Resolutoin	1024*600	1024*600	1024*600
Rear Camera	–	–	8Million Pixels
Temperature	-20 to 60℃	0 to 50℃	0 to 50℃
Connection	Wired	Bluetooth/USB	Bluetooth/USB
Size	280*150*29mm	270.8*176*36mm	213.8*151*39.5mm
Battery	4000mAh, 3.7V	5000mAh, 3.7V	6300mAh, 7.6V
Software
All-system Diagnosis	√	√	√
Auto VIN	√	√	√
Special Function	36	28	31
Active Test	√	√	√
Guided Function	×	×	√
ECU Coding	√	√	√
Repair Data	×	√	√
Remote Diagnosis	√	√	×
DOIP	×	×	×(add soon)
CAN FD	√(adapter is required)	√	√
Online Feedback	×	√	√
Software Mall	×	×	√
Key Programming	√(IMMO Module is required)	√(Only IMMO in Special Function)	√(Only IMMO in Special Function)
Digital Inspection	×	√	√
Battery Test	×	√	×
FCA	×	√	√

Summary:

1.MK808BT PRO has a newer operating system, and CRP919BT larger battery capacity

2.Only CRP919BT supports guided function and DOIP protocol

3.Only MK808BT PRO supports battery test

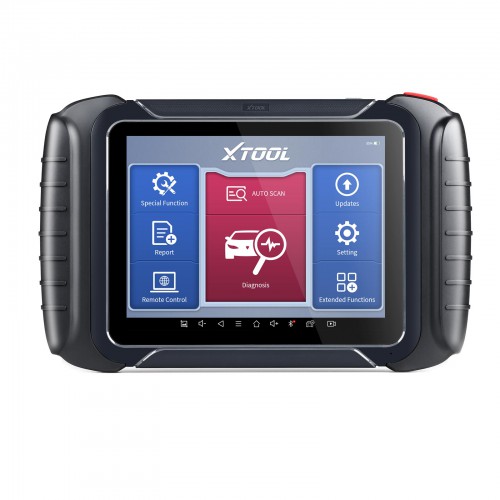

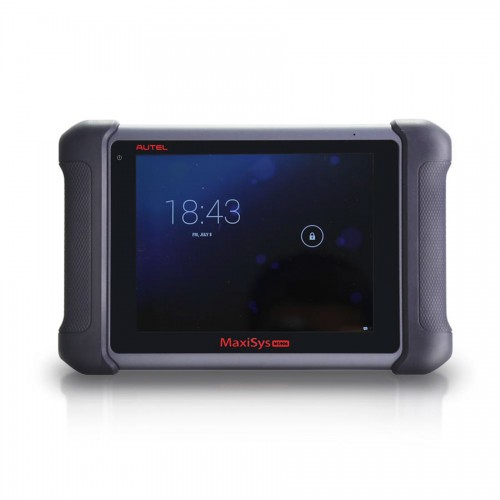

II.8-inch Wired Tablets (XTOOL D8 vs. Autel Autel MaxiCOM MS906 vs. X431 PROS ELITE):

ITEM	XTOOL D8	Autel MaxiCOM MS906	X431 PROS ELITE
Image			null
Firmware
VCI	–	–	–
CPU	1.8GHz 4-core	1.3GHz+1.7GHz 6-core	2.0GHz 4-core
OS	Android 5.1	Android 4.4.2	Android 10.0
RAM	2GB	2GB	4GB
Memory	64GB	32GB	64GB
Screen	8-inch	8-inch	8-inch
Resolutoin	1024*768	1024*768	1280*800
Rear Camera	–	–	–
Temperature	-10 to 50℃	-10 to 50℃	0 to 50℃
Connection	Wired	Wired	Wired
Size	274*175*33.8mm	270.8*176*36mm	256*172*40.6mm
Battery	10000mAh, 3.7V	5000mAh, 3.7V	6000mAh, 7.6V
Software
All-system Diagnosis	√	√	√
Special Function	38	36	32
Active Test	√	√	√
Guided Function	×	×	√
ECU Coding	√	√	√
Repair Data	×	√	√
Remote Diagnosis	√	√	√
DOIP	×	×	√
CAN FD	√	×	√
Online Feedback	×	√	√
Software Mall	×	×	√
ADAS	×	×	√
TPMS	×	×	√
Key Programming	√	√(Only IMMO in Special Function)	√(Add Soon)
IMMO Programming	×	×	√
Oscilloscope	×	×	√
Sensor	×	×	√
Digital Inspection	√	×	√
Battery Test	×	×	√
FCA	×	√	√

Summary:

1.XTOOL D8 has the largest battery capacity

2.X431 PROS ELITE works with far more extended modules for more functions than XTOOL and Autel

3.Only X431 PROS ELITE supports DOIP protocol

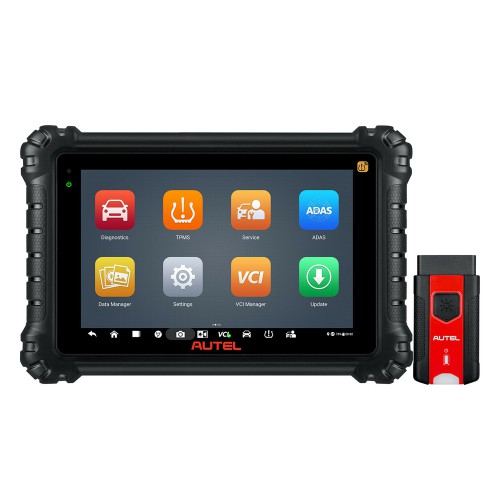

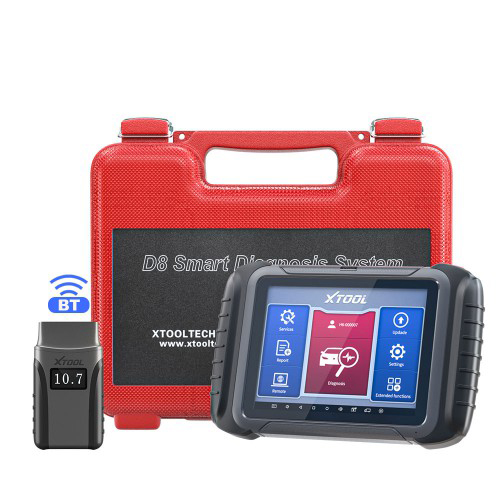

III.8-inch Wireless Tablets (XTOOL D8 BT vs. Autel MaxiCOM MS906PRO vs. X431 PRO DYNO):

ITEM	XTOOL D8 BT	Autel MaxiCOM MS906PRO	X431 PRO DYNO
Image			Null
Firmware
VCI	IVCI-II	V200	DBSCar VII
CPU	1.8GHz 4-core	2.2GHz+1.8GHz 8-core	2.0GHz 4-core
OS	Android 5.1	Android 10.0	Android 10.0
RAM	2GB	4GB	4GB
Memory	64GB	128GB	64GB
Screen	8-inch	8-inch	8-inch
Resolutoin	1024*768	1920*1200	1280*800
Front Camera		16Million Pixels
Rear Camera	8Million Pixels	16Million Pixels	8Million Pixels
Temperature	-10 to 50℃	0 to 50℃	0 to 50℃
Connection	Bluetooth/USB	Bluetooth/USB	Bluetooth/USB
Size	274*175*33.8mm	260*170*30mm	234*166*39.5mm
Battery	10000mAh, 3.7V	11600mAh, 3.7V	6300mAh, 7.6V
Software
All-system Diagnosis	√	√	√
Special Function	38	36	37
Active Test	√	√	√
Guided Function	√	√	√
ECU Coding	√	√	√
Repair Data	×	√	√
Remote Diagnosis	√	√	√
DOIP	×	√	√(Add Soon)
CAN FD	√	√	√
Online Feedback	×	√	√
Software Mall	×	×	√
ADAS	×	√	√
TPMS	×	×	√
Key Programming	√	√(Only IMMO in Special Function)	√(Add Soon)
IMMO Programming	×	×	√
Oscilloscope	×	√	√
Sensor	×	×	√
Digital Inspection	√	√	√
Battery Test	×	√	√
FCA	×	√	√

Summary:

1.Autel has the most powerful firmware including memory, battery capacity, camera…

2.Only Autel supports DOIP now because of V200 VCI

3.X431 will be added key& immo programming function

4.Autel and X431 support DOIP, CAN FD, FCA…

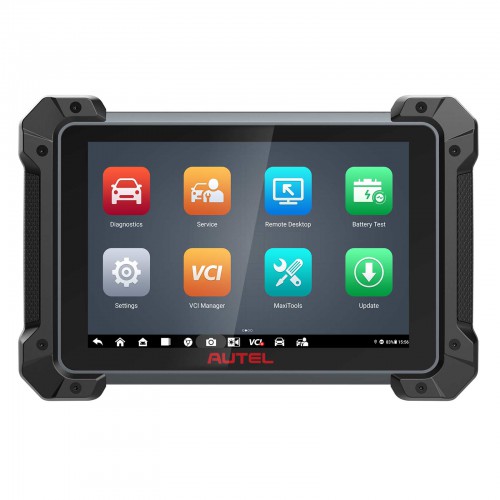

IV.10-inch Wireless Tablets (XTOOL D9 PRO vs. Autel MaxiCOM MK908 II vs. X431 PRO3 APEX):

ITEM	XTOOL D9 PRO	Autel MaxiCOM MK908 II	X431 PRO3 APEX
Image			Null
Firmware
VCI	XVCI Max	V200	DBSCar VII
CPU	1.8GHz 4-core	2.2GHz+1.8GHz 8-core	2.0GHz 4-core
OS	Android 10.0	Android 10.0	Android 10.0
RAM	2GB	4GB	4GB
Memory	128GB	128GB	64GB
Screen	10-inch	10-inch	10-inch
Resolutoin	1024*768	1920*1200	1280*800
Front Camera		16Million Pixels
Rear Camera	8Million Pixels	16Million Pixels	8Million Pixels
Temperature	-10 to 50℃	0 to 50℃	0 to 50℃
Connection	Bluetooth/USB	Bluetooth/USB	Bluetooth/USB
Size	274*175*33.8mm	260*170*30mm	274*190.5*39.5mm
Battery	10000mAh, 3.7V	15000mAh, 3.7V	6300mAh, 7.6V
Software
All-system Diagnosis	√	√	√
Special Function	42	38	37
Active Test	√	√	√
Guided Function	√	√	√
ECU Coding	√	√	√
Repair Data	√	√	√
Remote Diagnosis	√	√	√
DOIP	√	√	√(Add Soon)
CAN FD	√	√	√
Online Feedback	×	√	√
Topology	√	×	√
Software Mall	×	×	√
ADAS	×	√	√
TPMS	×	×	√
Key Programming	√	√(Only IMMO in Special Function)	√(Add Soon)
IMMO Programming	×	×	√
Oscilloscope	×	√	√
Sensor	×	×	√
Digital Inspection	√	√	√
Battery Test	×	√	√
FCA	×	√	√

Summary:

1.Autel has the most powerful firmware including memory, battery capacity, camera…

2.Only Autel supports DOIP now because of V200 VCI

3.X431 will be added key& immo programming function

4.Only XTOOL don’t support FCA
