Looking for a best tool to program key on VW Audi 4th 5th IMMO? Here shows you top 4 key programmer after compare and analysis.
- XTOOL X-100 PAD2 with KC100 Adapter
- OBDSTAR RFID Code Reader Adapter
- JMD Handy Baby support only 4th IMMO programming
- Xhorse VVDI2 +4th 5th Immo authorization service and Xhorse VVDI2+ 5th IMMO authorization service

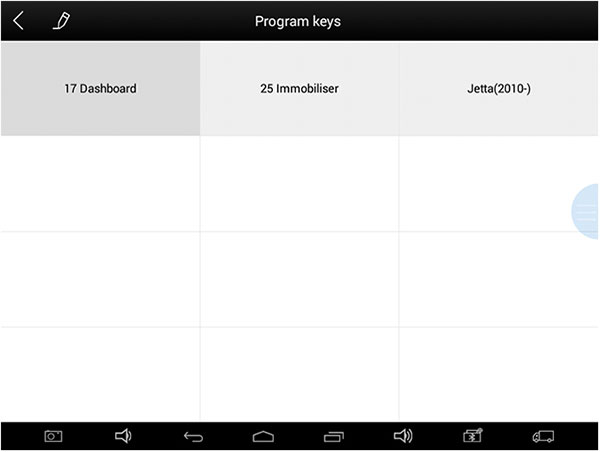

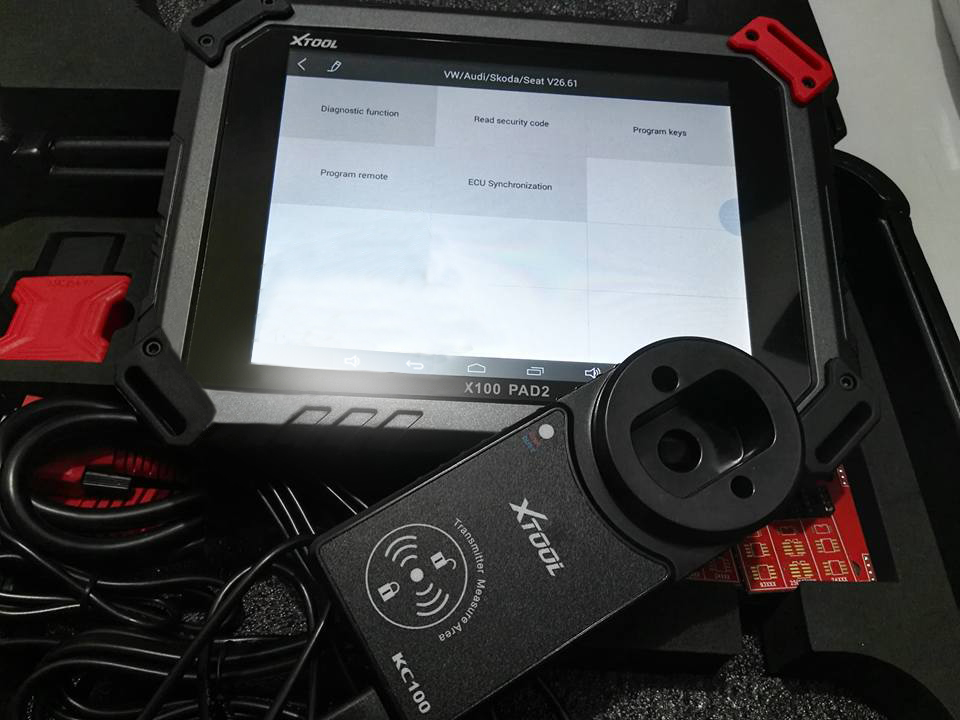

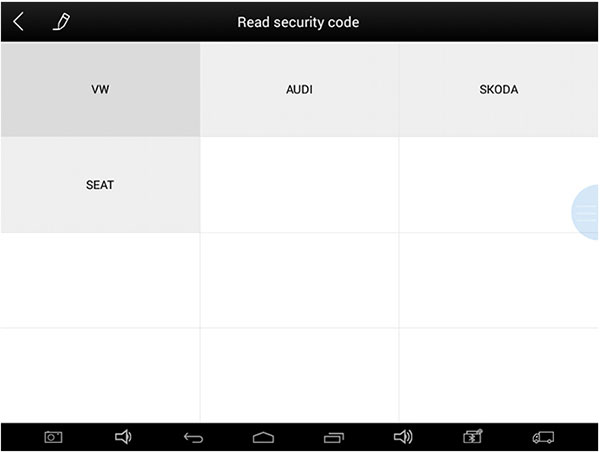

XTOOL X100 PAD2 full package with KC100 adapter
Matched Dashboard Type for 4th ,5th immobilizer of VW/Audi/Seat/Skoda:
CDC24C32,NEC24C32,9S12,NEC24C64,NEC24C64 color screen, Jiangsen, NEC95320, NEC24C64 white screen.
Here 7 pictures on How to use KC100 adapter?
OBDSTAR RFID Adapter works together with any of OBDSTAR machines i.e Key Master DP/ X300 DP/ DP PAD/ Key Master/ X300 Pro3/ X100 Pro. Then to work on:
- CDC+24C32 Types
- NEC+24C32 Types
- 2013 Johnson Types;
- Motorola 9S12XHZ512 Types;
- NEC+24C64 Color Screen- Type 1
- NEC+24C64 Color Screen- Type 2
- NEC+24C64 White Screen Type
- NEC+24C64(VDO -12)Type
- NEC+95320 Type
- NEC+35XX Type
- Magotan/ CC Type
- Q7/A6L(C6)9S12DT(G)128 Type
- Q7/A6L(C6)9S12DT(G)256 Type
- Lifan Marvell models are added, which includes Add/Clear Keys, Program/Delete ESCL functions.
- Jiangling MU-X models are added as key programming and key clearing.
Here attach one Youtube Video on how to use OBDSTAR RFID Adapter

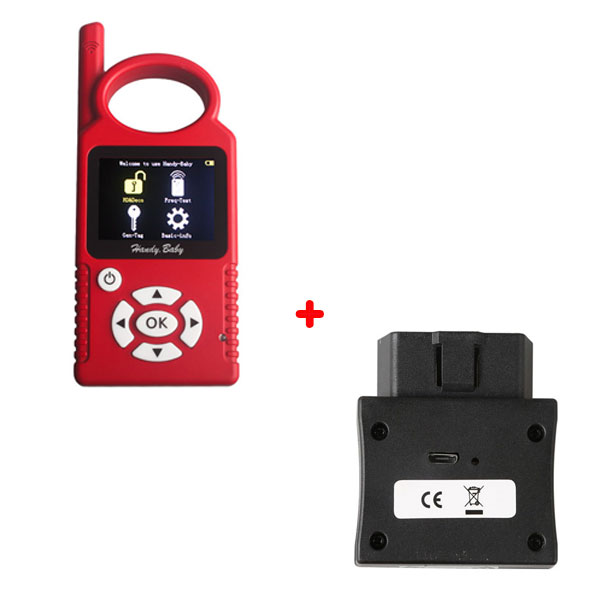

Top 3: Handy Baby key programmer + JMD Assistant Handy baby OBD Adapter = 4th IMMO programming.
To program VAG 4th IMMO, you need an extra JMD Assistant Handy baby OBD Adapter, JMD Assistant is an OBD model to help Handy Baby to read out data from Volkswagen cars, and it needs your Handy Baby upgrade to at least version 8.0.0.
JMD Assistant reads data from Volkswagen cars only and won ‘t write any data to cars, even in all key lost , so it won ‘t be locked when the car connect to the server in 4S. Handy Baby reads data from JMD Assistant with RF, and it no needs any cables or computer during your work.
Both VAG 4th 5th Immo OK

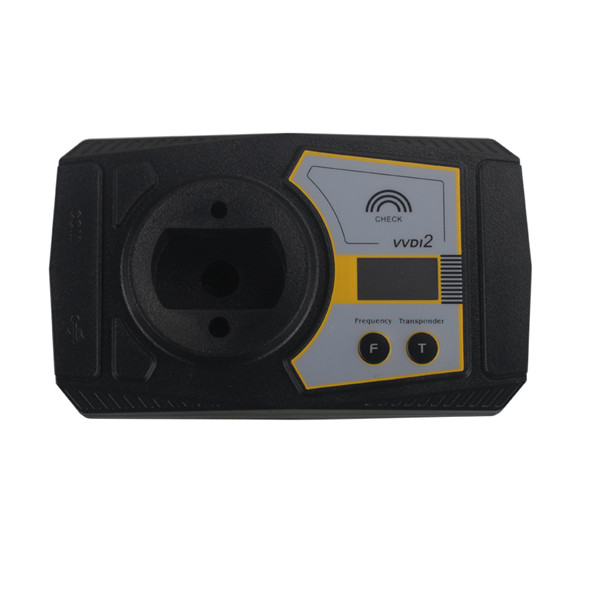

1) vvdi2 vw 4th immo authorization:
– VAG with 4th immobilizer system
VW/Audi/Skoda/Seat/Porsche/Bentley vehicles all have 4th immobilizer car.
For Immo status, go to “Key Learn ->Key Learn”
–Passat /CC with 4th immobilizer system
Passat/CC has 2 transponder types: one is MEGAMOS 48, another one is HITAG2 (46 Transponder). Before make key you must select transponder type 48 or 46. This type support OBD lost all key, Detail can be found in Key Learn->Key Learn->OBD Lost All Key method.
–Touareg/Phaeton/A8/Cayenne/Bentley with 4th immobilizer system
This type use HITAG2 (46 Transponder).
–Audi A6/Q7/Allroad with 4th immobilizer system
This type use MEGAMOS 8E transponder. This type support OBD lost all key, Detail can be found in Key Learn->Key Learn->OBD Lost All Key method
2) 5th immobilizer system immo authorization:
This type use VAG immo5 transponder or OEM key support following cars: A4 (2009-), A5, Q5, A6 (2012-), A7, A8(2011-), Touareg (2011-) to make a dealer or learn keys.
Xhorse VVDI2 VAG support the 4th and 5th immobilizer systems
