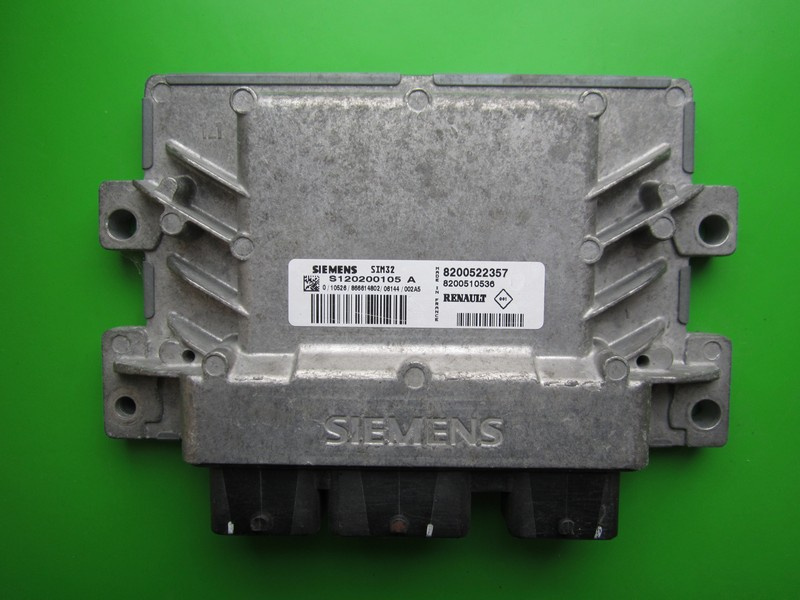

Can KT200 Read SIM32 Clio III on Bench by OBD with Godiag?

One customer wonder if KT200 Tool could read calculator Sim32 Clio 3 1.2 on the table by obd with godiag cable?



Answer:

Test, if not work, do gateway/ immo clearance.

KT200 only support SIM32 on BDM/ JTAG mode.

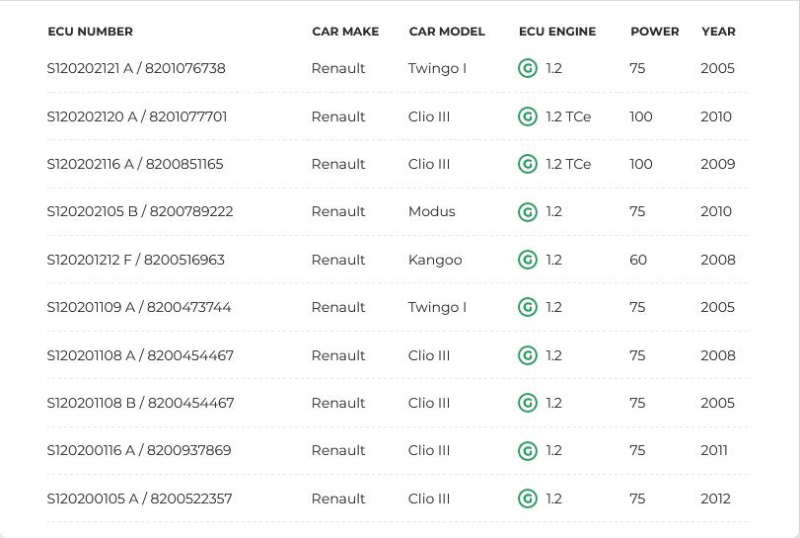

ECU Numbers List:

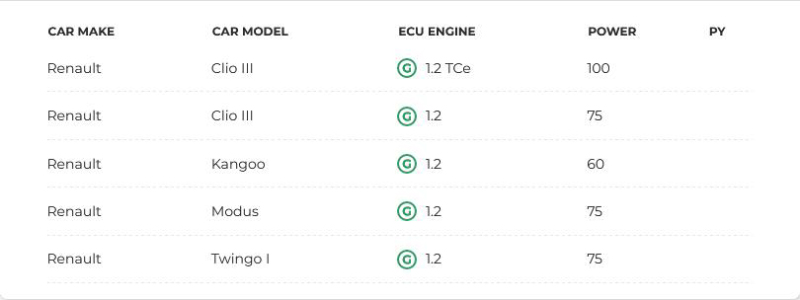

Car List:

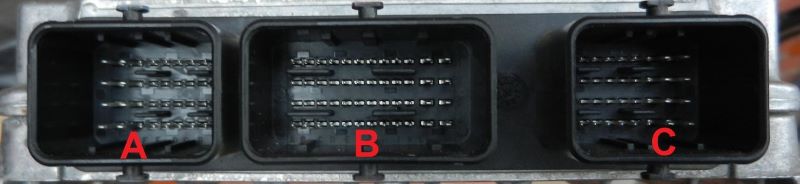

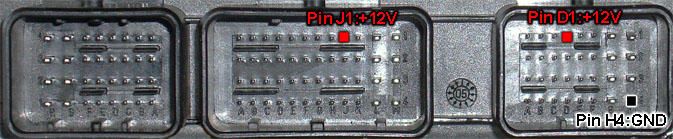

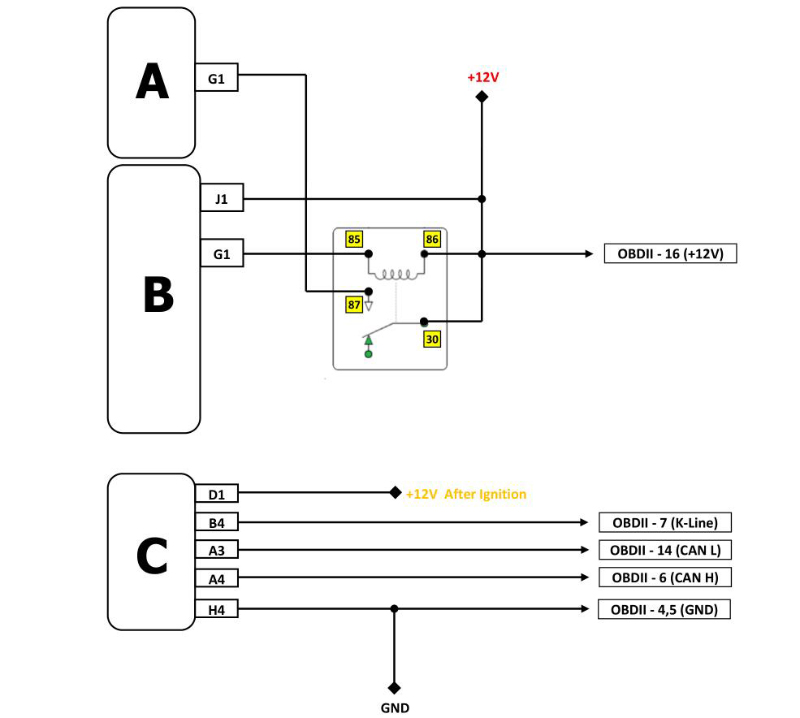

Siemens SIM32 Bench Pinout:

Try to read it with Godiag Breakout Box and Full-protocol Cable.

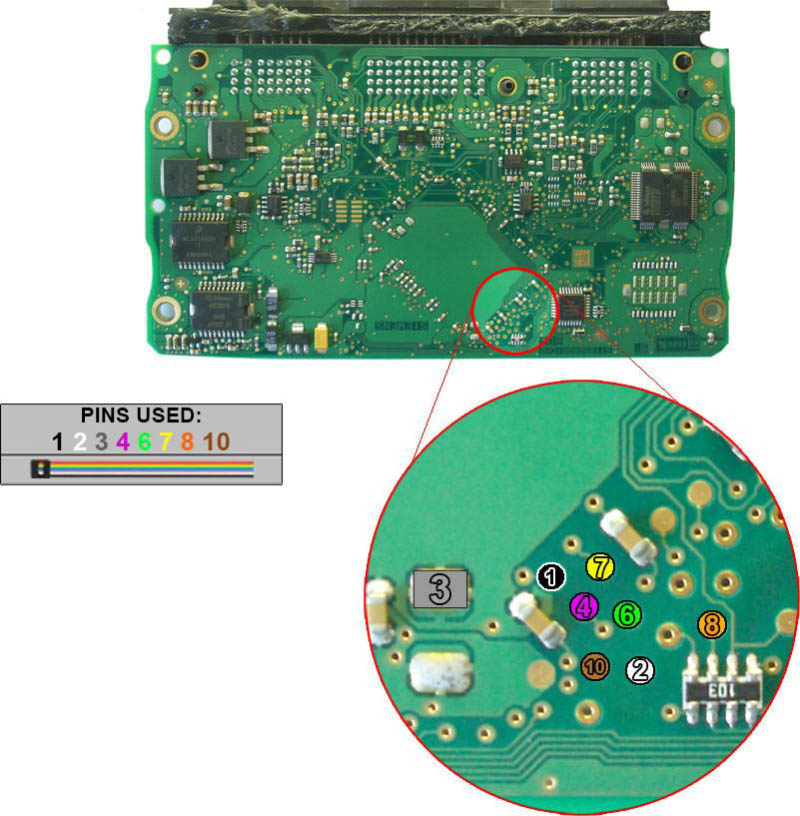

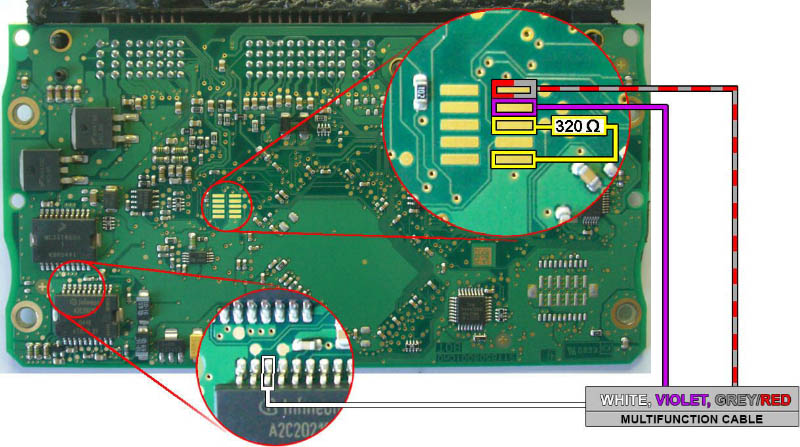

Siemens SIM32 JTAG Pinout:



Kit to use:

– Multifunction cable

– Flat cable

– 1 resistance 320Ω



Driver to Read:

– BDM / JTAG MODE

– JTAG RENESAS

– AUD SH xxxxx



Driver to Write:

– TOOL BOOT

– RENESAS

– SH xxxxx BOOT MODE
