KT200 Read EDC16C3 ERROR SET2 Solution

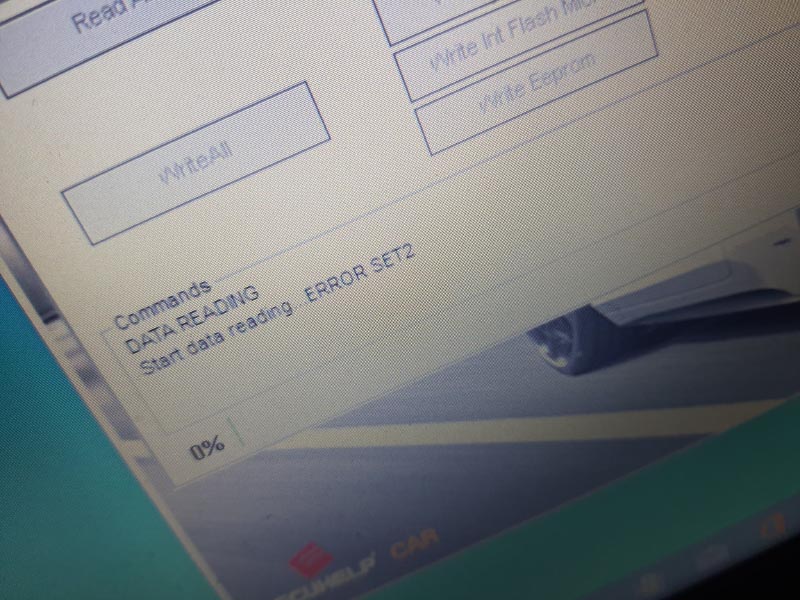

One user gave feedback that his KT200 Full License showed ERROR SET2 when reading PSA EDC16C3.

Here Cardiagtool tech gave the

Solution:

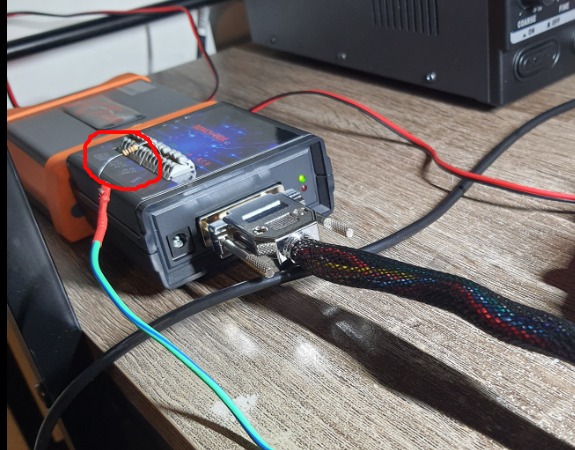

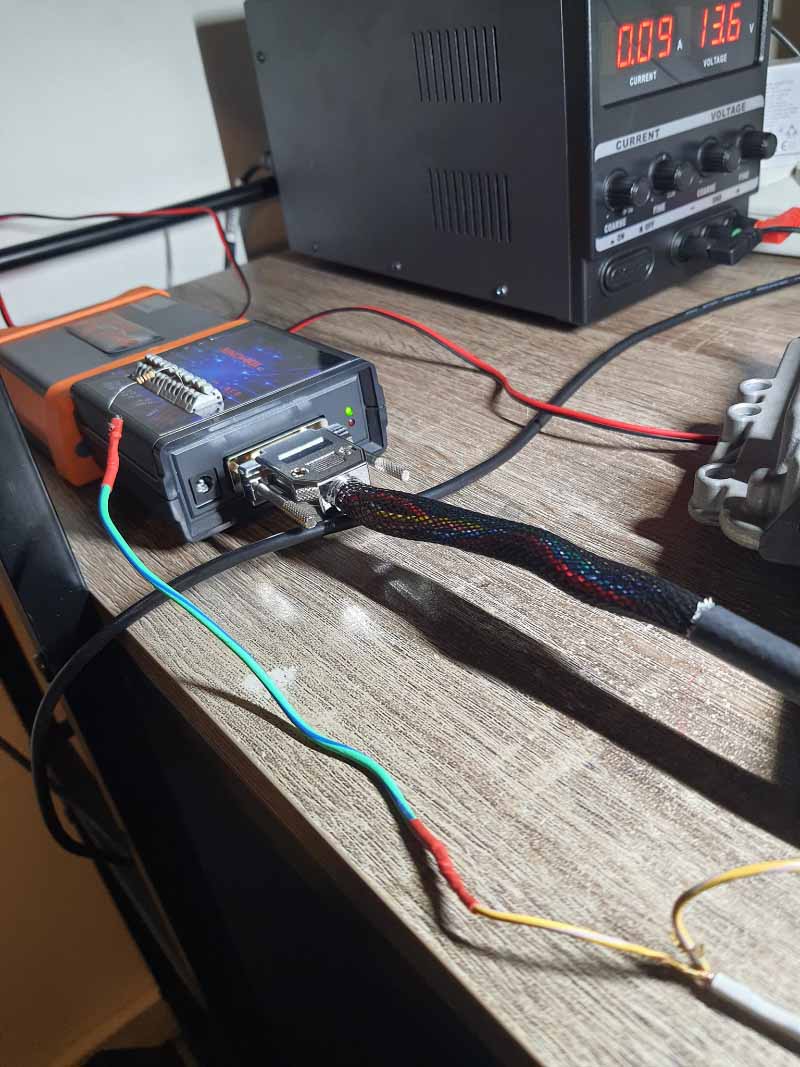

Remove the resistor, which is built into the bench box.

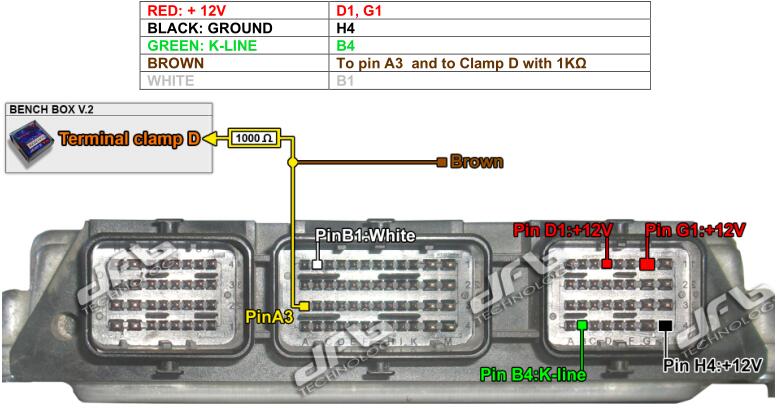

Same connection only the resistor is not required.

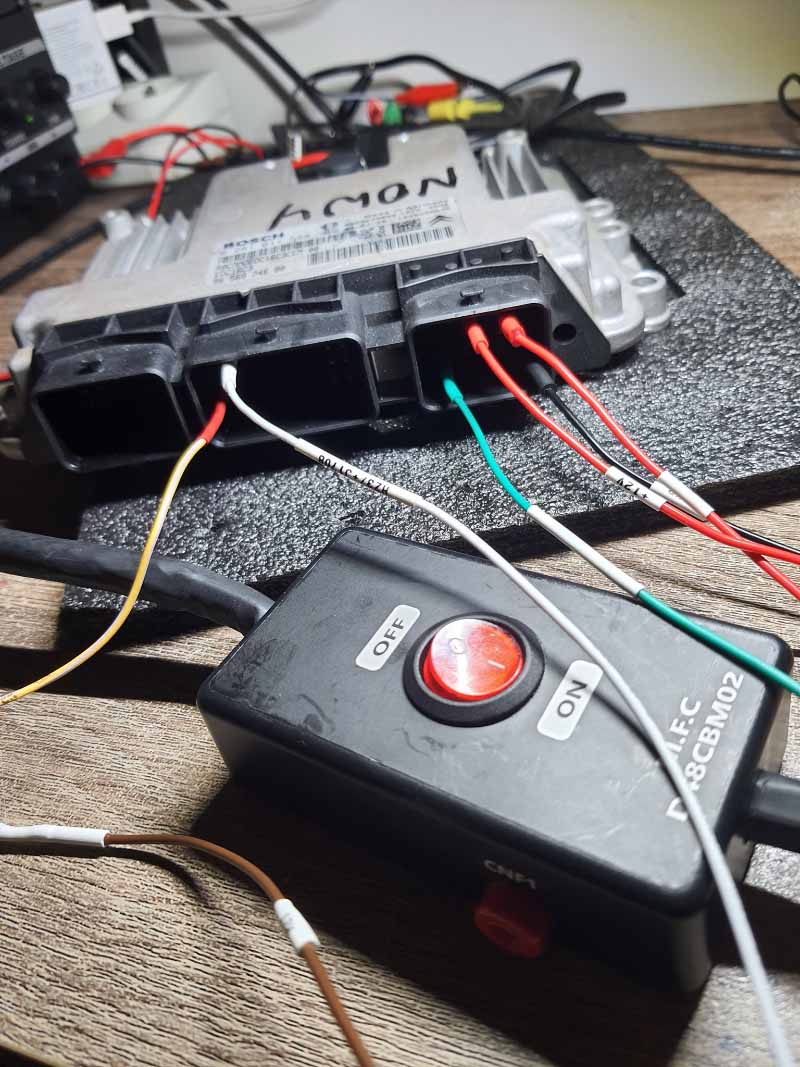

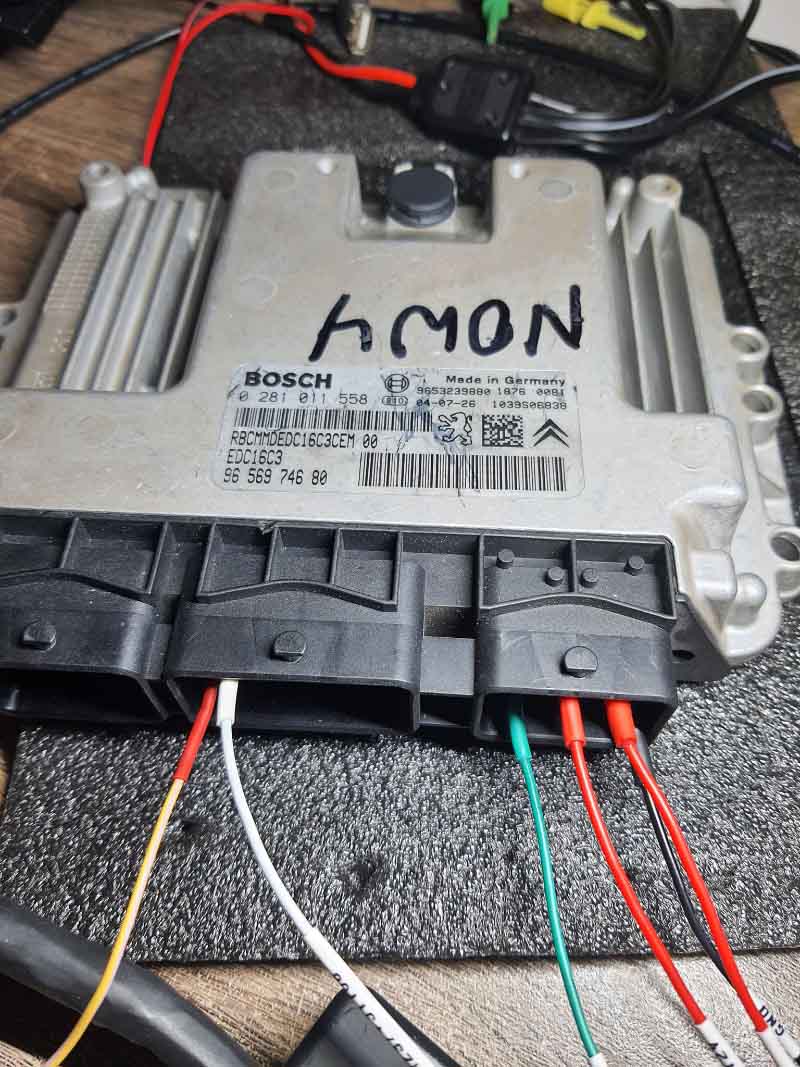

(Brown cable directly to ECU)

Select Driver:

– BENCH MODE

– [brand]

– MPC555/6 – [brand]

– EDC16 C3



Hope this could help!
