Use Star Diagnosis to Reset Fuel Mixture Adaptations on Mercedes 211

Hey guys, today I will show you how to reset the fuel mixture adaptations for Mercedes ME9.7 with MB Star SDC4 / Star C5.

Why need to reset the fuel mixture adaptations?

After carrying out preventive work, such as cleaning the injectors and cleaning the throttle valve that affected the mixture formation, therefore you need to reset the adaptations.

Step-by-step Guide:

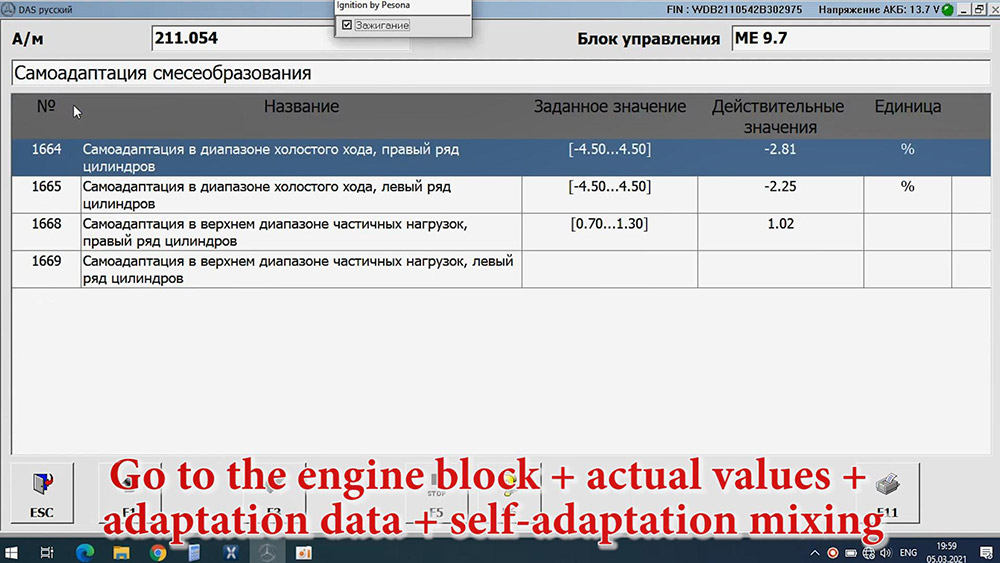

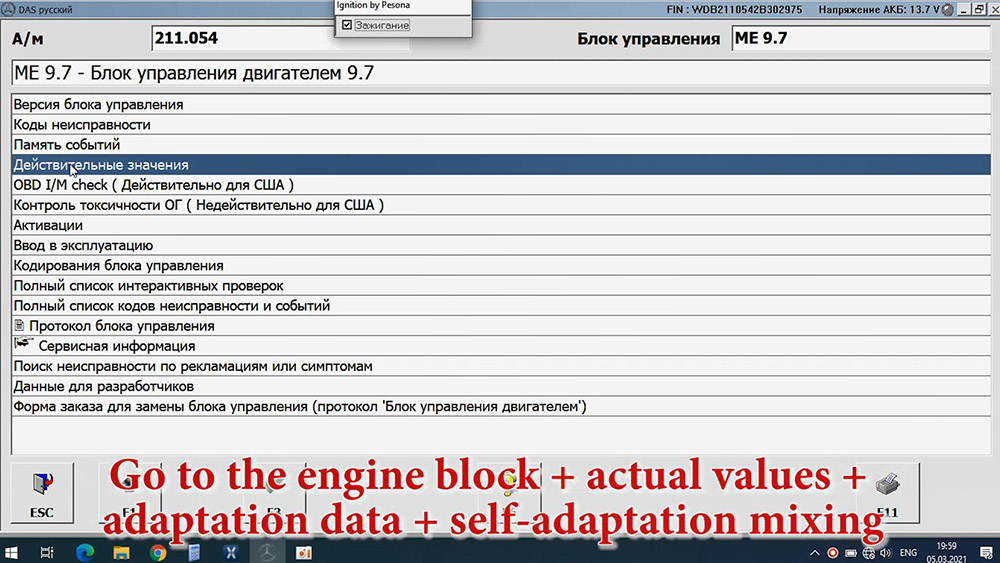

Go to the engine block + actual values + adaptation data + self-adaptation mixing.

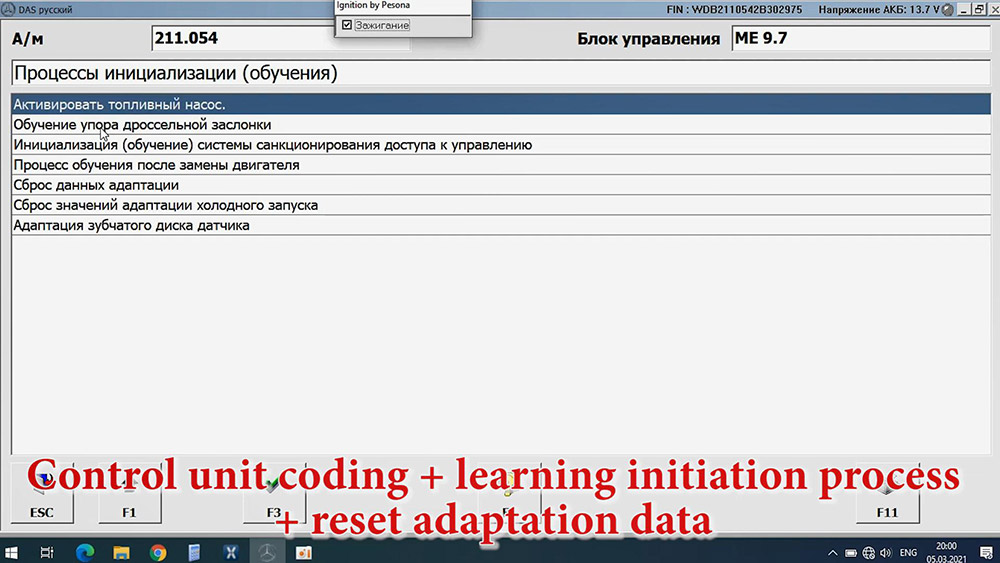

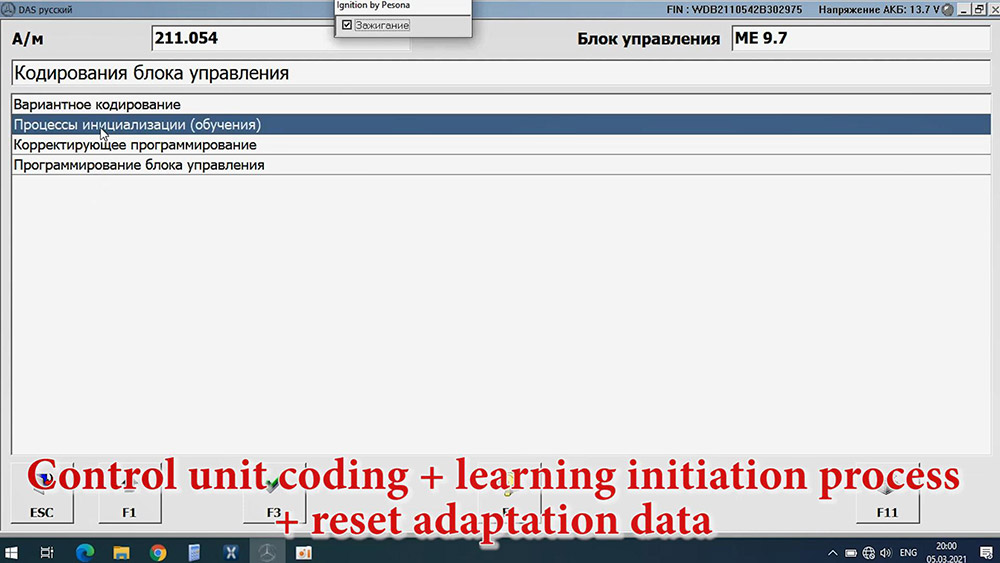

Control unit coding + learning initiation process + reset adaptation data.

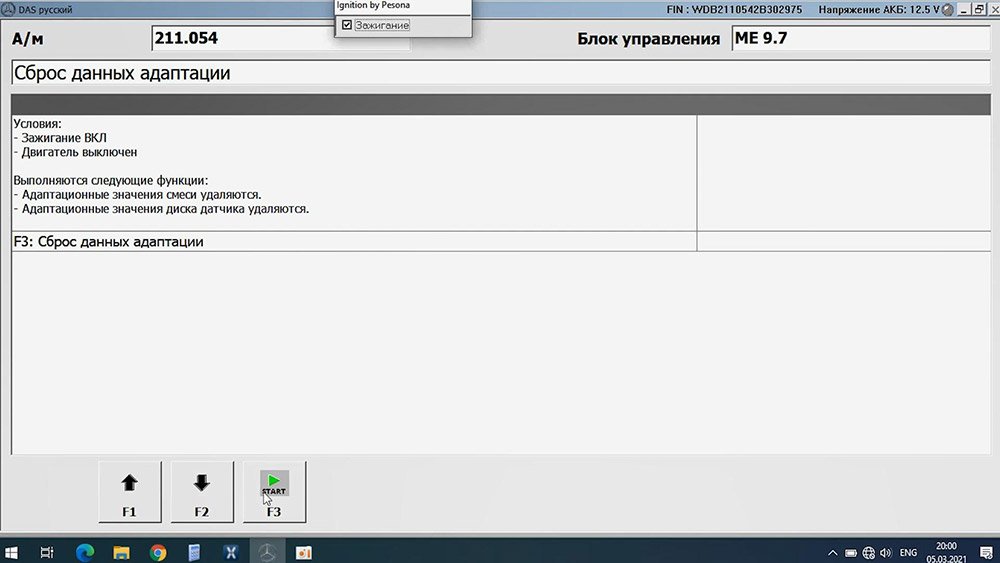

Click on “F2” and then “Start”.

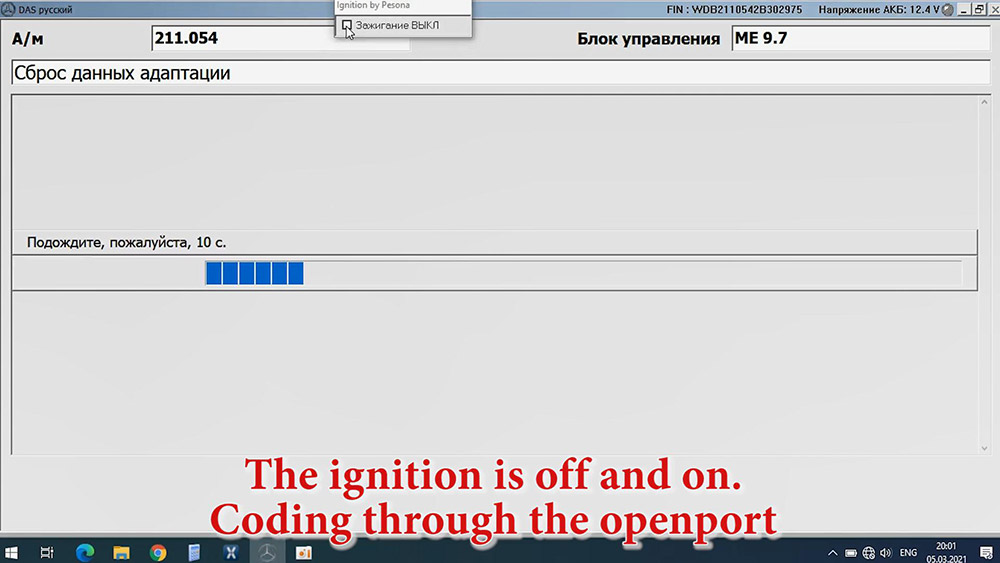

Then “F1”, the ignition is off and on. Coding through the openport.

Press “F1” to check the details.

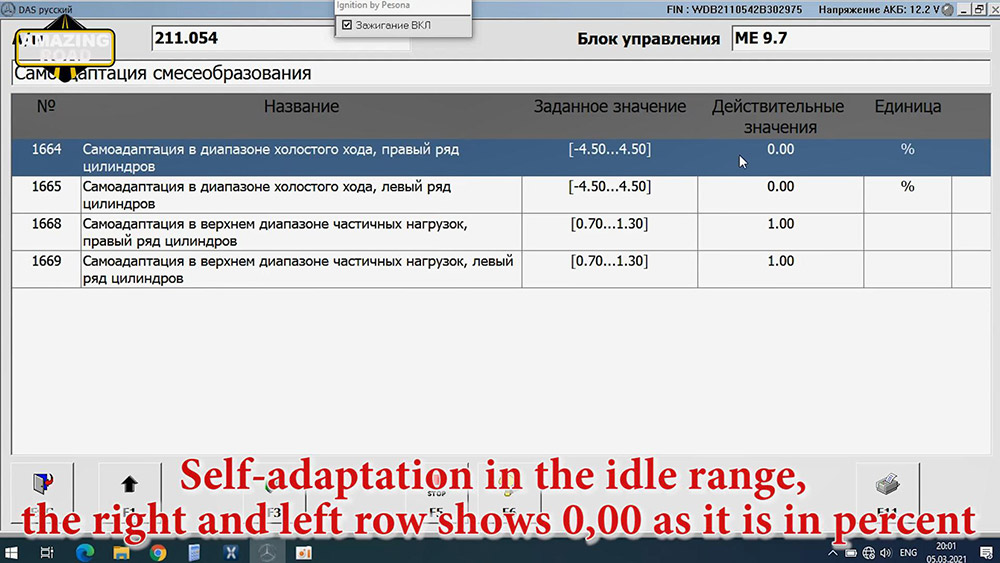

Self-adaptation in the idle range, the right and left row shows 0,00 as it is in percent.

Self-adaptation in the upper range of partial loads, right and left shows 1, this is in caificents.

Alright, for any question, contact at www.uobdii.com, and if you need MB Star SDC4 / Star C5, also contact them.

Thank you all and good luck on the road.
