Question:
Possible to read SID307? I have KT200 and PCMtuner.
Answer:
Both work.
KT200 support Dacia/Mercedes/Nissan/Renault SID307 by Boot mode;
PCMtuner support Renault/ Nissan by OBD mode.
Module 25
Renault/Nissan 1.5dCi
1.5L dCi Delphi DCM 1.2 (ST10/512KB)
1.5L dCi Delphi DCM 3.4 (SH7059/1536KB)
1.5L dCi SID 301/303/304 (MPC562/2MB)
1.5L dCi SID 305/306 (TC1766/1504KB)

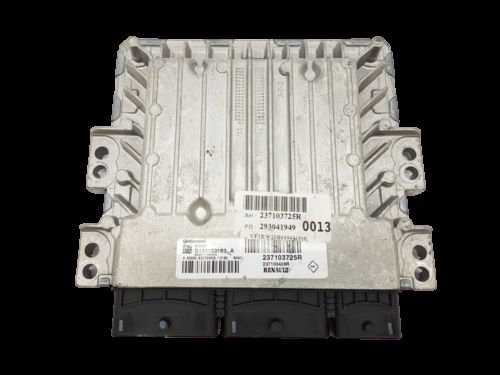

1.5L dCi SID 307 (TC1767/2MB)
2.3L dCi SID 309 (TC1767/2MB)
Nissan Juke 1.5L dCi SID 310 (TC1767/2MB)
Reading, writing, checksum correction.

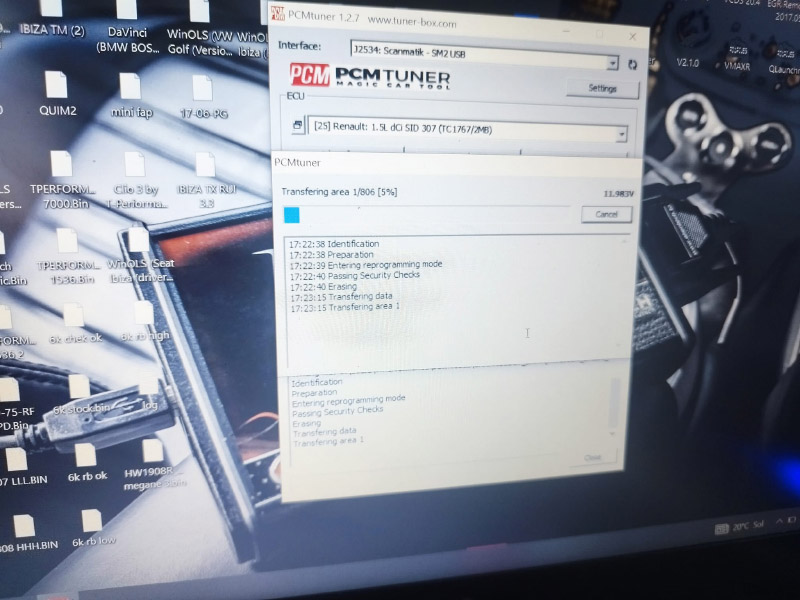

Review: Megane 3 1.5 DCI sid307 read write via obd ok

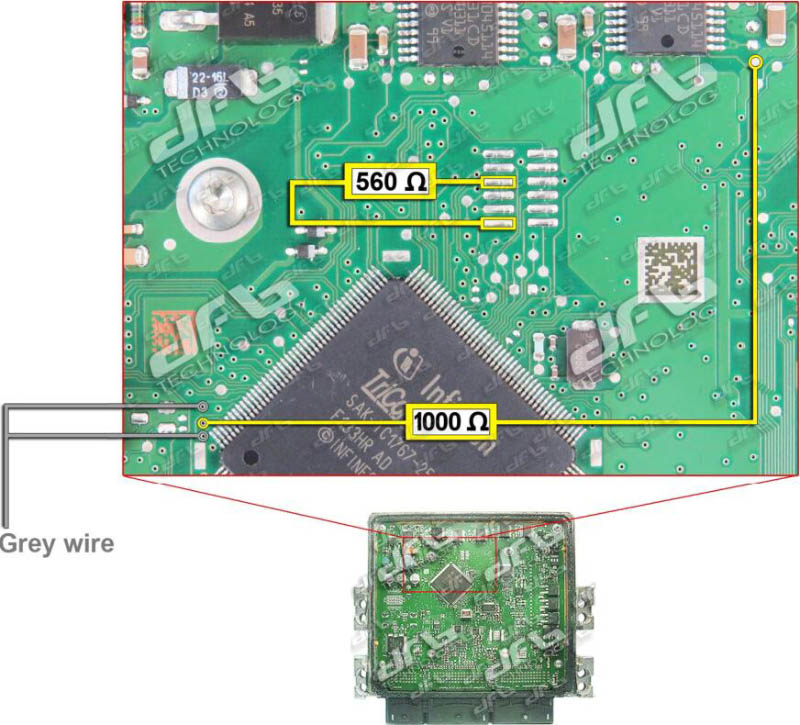

Tools:
Multifunction cable
1000 Ω Resistor*1
560 Ω Resistor*1
OBD Cable
1)Read Password
Connect device to car via OBD port.
Select Driver:
TOOLS BOOT MODE
→ INFINEON TRICORE Tool Password
→ OBD PASSWORD SID307
RENAULT – NISSAN – MERCEDES
→ Click on “Find Password” and follow the software messages.

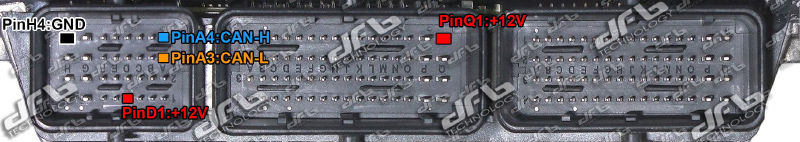

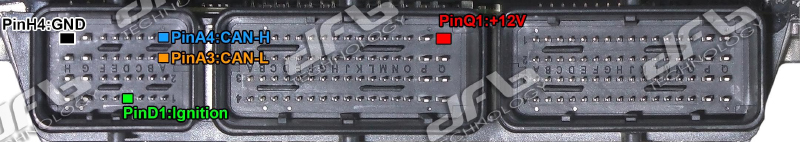

*For some models, we can read password on bench as pinout below:
2)R/W
Select Driver:
TOOLS BOOT MODE
→ INFINEON TRICORE Boot
→ SAK TC1767
Both work good, hope this could help!
