How to Connect FoxFlash and Read MED9.1 on Bench?

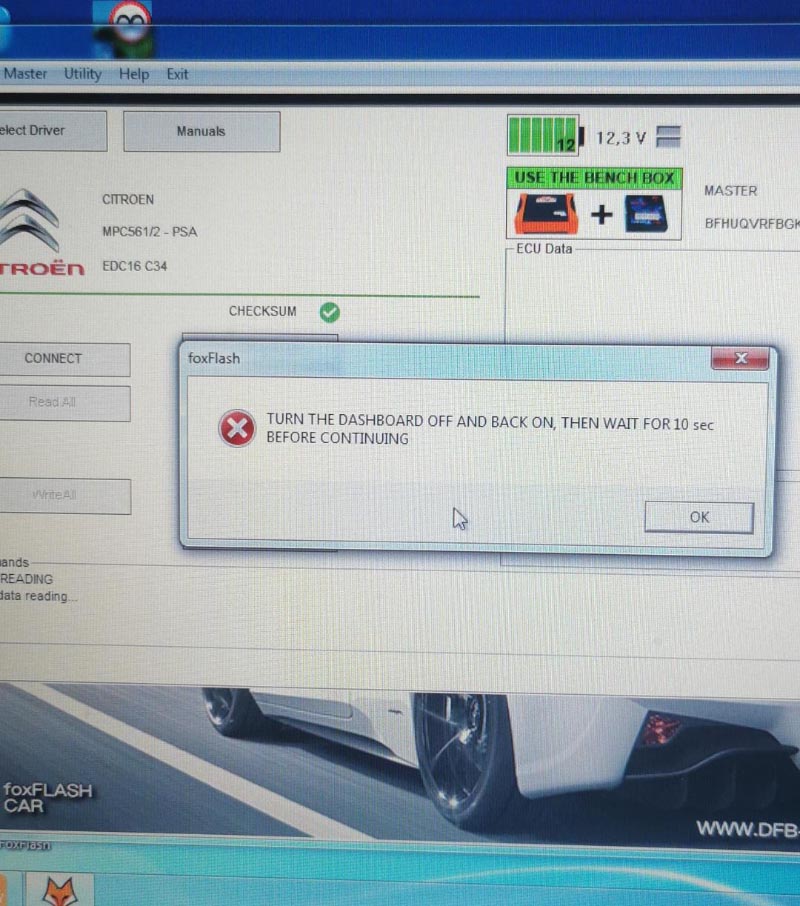

One customer gave feedback that he cannot connect MED9.1 on bench. Bench box with stable PSU, and tried all pinouts but FoxFlash Tool will not read ECU.

Solution:

Step 1.

Disconnect BDM Adapter!! put 12V in FoxFlash not bench box



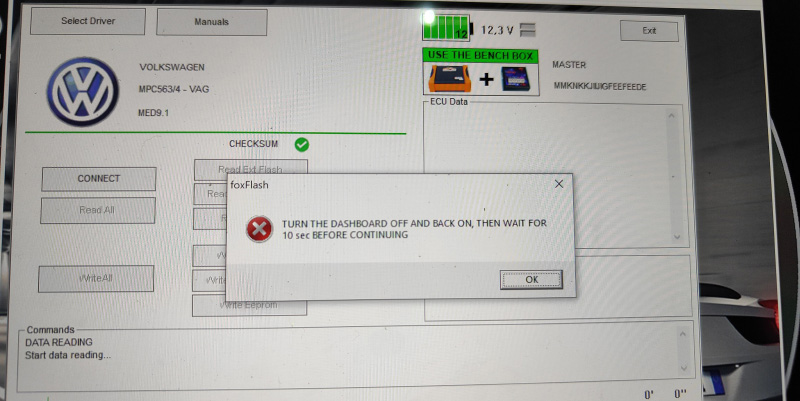

After that, both MED9.1 still fail.

Step 2.

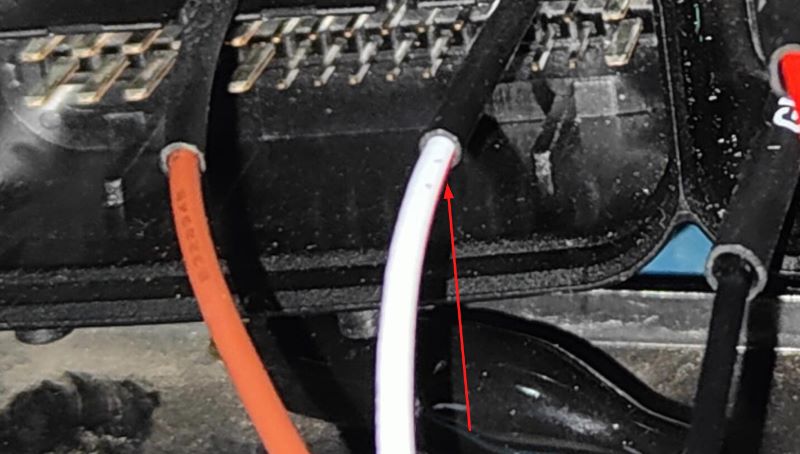

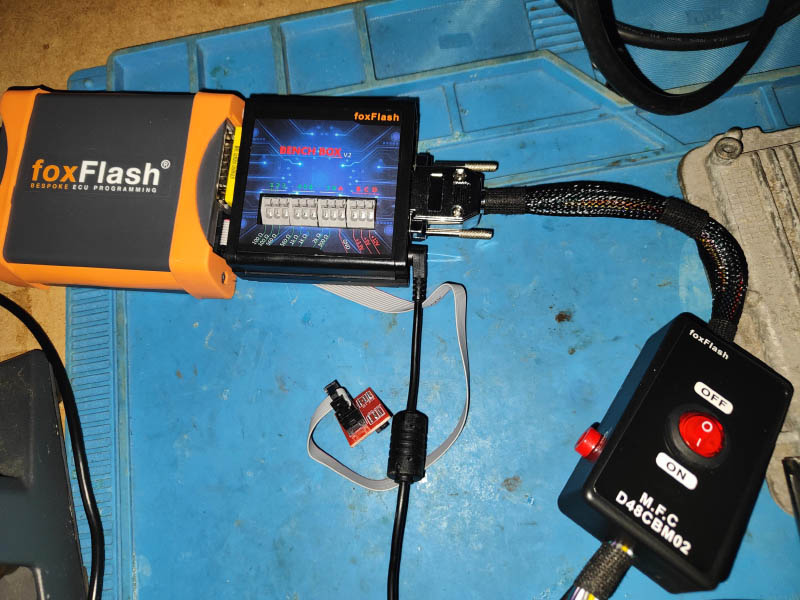

Use correct cable to connect, the white cable with red stripes is J1708 cable.

Feedback:

My problem is fixed. The ECU connects.



Done! Hope this could help!
