FoxFlash Possible to Read PSA Mev17.4 TC1766 on Bench?

One customer gave feedback:

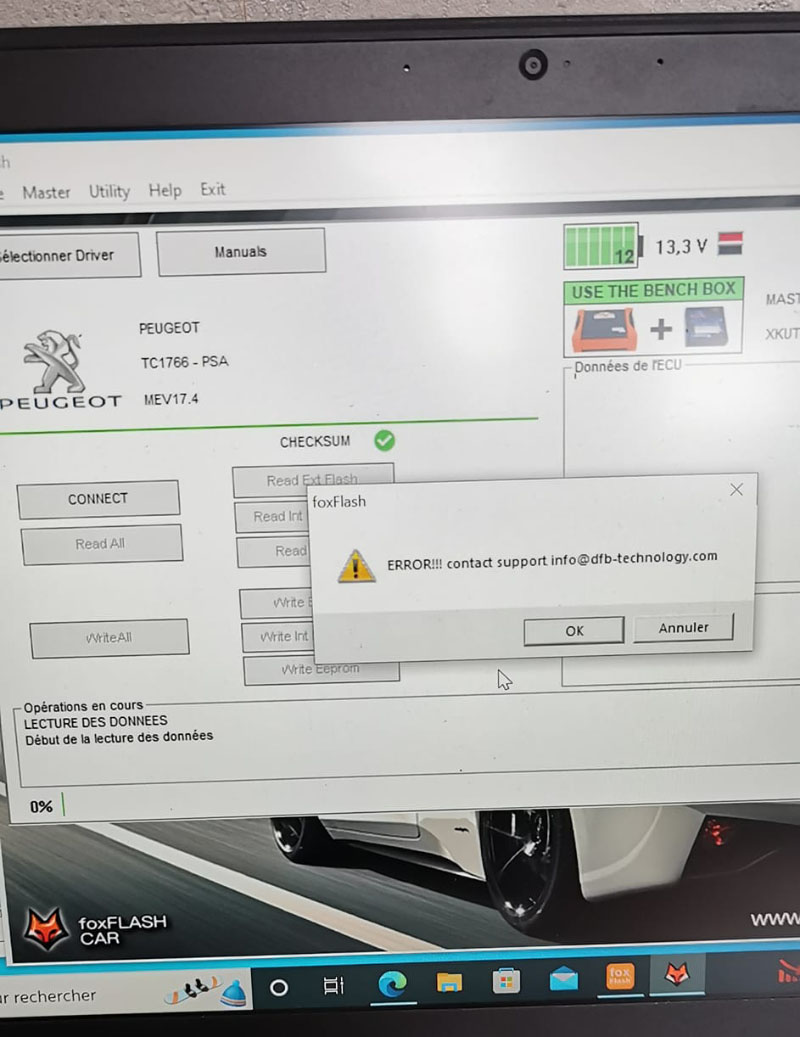

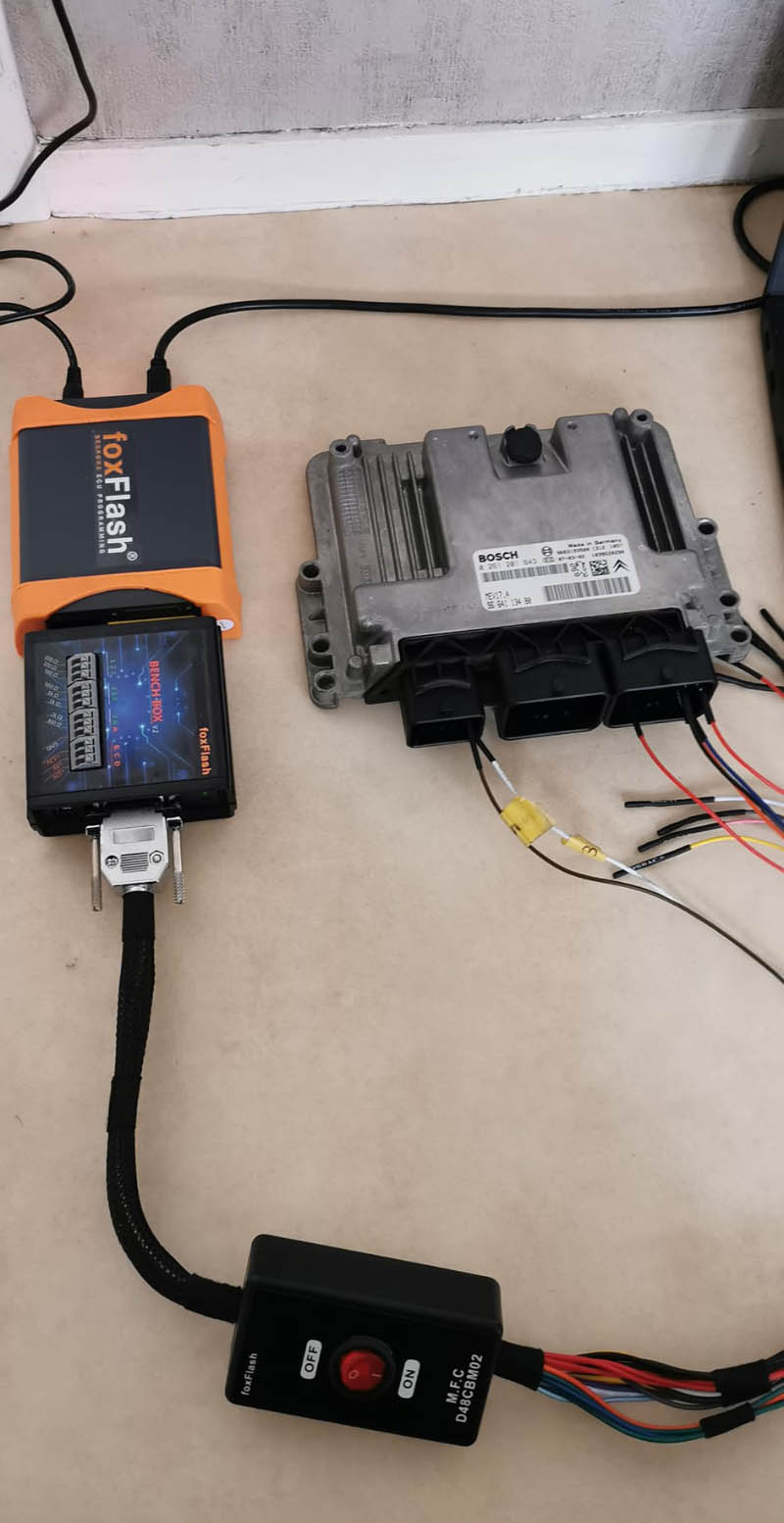

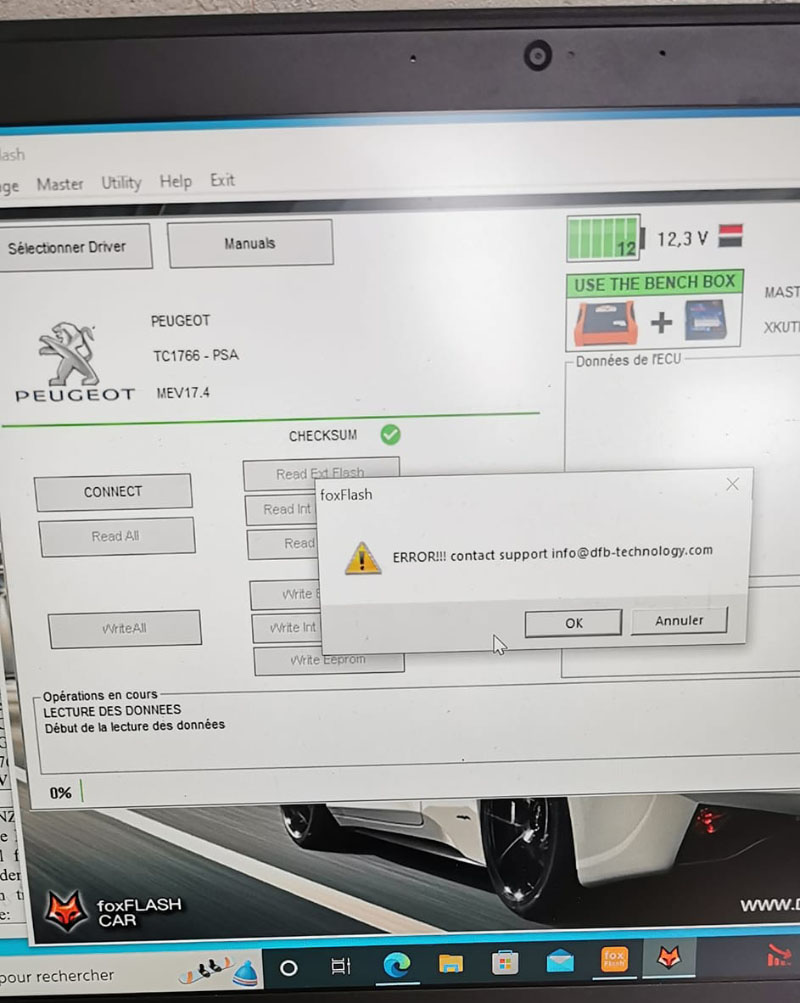

FoxFlash did not read PSA Mev17.4 on Bench, with 12v and 13.5v. If MEV17.4 TC1766 Peugeot could be read with PCMtuner?

Answer:

Both work but there are 3 possible pinouts.

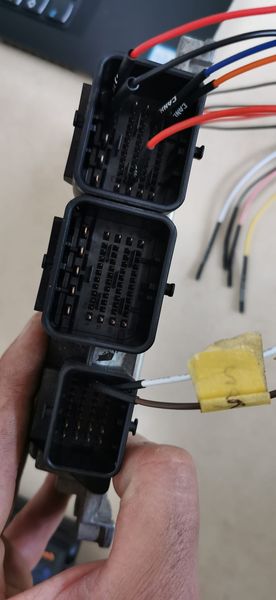

Confirm the wires of terminals are connected well.

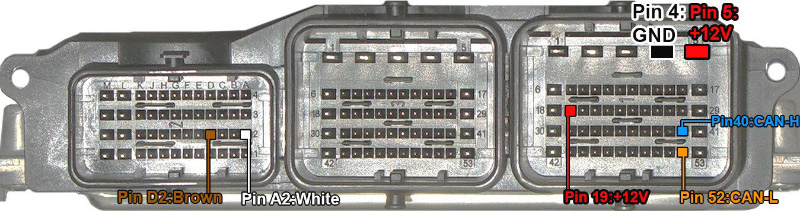

Pinout 1

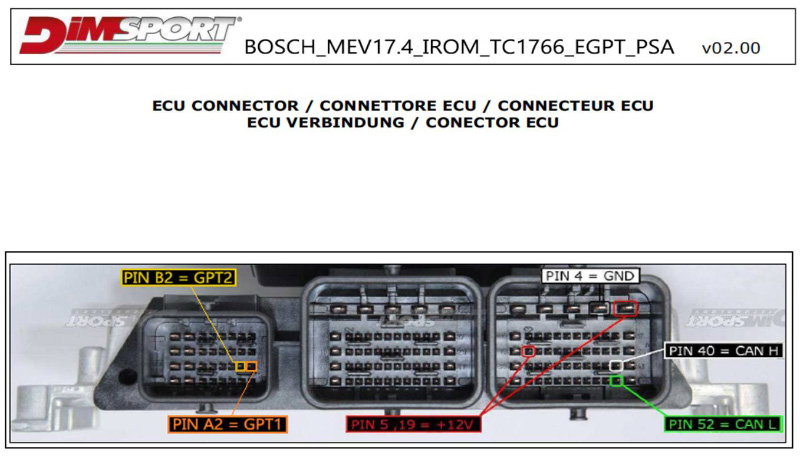

Pinout 2

Pinout 3

FoxFlash Tool Driver:

-BENCH TRICORE

-PEUGEOT / CITROEN

-TC1766 or TC1796 – PSA

-MEV17.4



PCMtuner Tool Driver:

Module 71 Bosch: MEDC17 (TC1762/1766/1792/1796) FLASH



More functions to be explored!
