Autel APB131 Adapter Add Smart Key for Skoda Kodiaq 2018 OK

Autel APB131 Adapter will extract immo data from VW RH850/ V850 Series dashboard.

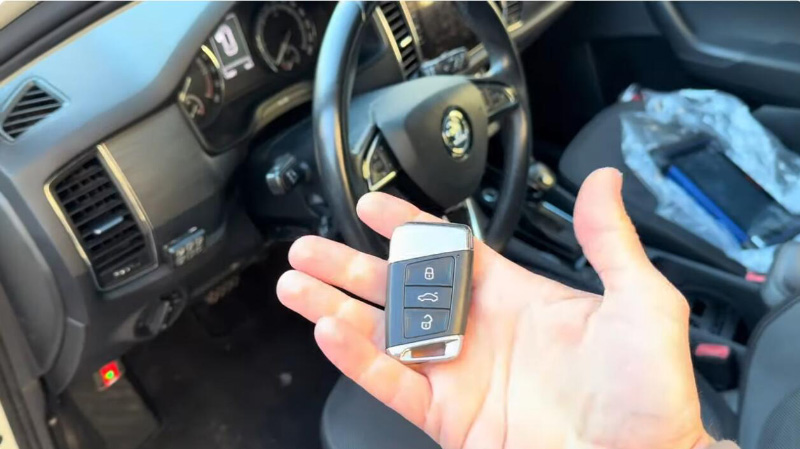

Here we are going to show you how to add a smart key for Skoda Kodiaq.

Tools:

Autel IM608 II Key Programming Tablet

Steps:

1.Read IMMO Data

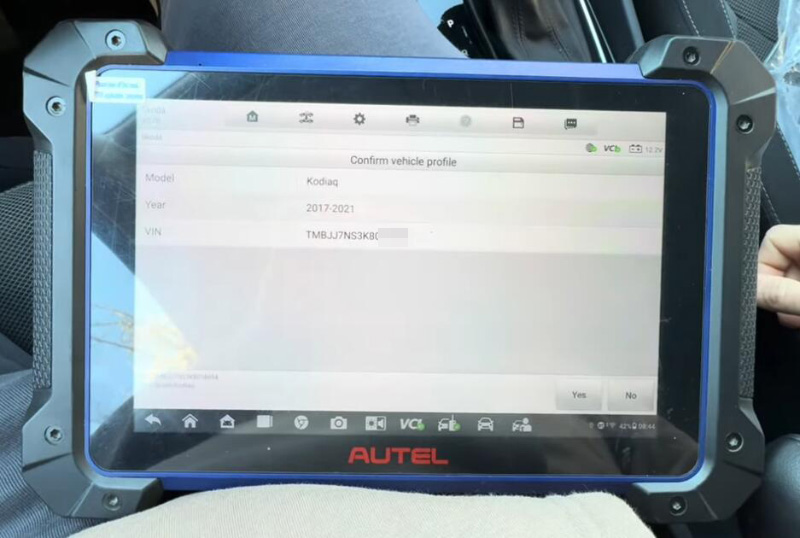

Connect Autel IM608 II to vehicle and it will automatically read info.

Select

Expert selection>>MQB instrument cluster

Dismantle cluster.

Select

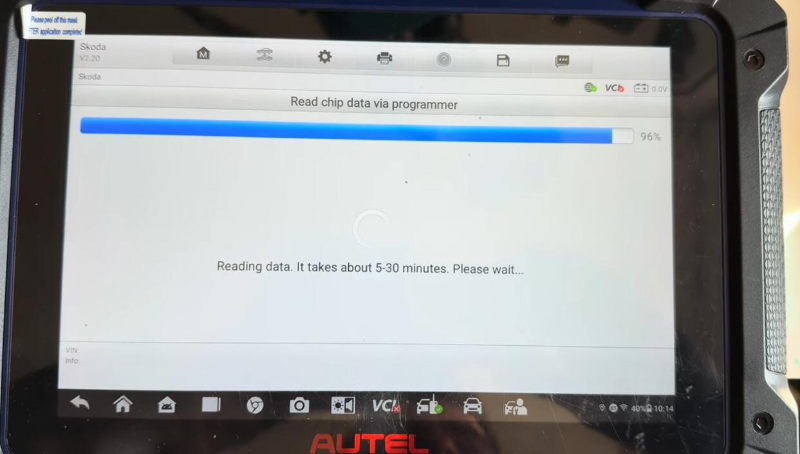

RH850 locked (via dump)>>R7F701402 A2C03050000>>Read chip data via programmer

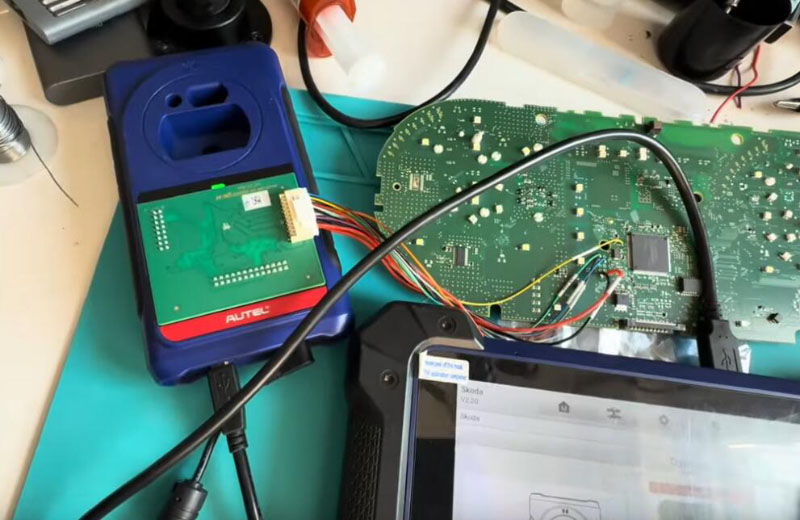

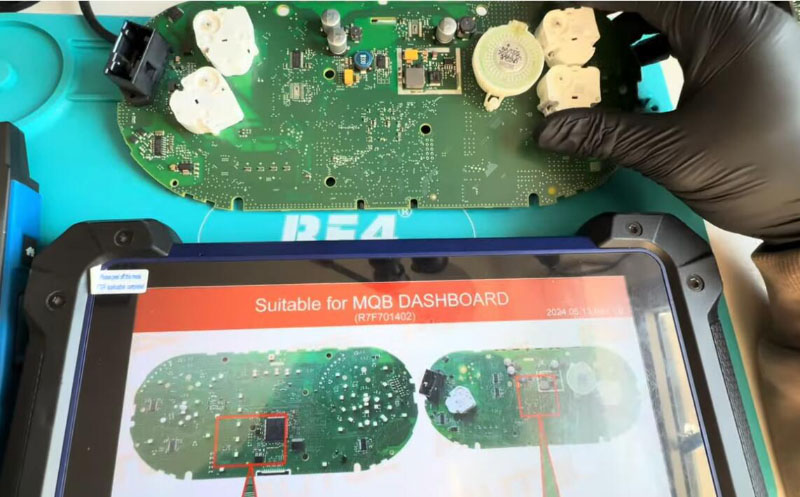

Connect APB131 Adapter to cluster by soldering.

Read cluster data.

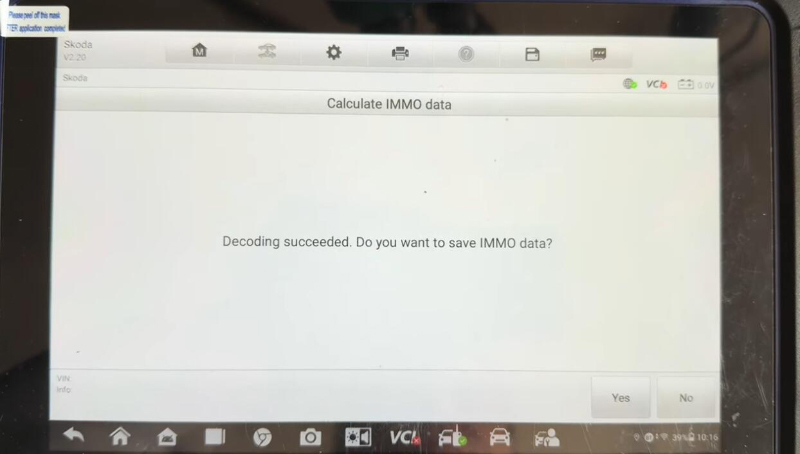

Select “Calculate IMMO data” and load cluster data.

2.Learn Key

Install cluster back to vehicle.

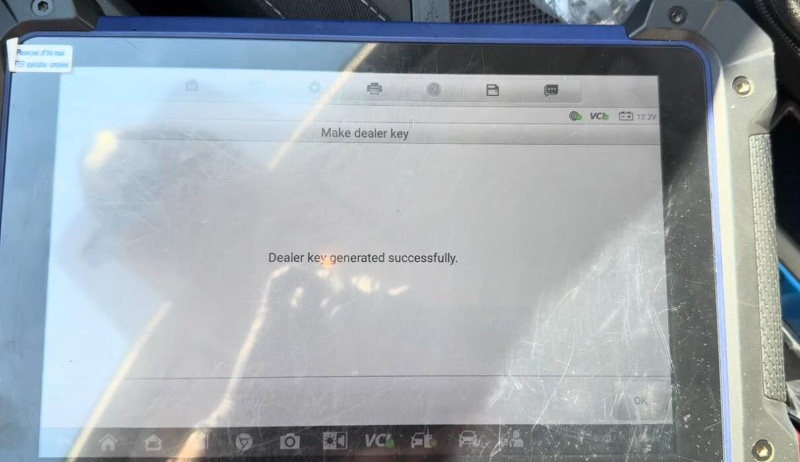

On Autel, select “Make dealer key”.

Put original key into key coil.

Put new key into key coil.

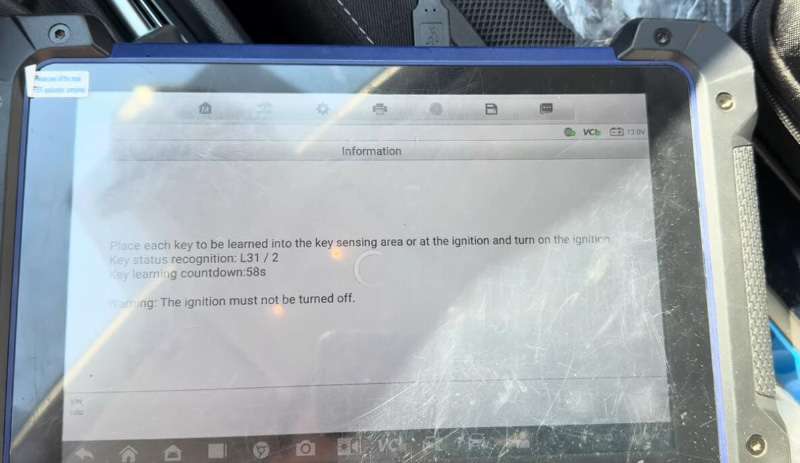

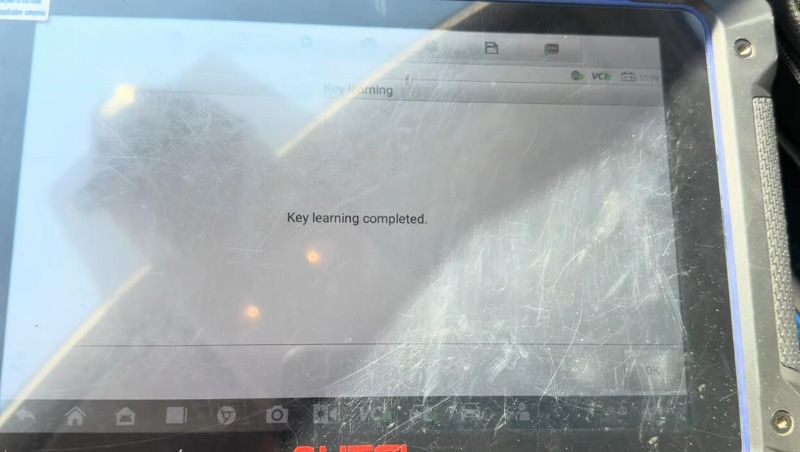

Select “Key learning”.

Done!

Credit to Auto derbi.
