How ACDP Model 34 Correct MQB D70F3426 + 95128 Chip Odometer

Purpose:

To correct MQB D70F3426 + 95128 Chip Odometer

Tools:

Yanhua ACDP Model 34

Cluster:

D70F3426 + 95128 Chip Model

Steps:

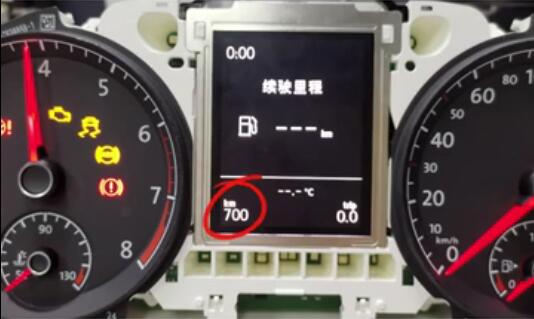

Original odometer is 700km.

Open ACDP app, and make sure your tools are linked.

Select

VW>>VW MQB IMMO>>MQB48(JCI-NEC34XX+95128 5A)>>ICP ODO>>D70F3426+95128

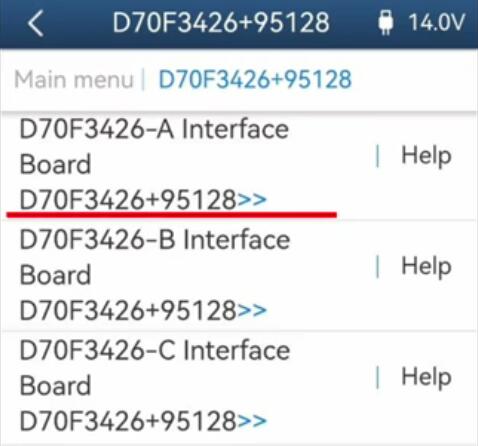

Select D70F3426-A Adapter.

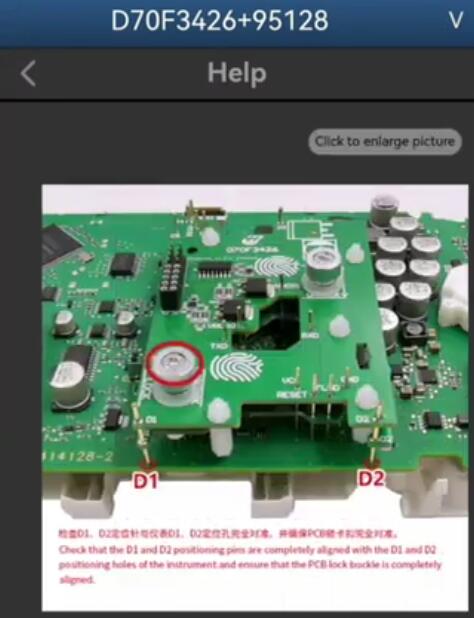

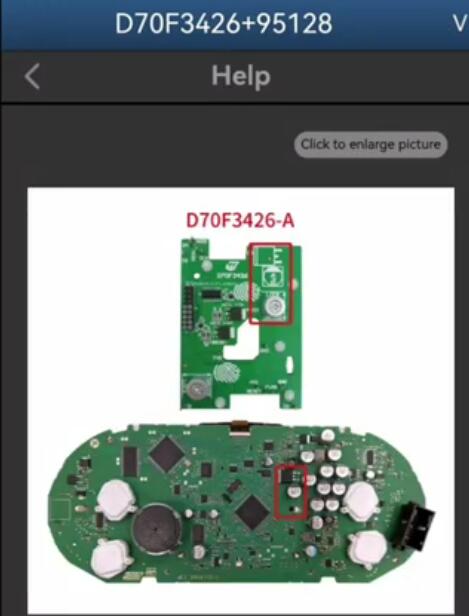

Select “Help” to check out diagrams.

Select “Auto Mode”.

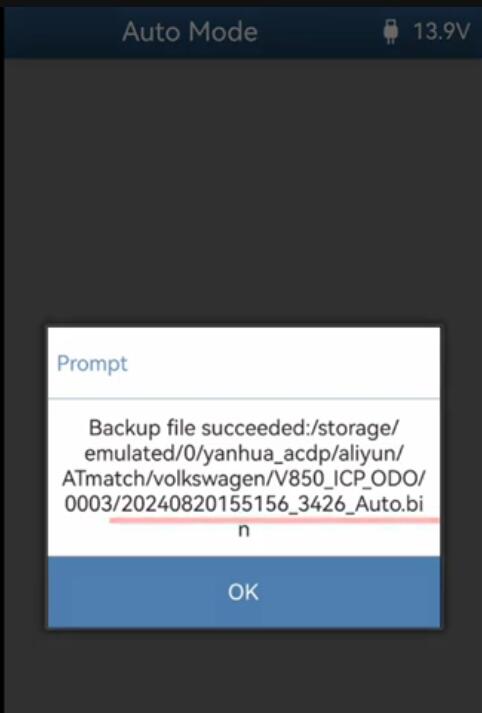

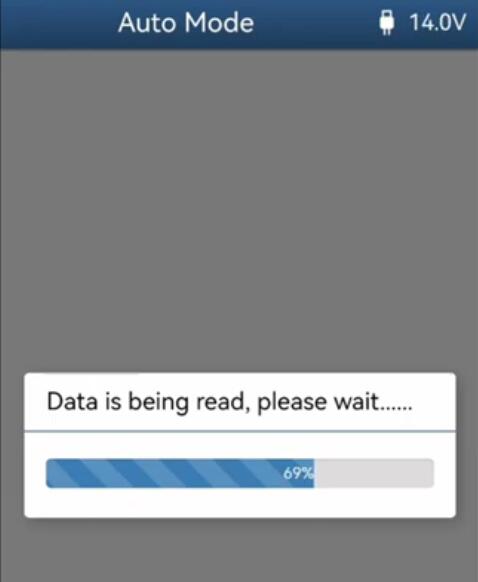

Follow notices to back up CPU data.

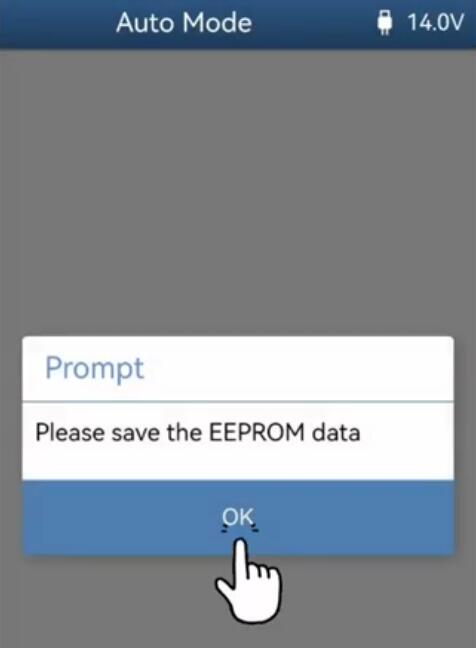

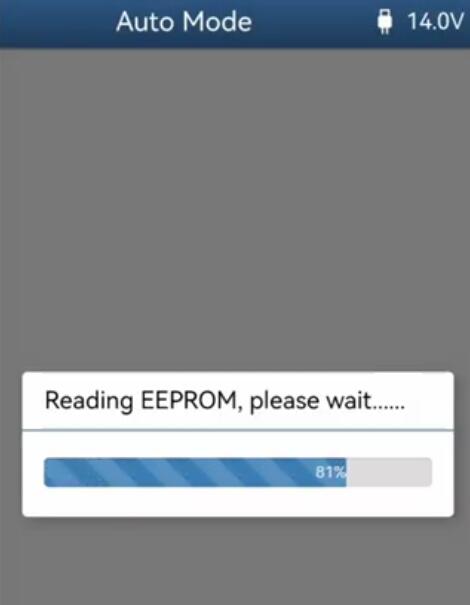

Back up EEPROM data.

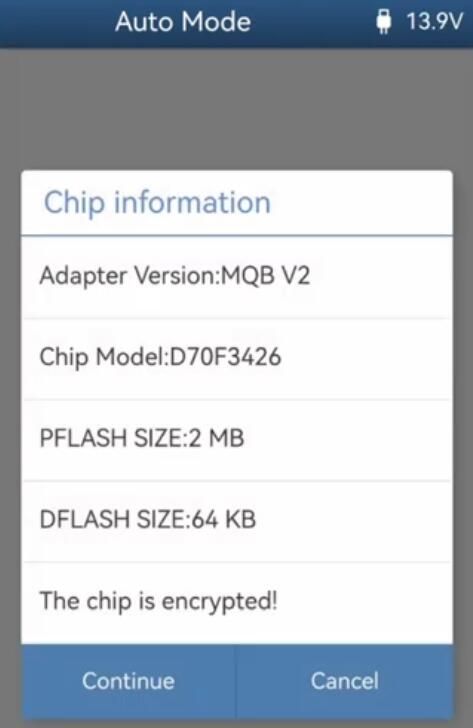

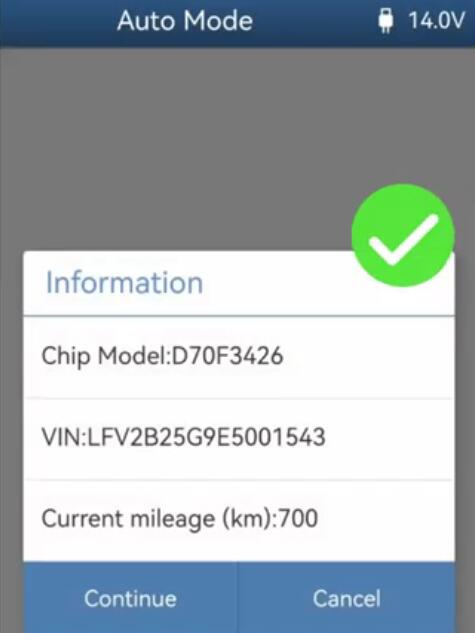

Cluster info.

Enter new odometer.

Backup new CPU and EEPROM data.

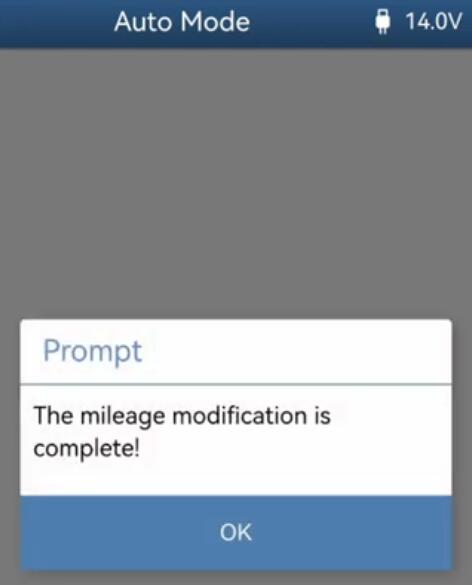

Odometer correction is done.

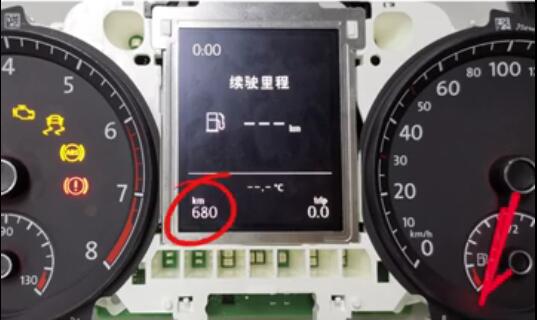

New KM is correct.

Done! That’s how to correct odometer of VW D70F3426 + 95128 using ACDP Module 34.
