How Lonsdor K518 PRO Add Key for Maserati Ghibli 2022?

Lonsdor SGW 12+8 Adapter will bypass gateway for newer FCA models.

This adapter works with Lonsdor and other tools from like Xhorse, Autel, Launch X431…

Here, we are going to show you how to use this adapter.

Vehicle: Maserati Ghibli 2022

Tools: Lonsdor K518 PRO Tablet

Steps:

1.Connect Lonsdor SGW Adapter

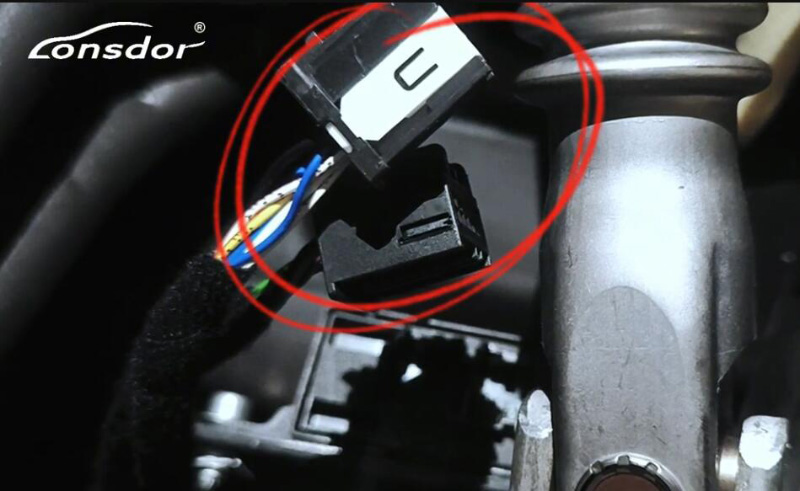

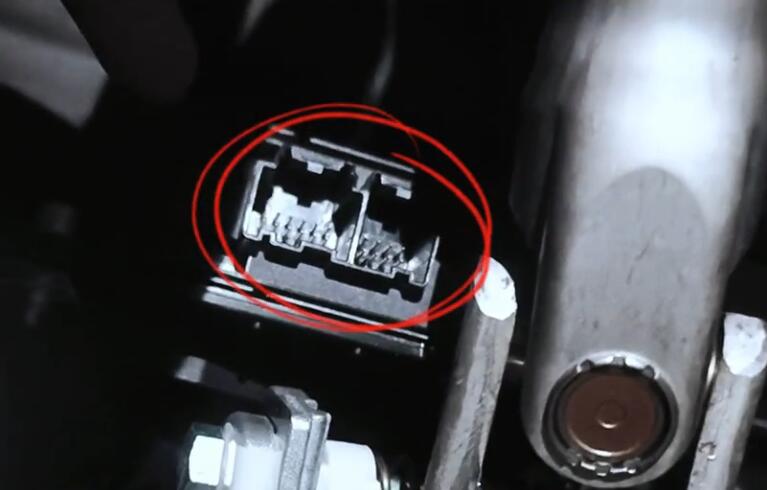

Remove these two plugs.

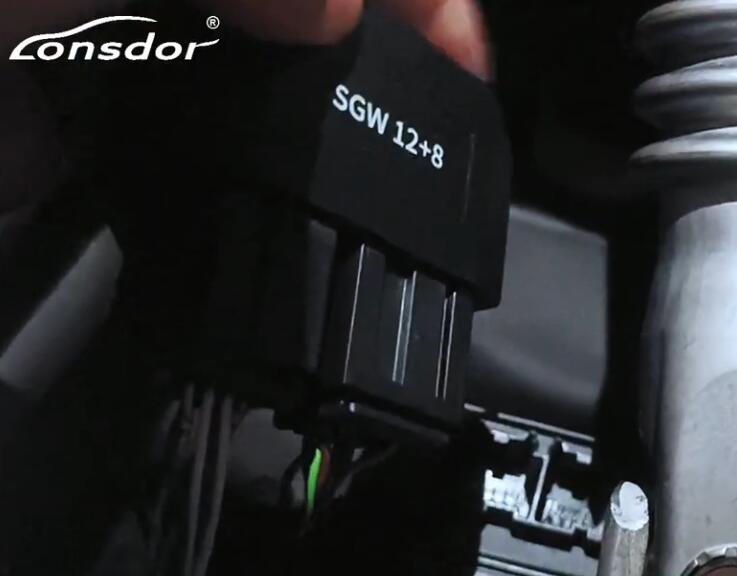

Connect Lonsdor SGW Adapter to the two plugs.

2.Read EEPROM Data

Connect K518 PRO to OBD port.

Turn on K518 PRO, select

Maserati>>Select by model>>Ghibli>>2016-2021

Select “Back up IMMO Data”.

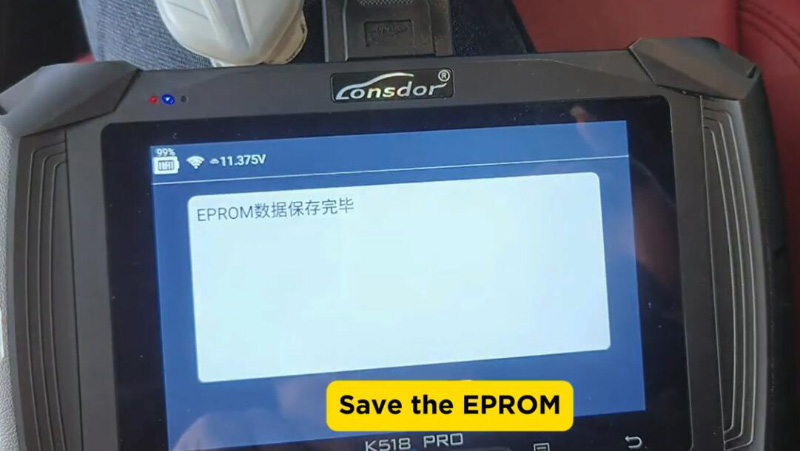

Follow steps to save EEPROM data.

3.Delete Key

Select “Delete Smart Key”.

Load EEPROM file we just get.

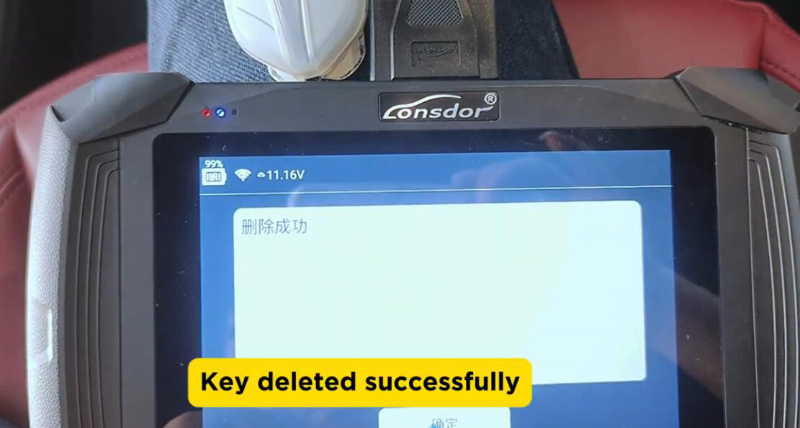

Follow steps to delete smart keys.

4.Add Key

Select “Add Key”.

Load EEPROM file we just get.

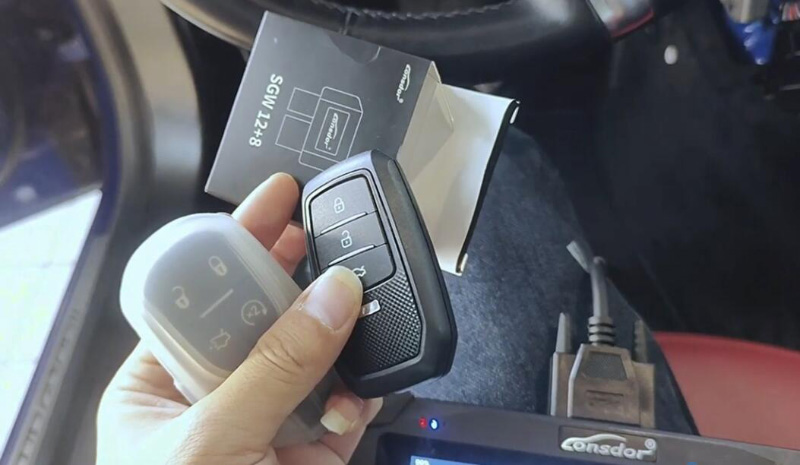

Only keep one key in car.

First, keep original key in car.

Press LOCK or UNLOCK button once.

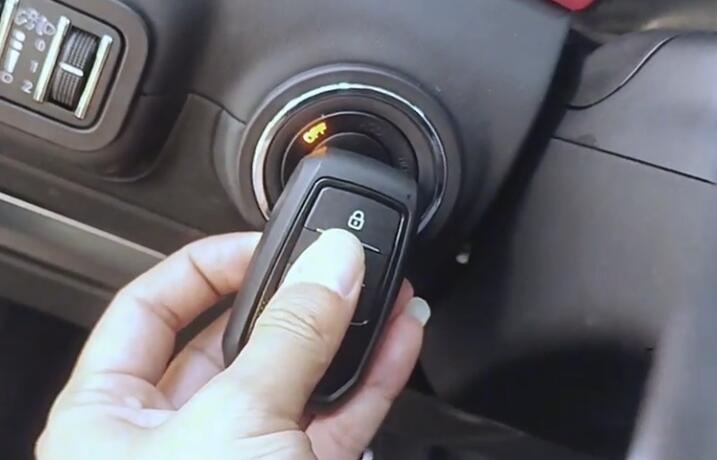

Put original key close to Start button and press UNLOCK button once within 30 seconds.

Program new key in the smart way.

New key added.

Done! That’s how to add key for Maserati Ghibli 2022 using Lonsdor SGW 12+8 Adapter.
