How to Use Autel APB131 Adapter on Golf 3426 MQB Cluster?

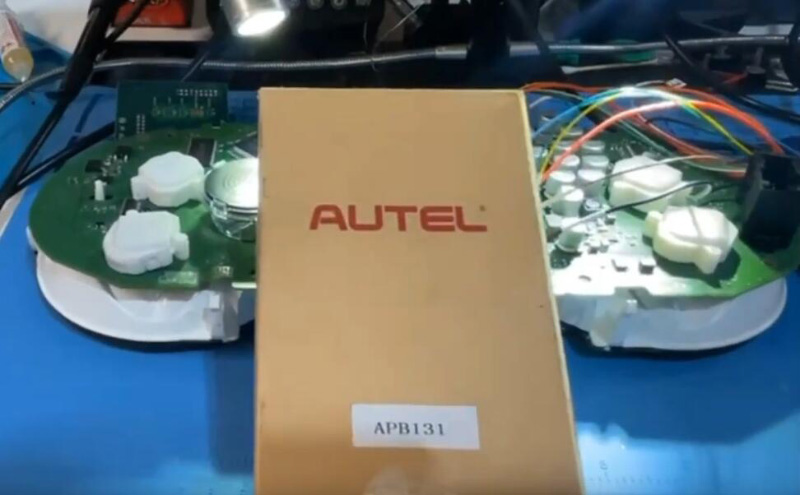

Here we are going to test if Autel APB131 Adapter could work on a mk7 golf 3426 MQB cluster with IM508S and XP400PRO.

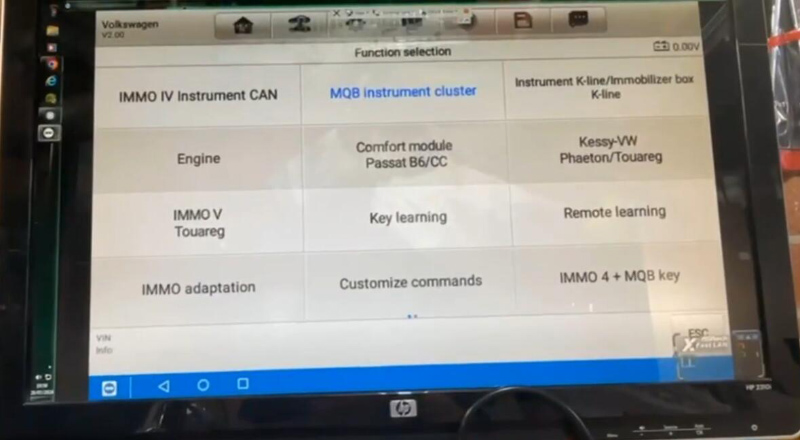

We enter VW Expert Selection menu.

Select

MQB instrument cluster>>RH850 locked (via dump)>>D70F3426

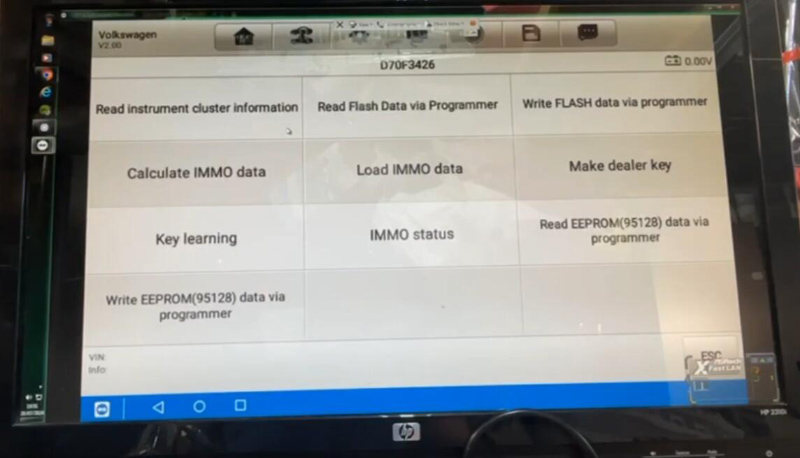

Select “Read Flash Data via Programmer”.

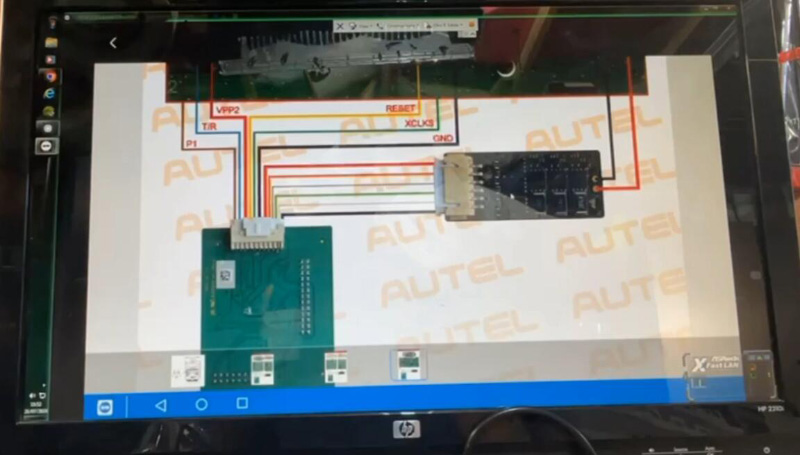

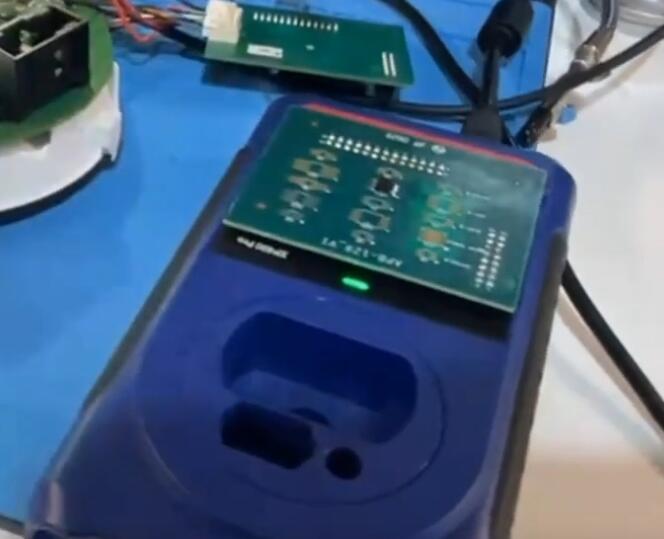

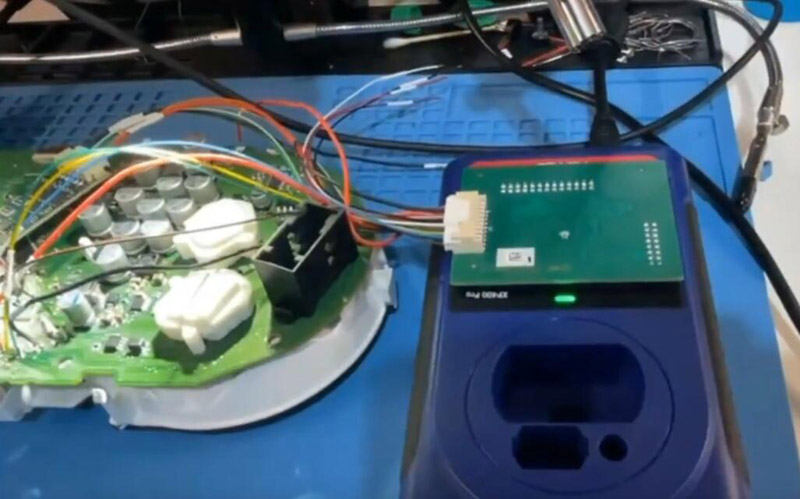

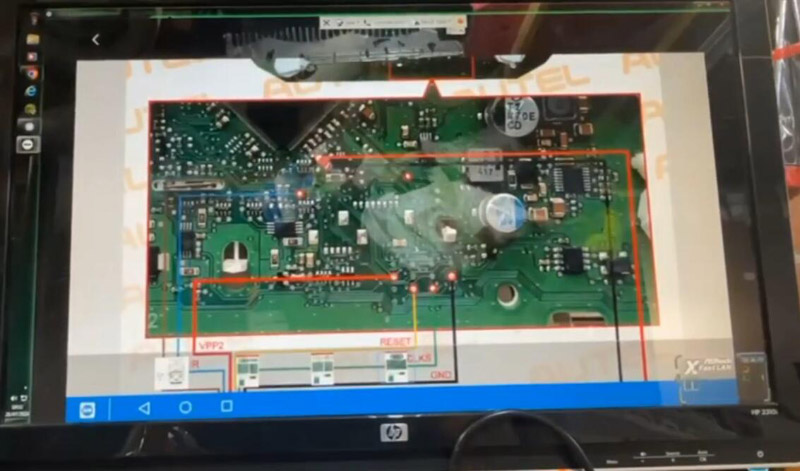

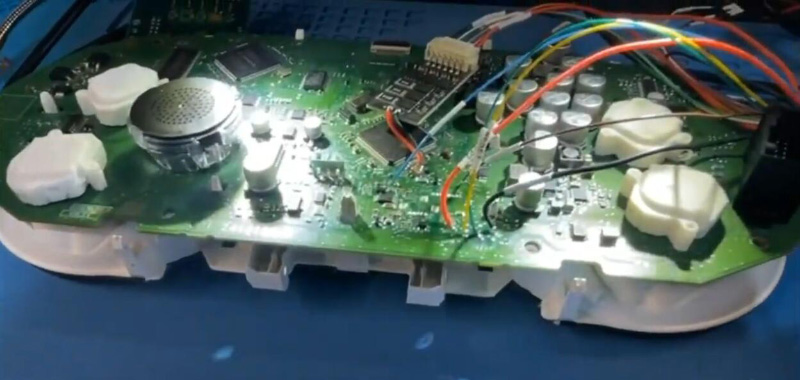

Connect APB131 Adapter according to diagrams, no components to be removed like in Xhorse Key Tool Plus.

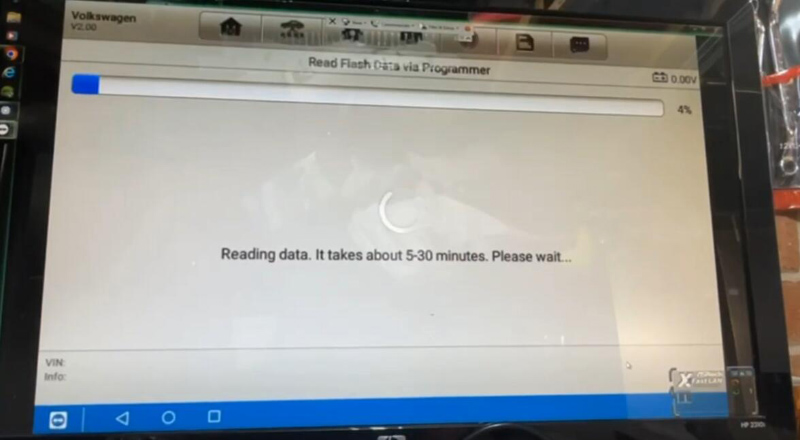

Read cluster data.

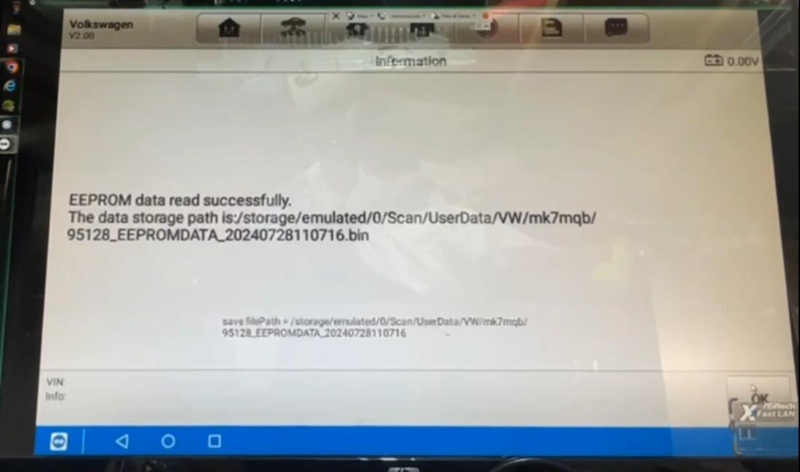

Desolder and read EEPROM via “Read EEPROM(95128) data via programmer”.

Select “Calculate IMMO Data”.

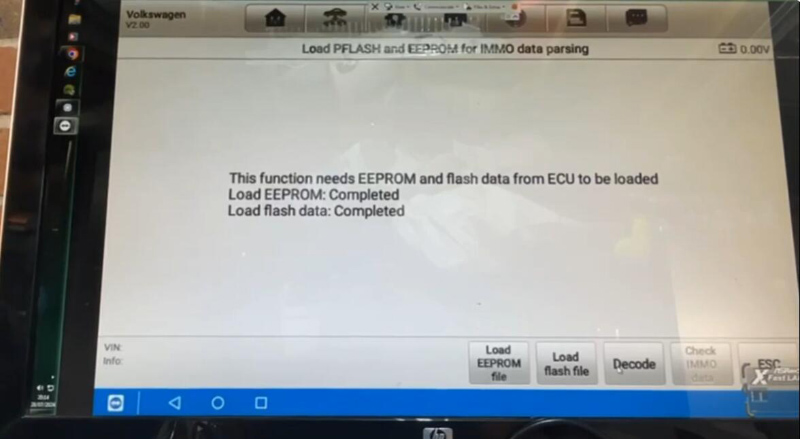

Load EEPROM and cluster data.

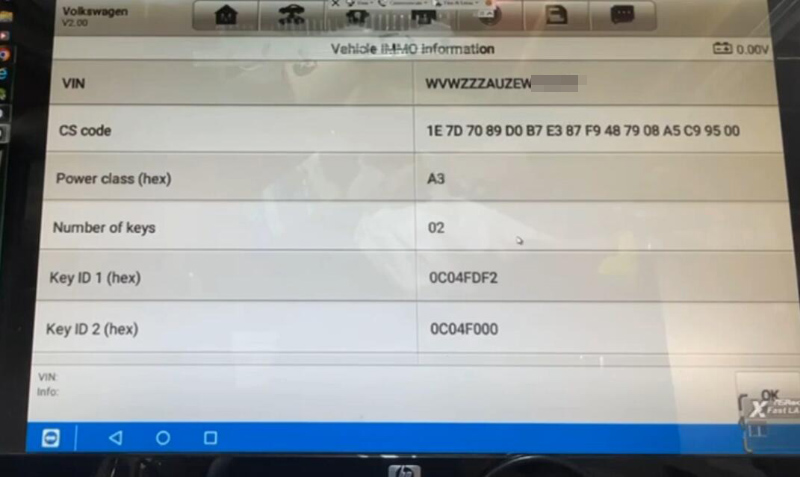

Decode IMMO data.

Then we just continue “Make Dealer Key” and “Key learning” in vehicle to finish programming.

Done! That’s how to use APB131 Adapter.
