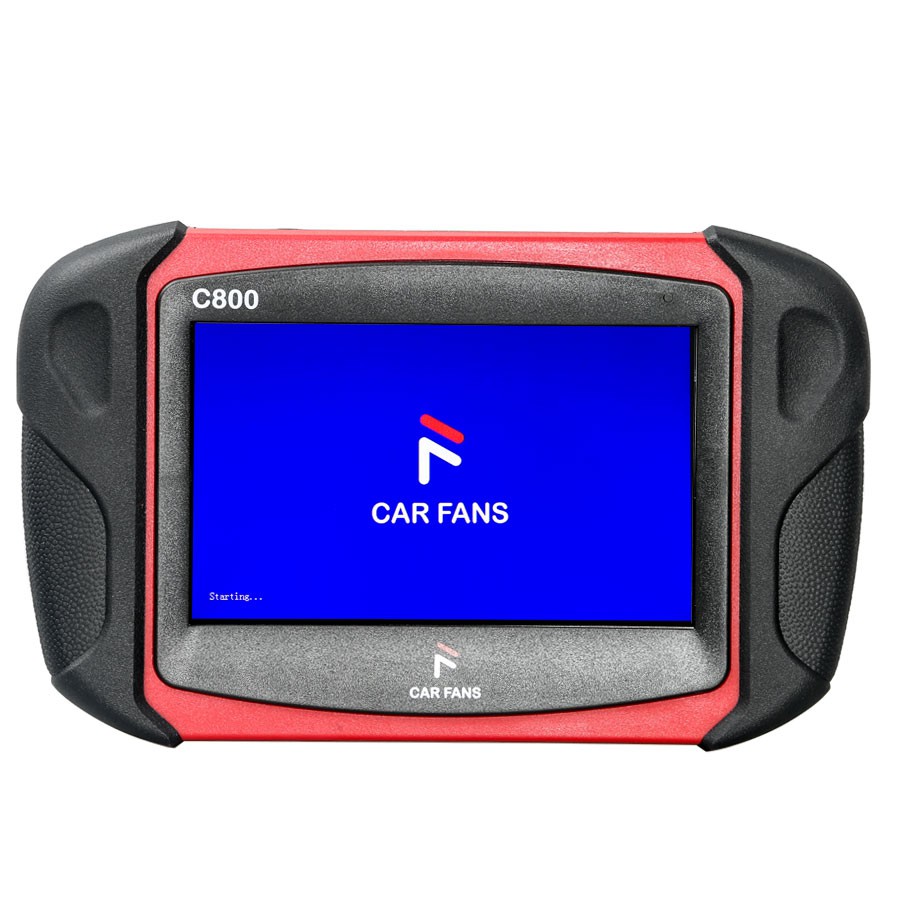

uobdii.com newly release Car FANS C800 heavy duty diagnostic & reset tool, it has a wide diesel vehicle coverage and perform basic diagnostic functions as well as the advanced function (special function, matching settings, functional test, diesel calibration) etc.
It features in 7 inch 800 x 480 touch color screen, runs fast with ARM9 CPU & 4GB memory as well as update online.
What functions does CAR FANS C800 Heavy Duty diagnostic & reset tool can do?
Read Fault code
Erase Fault code
Advance Functions: Adjustment/Settings, Function Test, Special function, calibration etc.

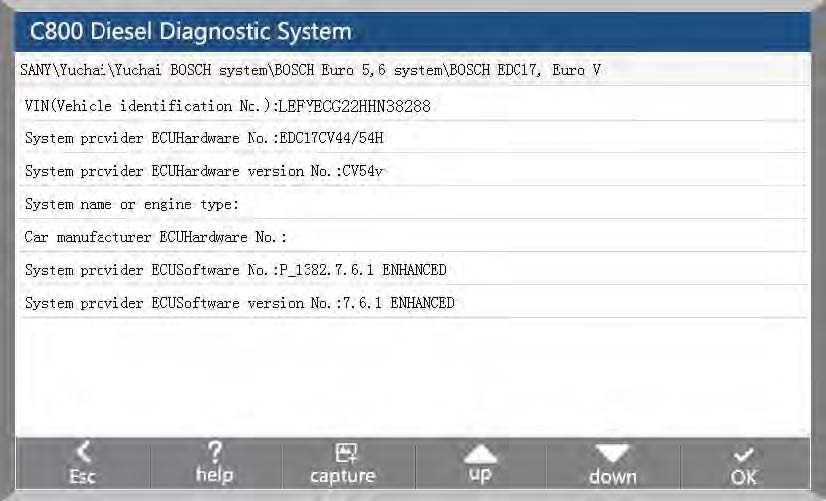

Identification is the vehicle and system information in ECU. When the vehicle control unit need to be replaced, it is necessary to read the original control unit information and record it as a reference for purchasing a new control unit.
When the new control unit is encoded, the original control unit information is required.

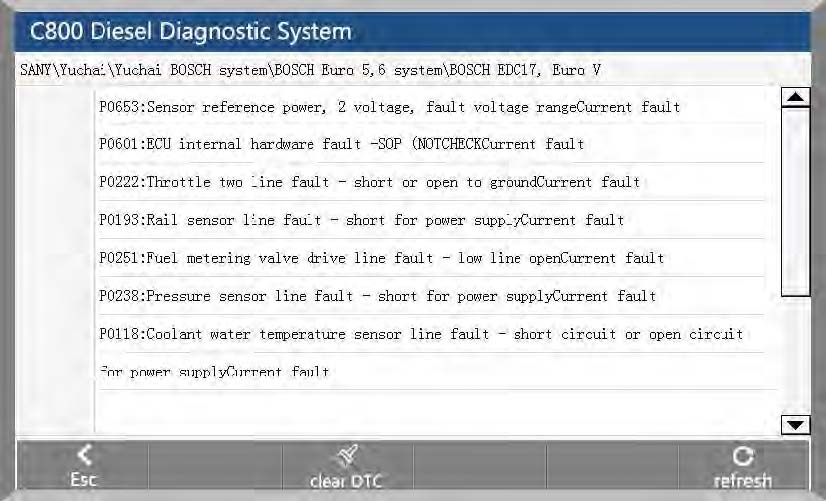

- Read Fault code
Read the fault code function can read ECU fault code to help maintenance personnel quickly found the cause of vehicle failure.

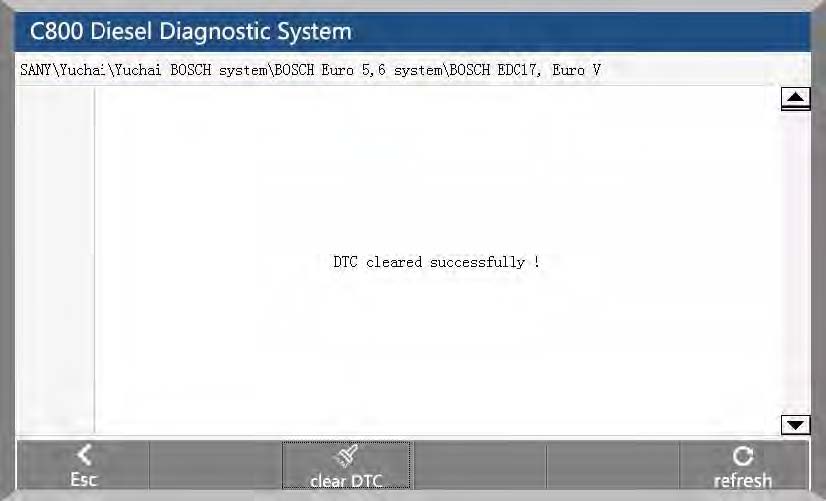

- Erase Fault code
Clear the fault code stored in the ECU.
Note: General models, please follow the regular order, first read the fault code, and record (or print) and then clear the fault code, test, read the fault code again to verify, repair the vehicle, clear the fault code, test again to confirm the fault code The current hard fault code can not be cleared, if the oxygen sensor, knock sensor, mixed gas correction, cylinder fire and the like type of technical code can be removed immediately, but in a certain period will appear. Must be completely troubleshooting after the fault code will not appear again.

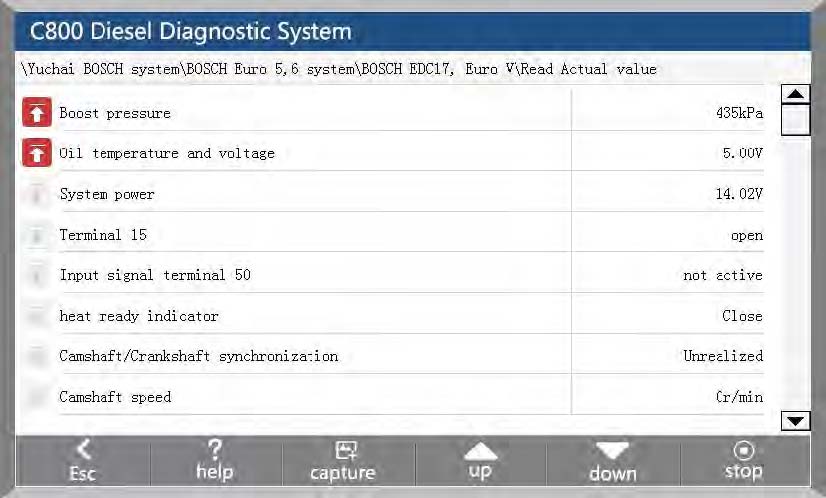

- Actual Values
You can determine whether the various parts of the vehicle are faulty through actual values.
Method of operation:
- After entering the diagnostic function, click “Actual values”, pop-up dialog box.
- Click the “Select All” check box to select all actual values; you can also click the check box before each actual value to select the data stream you want to read.
- Click the “Read actual values” button. The interface displays the name, result, and unit of the data stream.
In order to test the electronic control system in the implementation of components can work properly.
Method of operation:

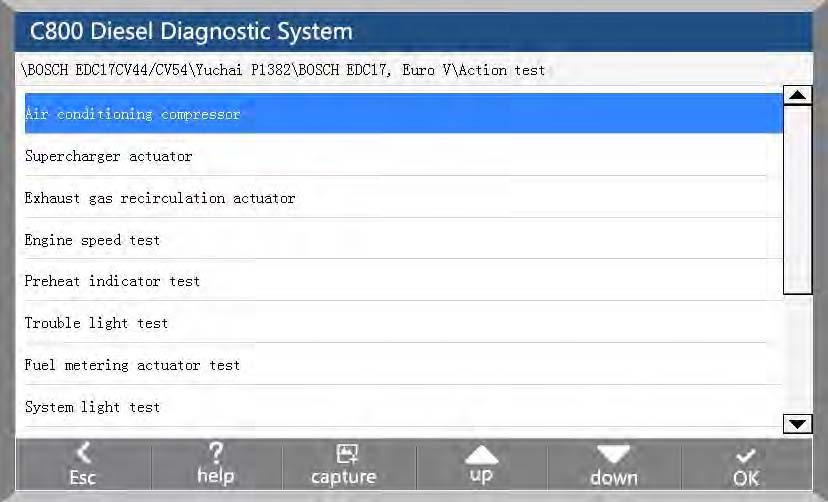

- After entering the diagnostic function, select “Actuators”, the interface will display all the action can be tested.

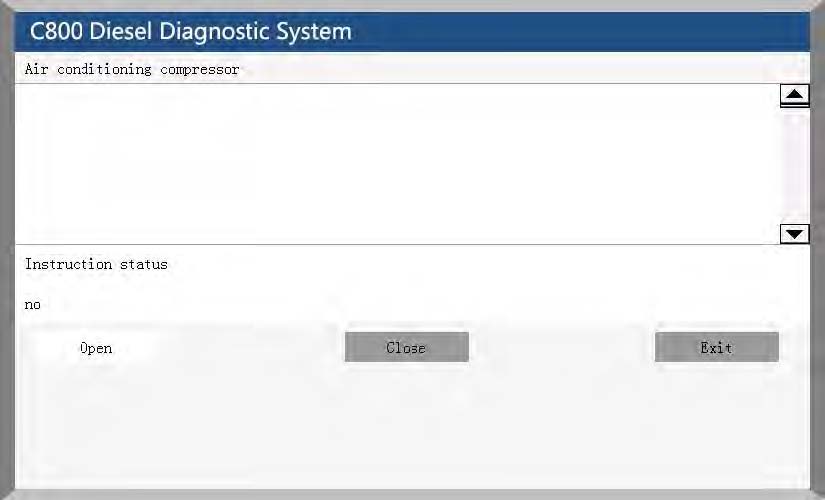

- Click on an item to enter the action test interface. The actuators include three states: open, close, and exit.
- Click “Open”, the status of the action test is turned on.
- Click “Close”, the status of the action test is off.
- Click “Exit” to exit this action test.

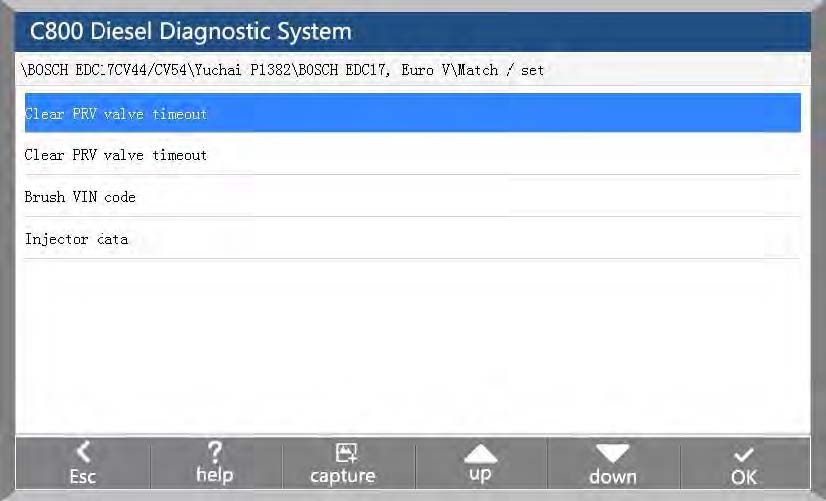

- Advance Functions: Adjustment/Settings, Function Test, Special function, calibration.

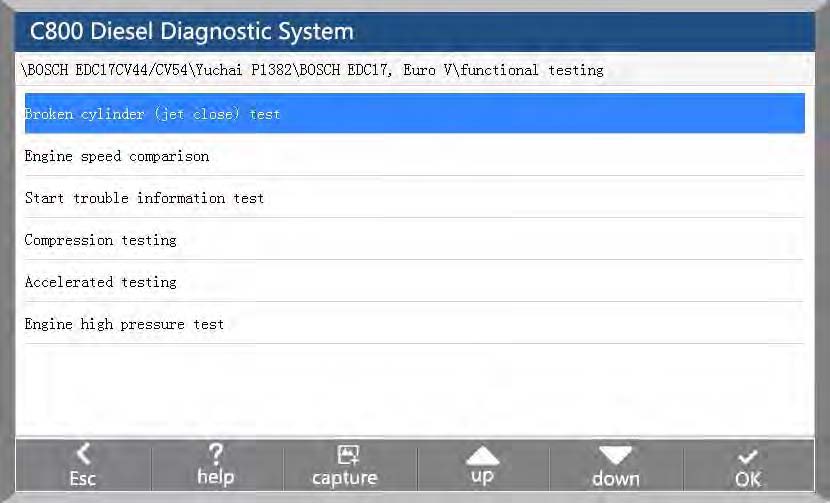

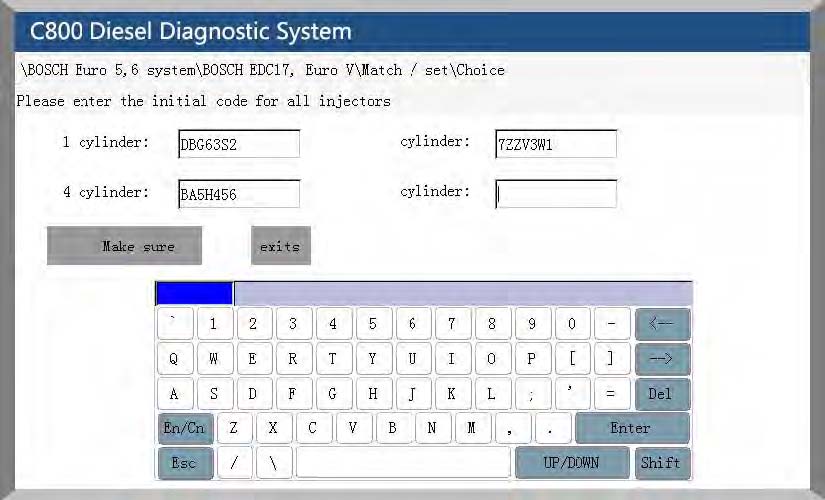

For example: diesel fuel injector code, idle speed adjustment, broken cylinder test, calibration and so on
What diesel vehicles does CAR FANS C800 work on?
Generally speaking, CAR FANS C800 almost cover all brand heavy duty vehicles in market:35 Heavy duty brand, 21 BUS Brand, 16 Passenger car Brand, 32 Machinary vehicle brand and 46 ECU System.

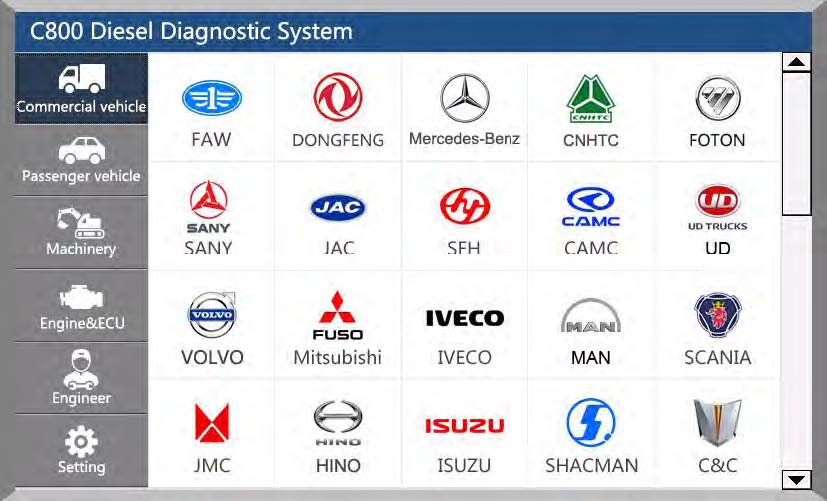

Commercial Vehicle: FAW,DONGFENG,Mercedes-Benz,CNHTC, FOTON, SANY, JAC, SFH, CAMC, UD, VOLVO, Mitsubishi, IVECO, MAN, SCANIA, JMC, HINO, ISUZU, SHACMAN, C&C, Hyundai, XCMG, BEIBEN, KIA, KING LONG, YUTONG, HIGER, GOLDEN DRAGON, YOUNGMAN, BYD, ANKAI, DAEWOO, SUNWIN, ZHONGTONG, HUANGHAI, WZL, SUNLONG, TOYOTA, ASIASTAR
Passenger Vehicle: Mercedes-Benz, Hyundai, VW, Zhonghua, JMC, GreatWall, ZZNISSAN, JAC, ZXAUTO, DONGFENG, LIEBAO, CHERY, FUDI, GONOW, HUATAI, SSANGY, MAXUS, JX-ISUZU

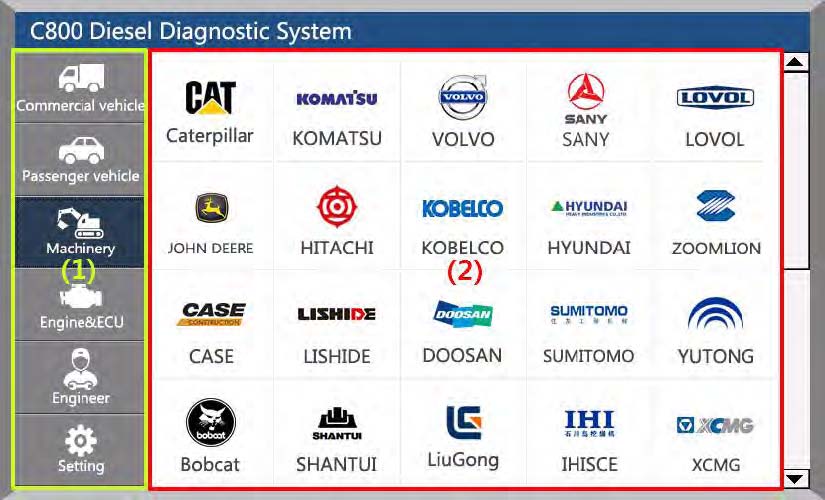

Machinery: CAT, KOMATSU, VOLVO, SANY, LOVOL, JOHN DEERE, HITACHI, KOBELCO, HYUNDAI, ZOOMLION, CASE, LISHIDE, DOOSAN, SUMITOMO, YUTONG, Bobcat, SHANTUI, LiuGong, IHISCE, XCMG, KUBOTA, Takeuchi, XGMA, Atlas, TEREX, YUCHAI, LONKING, SUNWARD, SEM, Jonyang, PENGPU, YTO, JAC, XINYUAN, DXZG, HENGTE, SANYUAN, HUANGHE, SHUNTONG, STRONG
Engine&ECU: Bosch, Denso, Delphi, Perkins, Deutz, Weichai, Yuchai, Fawde, Cummins, Yunnei, Changchai, SDEC, DCD, Yangchai, Quanchai, EUP, JX-Isuzu, XCE, Kernel, SIDA
How to update CAR FANS C800?
Log in the official website (www.carfans.net.cn )
Download and install the C800 intelligent diagnostic device upgrade client software.
Plug in the device SD card through the card reader into the computer USB interface to finish the device software upgrade.
How many languages CAR FANS C800?
English & Chinese
How to use CAR FANS C800?
Here is CAR FANS C800 user manual
How much to have one CAR FANS C800?

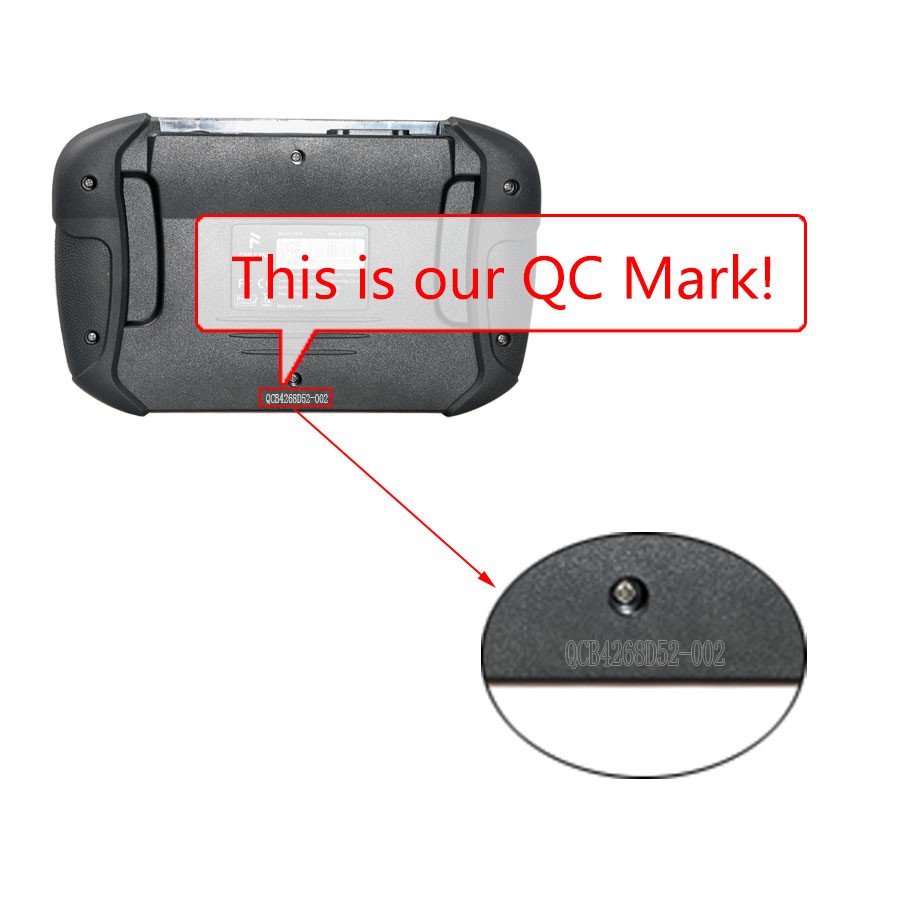

Pass Quality Control test

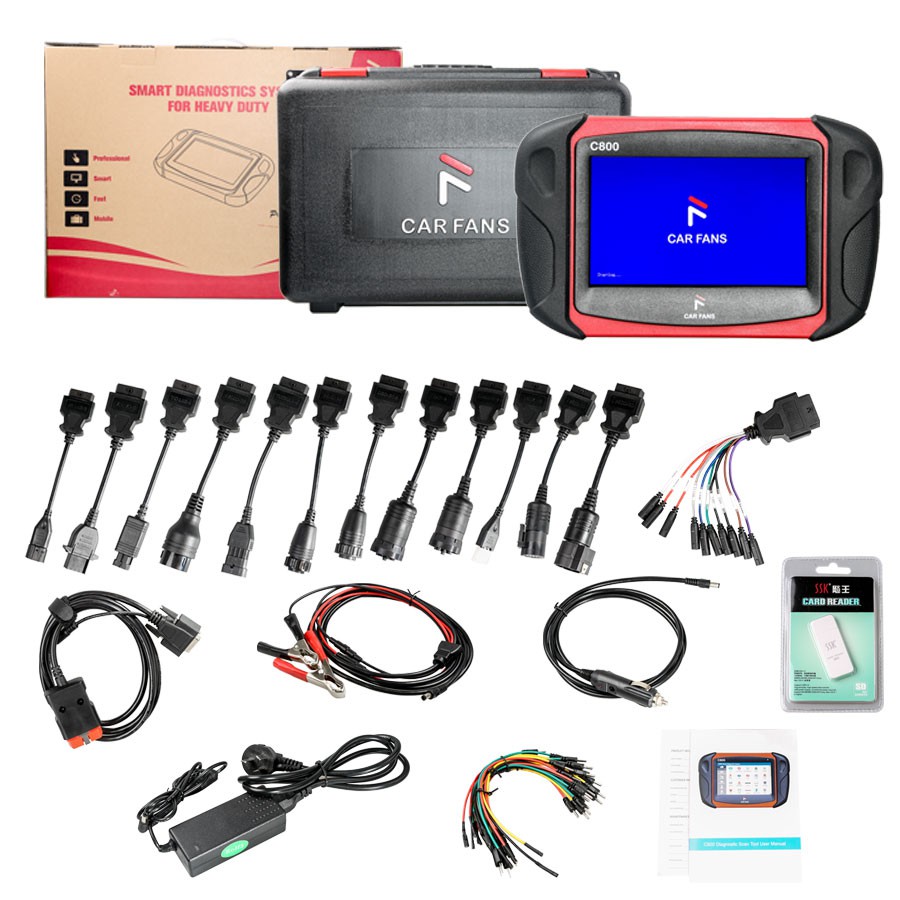

C800 Package list:
1pc * Power extension cord
1pc *Battery clip supply line
1pc *Cigarette lighter supply line
1pc *SD card
1pc *SD card reader
1pc *Test extension cord (with OBD connector)
1pc *Power adapter kit
1pc *C800 device
1pc *C800 carry case
1pc *OBD16PIN Circular adaptor
Multi-function jumper adaptor
C800 user manual
