TCU Flashing on BMW E85 with INPA software

Here are some tips of how to flash TCU of BMW E85 (Z4) using BMW INPA software with a HQ K+DCAN cable or ICOM A2 emulator (clone ok).



Car: Z4 3.0I with the ZF 6HP19 transmission

Purpose: want to test different TCU calibration files on my E85 (Z4)



All should be done via a K+DCAN usb cable running working INPA software



Which SGBD does the GKE211 use?

For Inpa, its the GS19D.prg
Winfkp uses 10flash.prg

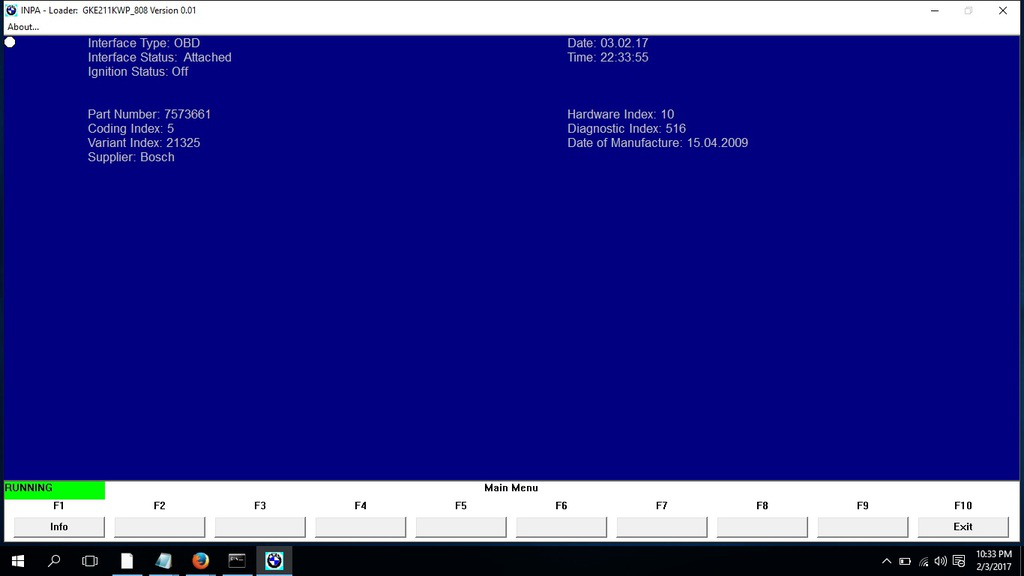

Here is a quick and dirty INPA script I wrote for you all for reference:

bmw-inpa-e85-1

It sets the protocol to KWP2000 over K-Line and executes the IDENT job.

If it’s unable to use KWP over K-Line, it will display a large red box indicating so.



There are a few ways to execute a custom INPA script.

For quick and dirty testing, the CLI is probably easiest. c:\ec-apps\inpa\bin\inpaload <path to IPO file>:

c:\ec-apps\inpa\bin\inpaload c:\users\rjahl\downloads\gke211kwp_808.ipo

If you want to add the script to the E85 menu, copy the GKE211KWP_808.IPO file to the SGDAT folder and then edit the E85.ENG file in the CFGDAT folder.

In the [ROOT_GETRIEBE] section of the E85.ENG file, add two lines similar to the following:

[ROOT_GETRIEBE] DESCRIPTION=Transmission
ENTRY=,,ENTRY=    GS19,Gearbox / Automatic GS19,
ENTRY=   gsds2,GS 8.xx / GS 20,
ENTRY=,,
ENTRY=    gs30,Sequential Gearbox SSG,
ENTRY=,,

ENTRY=    GKE211KWP_808,GS19D Ancillary Diagnostics,


bmw-inpa-e85-2

Alternatively, you could add a shortcut to the Windows desktop which runs INPALOAD.EXE and calls the custom script.



OK, done and working.
